19/02 - Apache cassandra v4.0

1 . Apache Cassandra v4.0 Cassandra Meetup in Tokyo February 2019 2019/2/21 DataStax Japan Yuki Morishita 1 © DataStax, All Rights Reserved. Confidential 

2 . Who am I? Yuki Morishita (yuki@datastax.com) – Principal Architect at DataStax Japan – Apache Cassandra committer 2 © DataStax, All Rights Reserved. Confidential 

3 . Apache Cassandra v4.0!!! 3 © DataStax, All Rights Reserved. Confidential 

4 . Apache Cassandra v4.0 • Been working for 1.5 years after 3.11.0 release • Feature freeze on September 1, 2018 • No fixed release date • See NEWS.TXT for upgrade instruction – No direct upgrade from pre-3.0 versions 4 © DataStax, All Rights Reserved. Confidential 

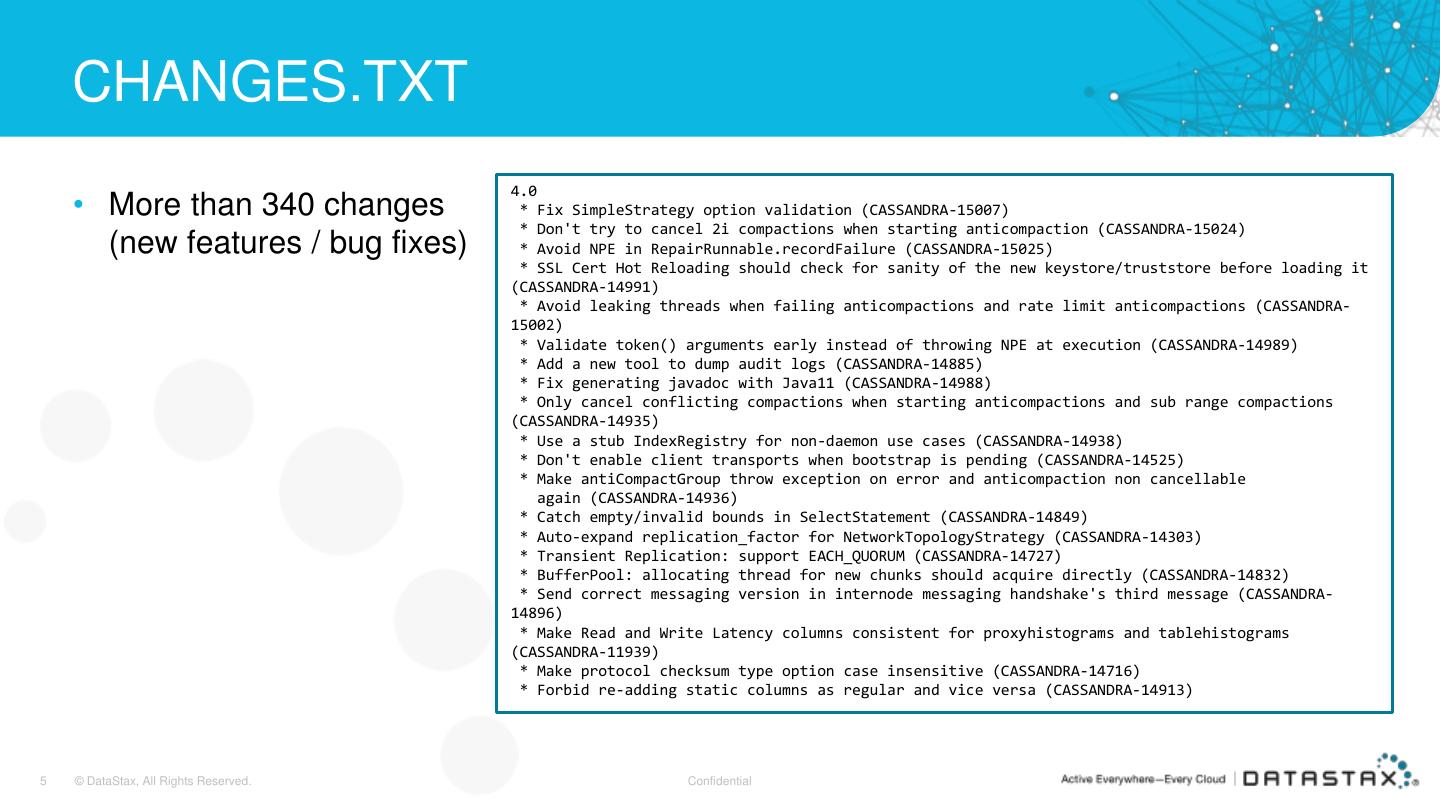

5 . CHANGES.TXT 4.0 • More than 340 changes * Fix SimpleStrategy option validation (CASSANDRA-15007) * Don't try to cancel 2i compactions when starting anticompaction (CASSANDRA-15024) (new features / bug fixes) * Avoid NPE in RepairRunnable.recordFailure (CASSANDRA-15025) * SSL Cert Hot Reloading should check for sanity of the new keystore/truststore before loading it (CASSANDRA-14991) * Avoid leaking threads when failing anticompactions and rate limit anticompactions (CASSANDRA- 15002) * Validate token() arguments early instead of throwing NPE at execution (CASSANDRA-14989) * Add a new tool to dump audit logs (CASSANDRA-14885) * Fix generating javadoc with Java11 (CASSANDRA-14988) * Only cancel conflicting compactions when starting anticompactions and sub range compactions (CASSANDRA-14935) * Use a stub IndexRegistry for non-daemon use cases (CASSANDRA-14938) * Don't enable client transports when bootstrap is pending (CASSANDRA-14525) * Make antiCompactGroup throw exception on error and anticompaction non cancellable again (CASSANDRA-14936) * Catch empty/invalid bounds in SelectStatement (CASSANDRA-14849) * Auto-expand replication_factor for NetworkTopologyStrategy (CASSANDRA-14303) * Transient Replication: support EACH_QUORUM (CASSANDRA-14727) * BufferPool: allocating thread for new chunks should acquire directly (CASSANDRA-14832) * Send correct messaging version in internode messaging handshake's third message (CASSANDRA- 14896) * Make Read and Write Latency columns consistent for proxyhistograms and tablehistograms (CASSANDRA-11939) * Make protocol checksum type option case insensitive (CASSANDRA-14716) * Forbid re-adding static columns as regular and vice versa (CASSANDRA-14913) 5 © DataStax, All Rights Reserved. Confidential 

6 . New Features • Virtual Tables • Transient Replication • Audit logging • Full query logging • Zero-copy SSTable streaming 6 © DataStax, All Rights Reserved. Confidential 

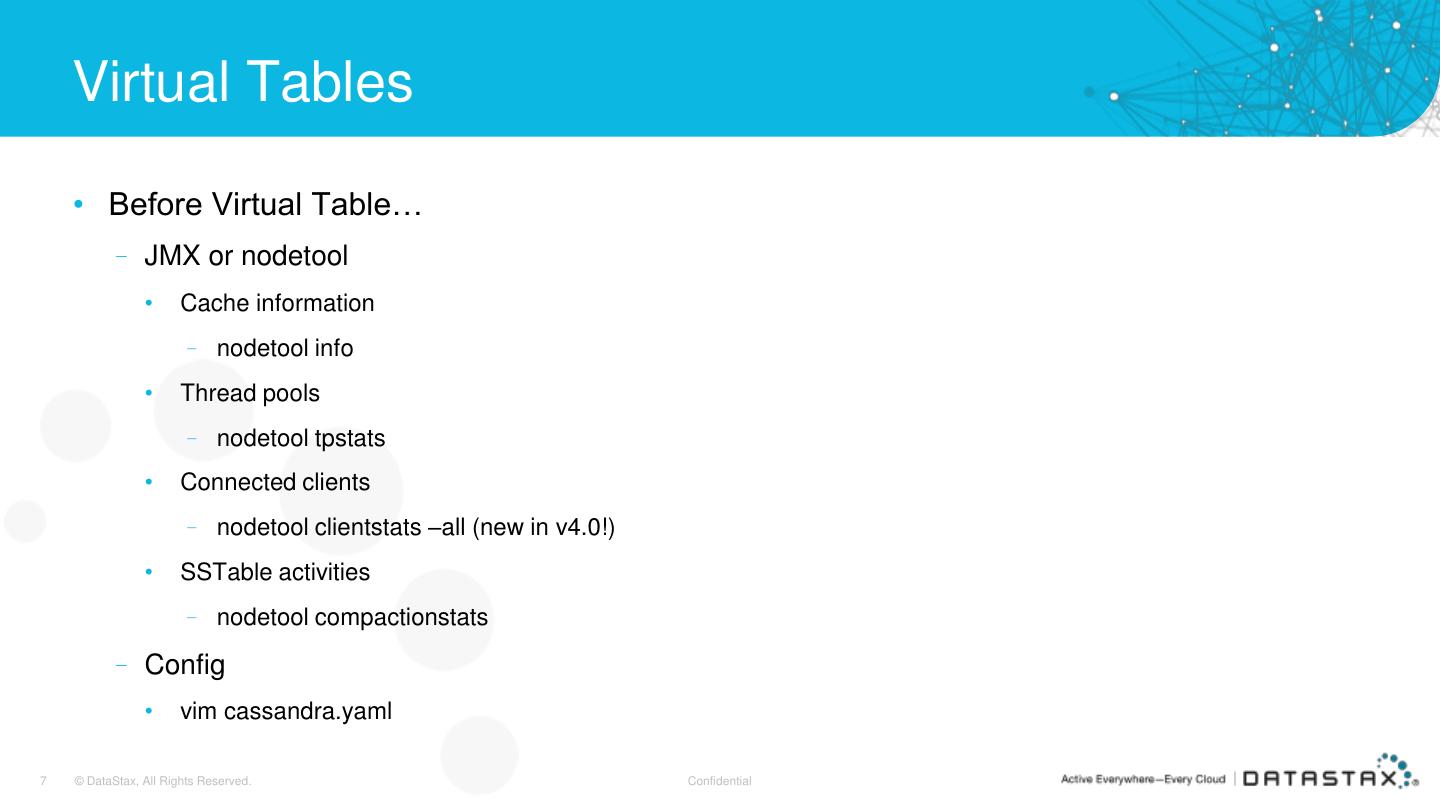

7 . Virtual Tables • Before Virtual Table… – JMX or nodetool • Cache information – nodetool info • Thread pools – nodetool tpstats • Connected clients – nodetool clientstats –all (new in v4.0!) • SSTable activities – nodetool compactionstats – Config • vim cassandra.yaml 7 © DataStax, All Rights Reserved. Confidential 

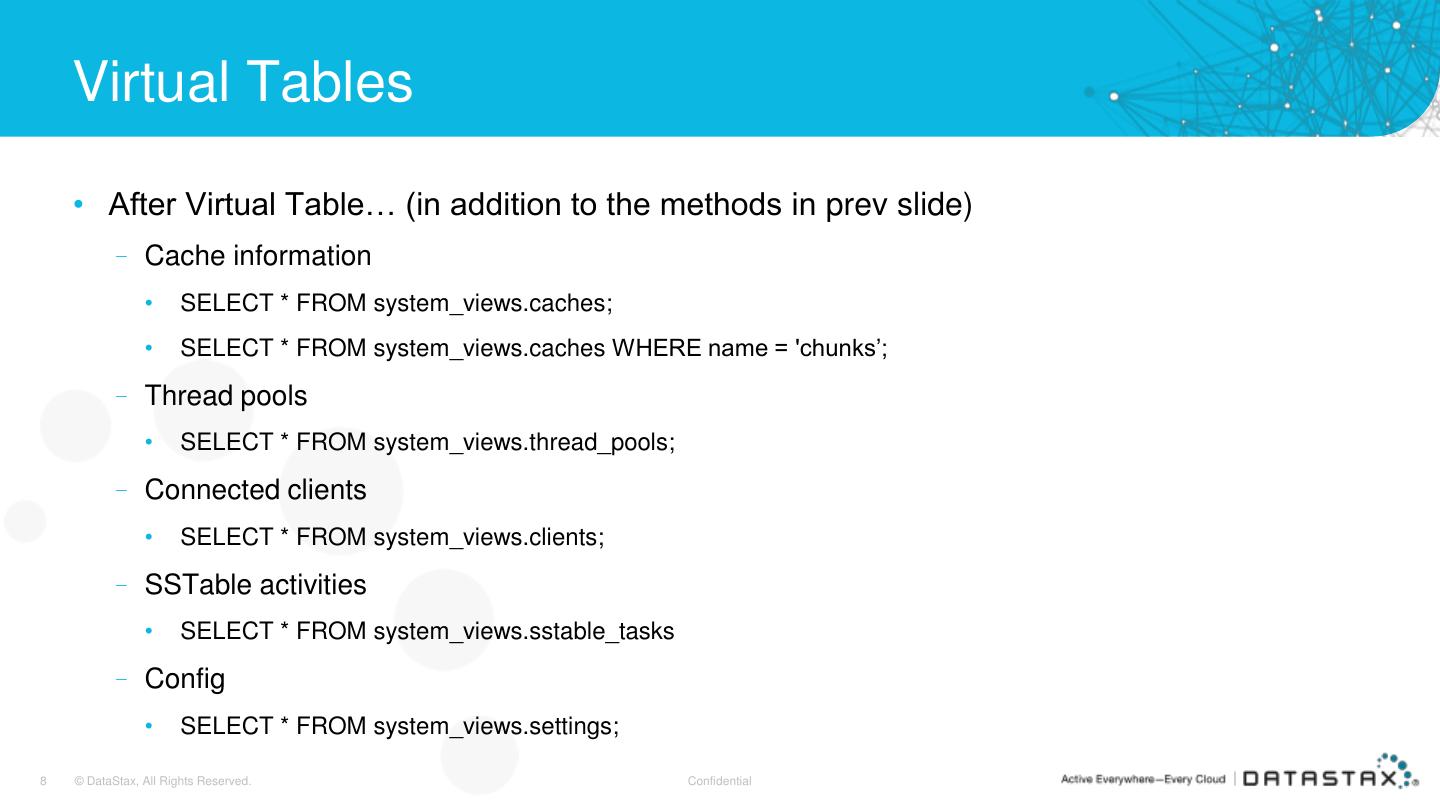

8 . Virtual Tables • After Virtual Table… (in addition to the methods in prev slide) – Cache information • SELECT * FROM system_views.caches; • SELECT * FROM system_views.caches WHERE name = 'chunks’; – Thread pools • SELECT * FROM system_views.thread_pools; – Connected clients • SELECT * FROM system_views.clients; – SSTable activities • SELECT * FROM system_views.sstable_tasks – Config • SELECT * FROM system_views.settings; 8 © DataStax, All Rights Reserved. Confidential 

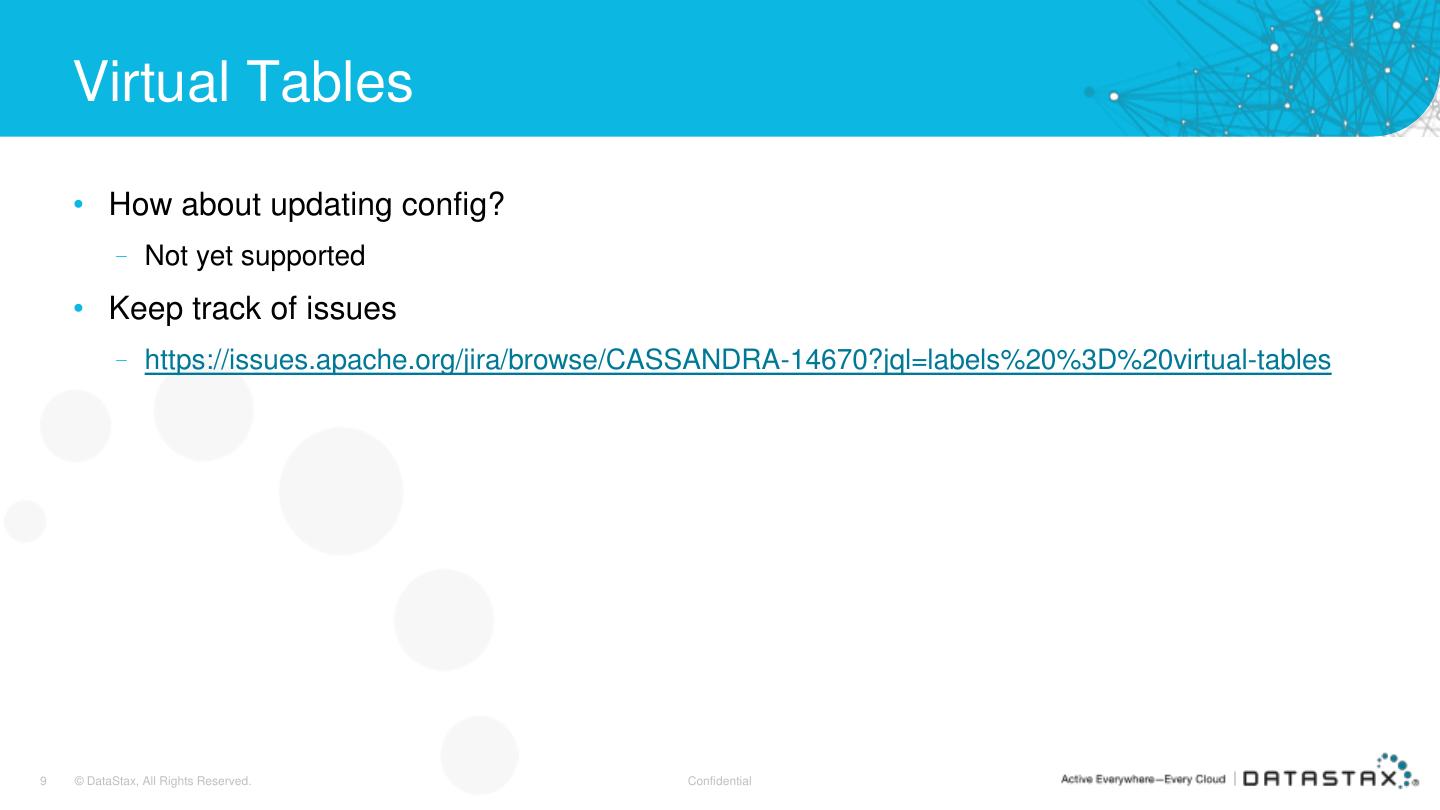

9 . Virtual Tables • How about updating config? – Not yet supported • Keep track of issues – https://issues.apache.org/jira/browse/CASSANDRA-14670?jql=labels%20%3D%20virtual-tables 9 © DataStax, All Rights Reserved. Confidential 

10 . Transient Replication • Save disk space, CPU cycle and IO with temporary copy (transient replica) • Temporary copy is replicated with incremental repair, and removed • Experimental feature in v4.0 • Unsupported features – Monotonic read (read with blocking read repair) – Logged batch – LWT – Counters – Secondary Index / Materialized view (never support) 10 © DataStax, All Rights Reserved. Confidential 

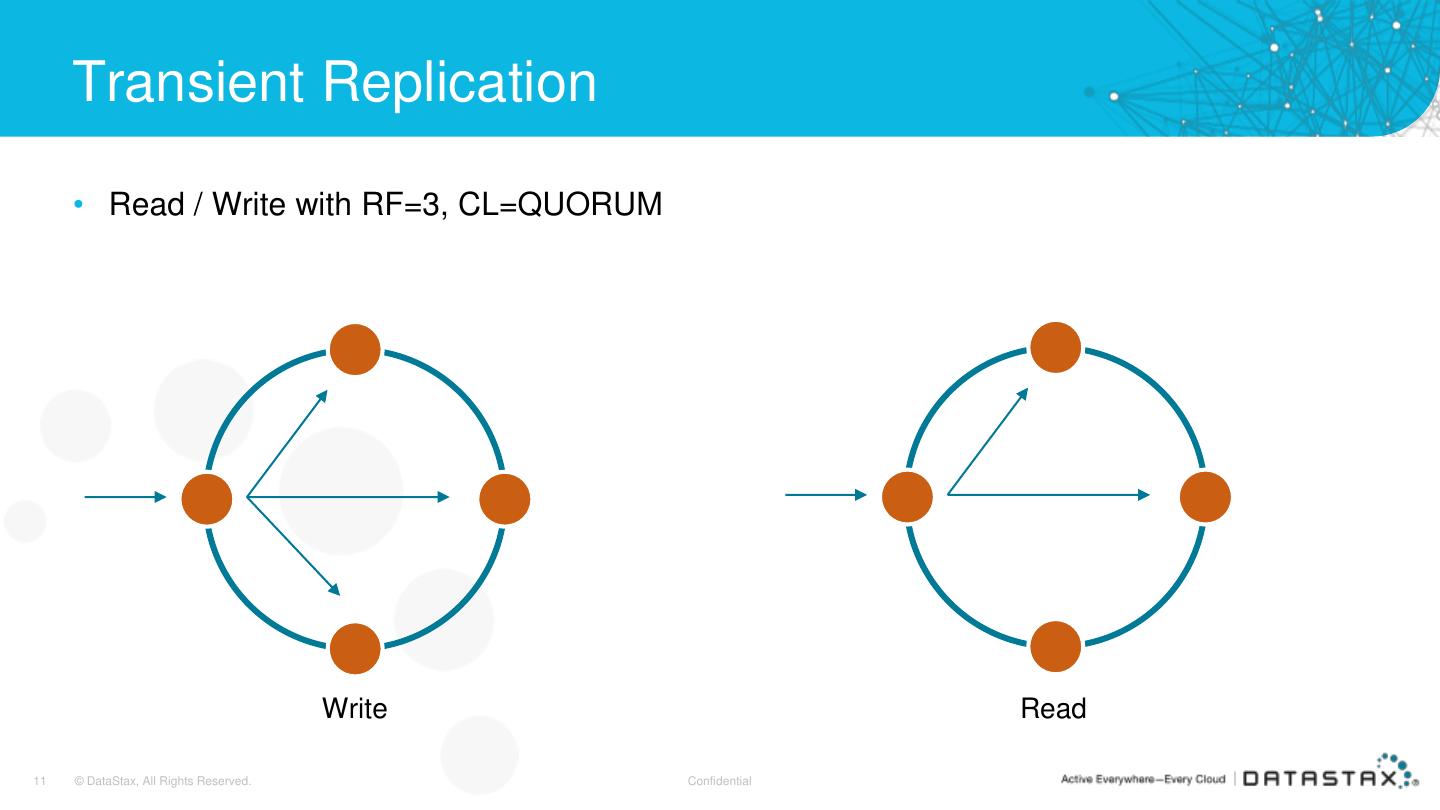

11 . Transient Replication • Read / Write with RF=3, CL=QUORUM Write Read 11 © DataStax, All Rights Reserved. Confidential 

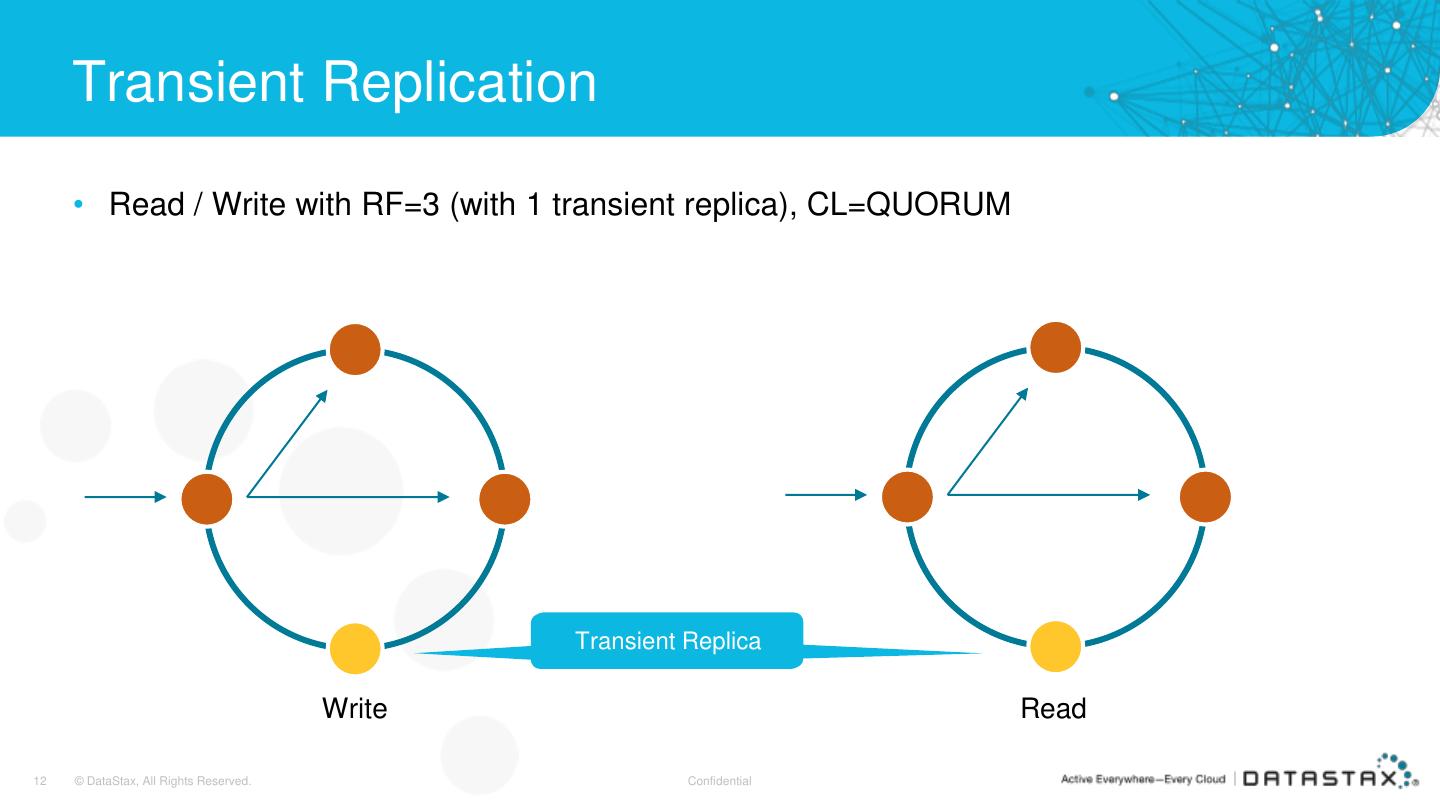

12 . Transient Replication • Read / Write with RF=3 (with 1 transient replica), CL=QUORUM Transient Replica Transient Replica Write Read 12 © DataStax, All Rights Reserved. Confidential 

13 . Transient Replication • Read / Write with RF=3 (with 1 transient replica), CL=QUORUM • When one node is down Transient Replica Transient Replica Write Read 13 © DataStax, All Rights Reserved. Confidential 

14 . Transient Replication • Temporary copy is replicated and removed after incremental repair Incremental repair Transient Replica 14 © DataStax, All Rights Reserved. Confidential 

15 . Transient Replication • Temporary copy is replicated and removed after incremental repair Transient Replica 15 © DataStax, All Rights Reserved. Confidential 

16 . Transient Replication CREATE KEYSPACE ks WITH replication = { 'class': 'NetworkTopologyStrategy', 'replication_factor': '3/1' }; 16 © DataStax, All Rights Reserved. Confidential 

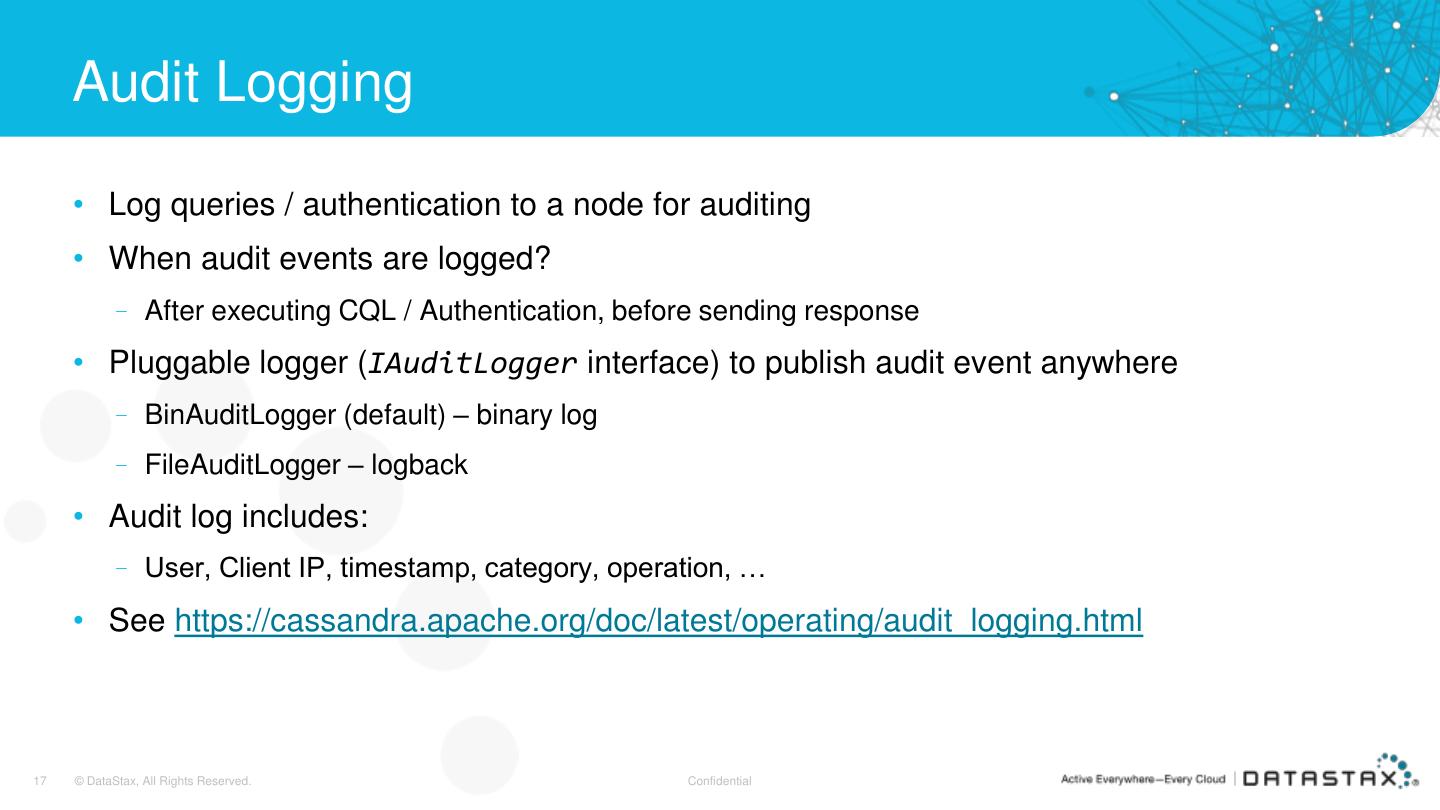

17 . Audit Logging • Log queries / authentication to a node for auditing • When audit events are logged? – After executing CQL / Authentication, before sending response • Pluggable logger (IAuditLogger interface) to publish audit event anywhere – BinAuditLogger (default) – binary log – FileAuditLogger – logback • Audit log includes: – User, Client IP, timestamp, category, operation, … • See https://cassandra.apache.org/doc/latest/operating/audit_logging.html 17 © DataStax, All Rights Reserved. Confidential 

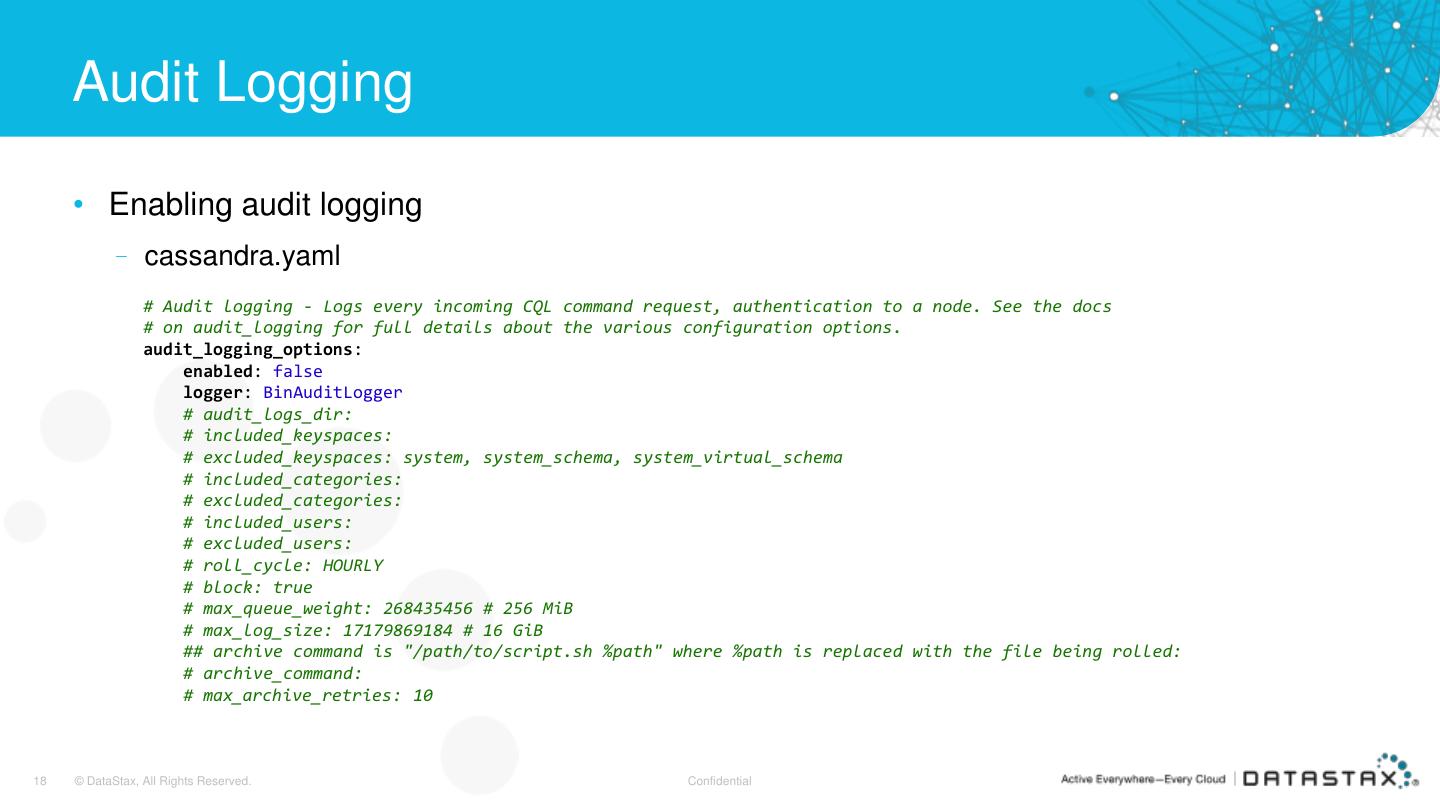

18 . Audit Logging • Enabling audit logging – cassandra.yaml # Audit logging - Logs every incoming CQL command request, authentication to a node. See the docs # on audit_logging for full details about the various configuration options. audit_logging_options: enabled: false logger: BinAuditLogger # audit_logs_dir: # included_keyspaces: # excluded_keyspaces: system, system_schema, system_virtual_schema # included_categories: # excluded_categories: # included_users: # excluded_users: # roll_cycle: HOURLY # block: true # max_queue_weight: 268435456 # 256 MiB # max_log_size: 17179869184 # 16 GiB ## archive command is "/path/to/script.sh %path" where %path is replaced with the file being rolled: # archive_command: # max_archive_retries: 10 18 © DataStax, All Rights Reserved. Confidential 

19 . Audit Logging • Enabling audit logging – nodetool enableauditlog • Can change the same settings using command line options – --included-keyspaces, --logger, etc. – nodetool disableauditlog 19 © DataStax, All Rights Reserved. Confidential 

20 . Audit Logging • New tool: auditlogviewer • auditlogviewer -f /var/log/cassandra/audit/ Type: AuditLog LogMessage: user:anonymous|host:172.17.0.2:7000|source:/127.0.0.1|port:49644|timestamp:1550558120912|type:USE_KEYSPACE|category:OTHER|ks:tesks|operation:use tesks ; Type: AuditLog LogMessage: user:anonymous|host:172.17.0.2:7000|source:/127.0.0.1|port:49644|timestamp:1550558120913|type:USE_KEYSPACE|category:OTHER|ks:tesks|operation:USE "tesks" Type: AuditLog LogMessage: user:anonymous|host:172.17.0.2:7000|source:/127.0.0.1|port:49644|timestamp:1550558139178|type:UPDATE|category:DML|ks:tesks|scope:test|operation: INSERT INTO tesks.test (key, val) VALUES ( 'a', currentTimestamp()); Type: AuditLog LogMessage: user:anonymous|host:172.17.0.2:7000|source:/127.0.0.1|port:49644|timestamp:1550558147633|type:SELECT|category:QUERY|ks:tesks|scope:test|operatio n:SELECT * FROM tesks.test 20 © DataStax, All Rights Reserved. Confidential 

21 . Full Query Logging • Enable workload recording, replay and compare result • Use case – Capture workload in production. Use it in dev environment to test in different Cassandra version. Compare result for correctness. Capture Replay Prod Dev Full Query Log 21 © DataStax, All Rights Reserved. Confidential 

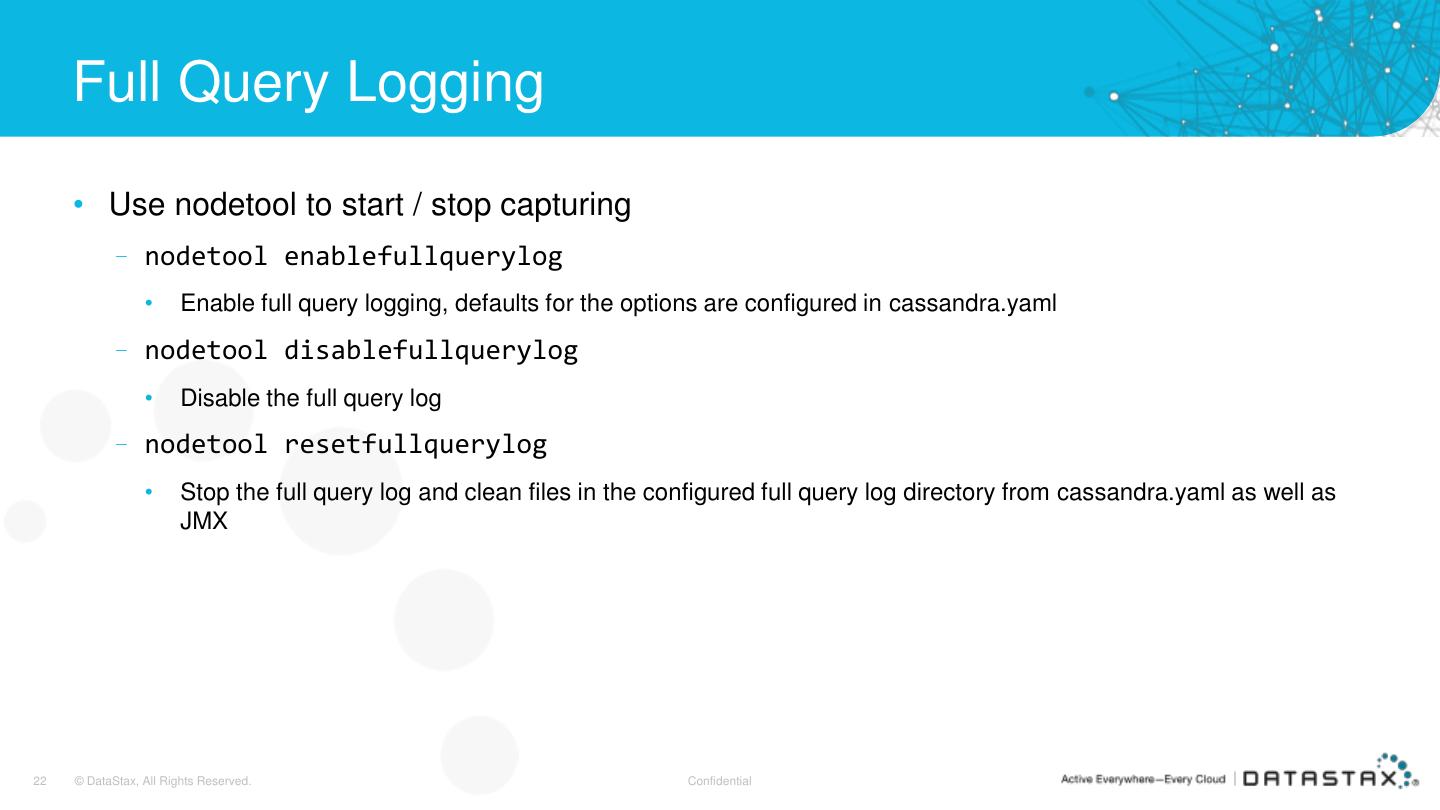

22 . Full Query Logging • Use nodetool to start / stop capturing – nodetool enablefullquerylog • Enable full query logging, defaults for the options are configured in cassandra.yaml – nodetool disablefullquerylog • Disable the full query log – nodetool resetfullquerylog • Stop the full query log and clean files in the configured full query log directory from cassandra.yaml as well as JMX 22 © DataStax, All Rights Reserved. Confidential 

23 . Full Query Logging • Use fqltool to replay and compare result – fqltool replay • Replay full query logs – fqltool compare • Compare result files generated by fqltool replay – fqltool dump • Dump the contents of a full query log 23 © DataStax, All Rights Reserved. Confidential 

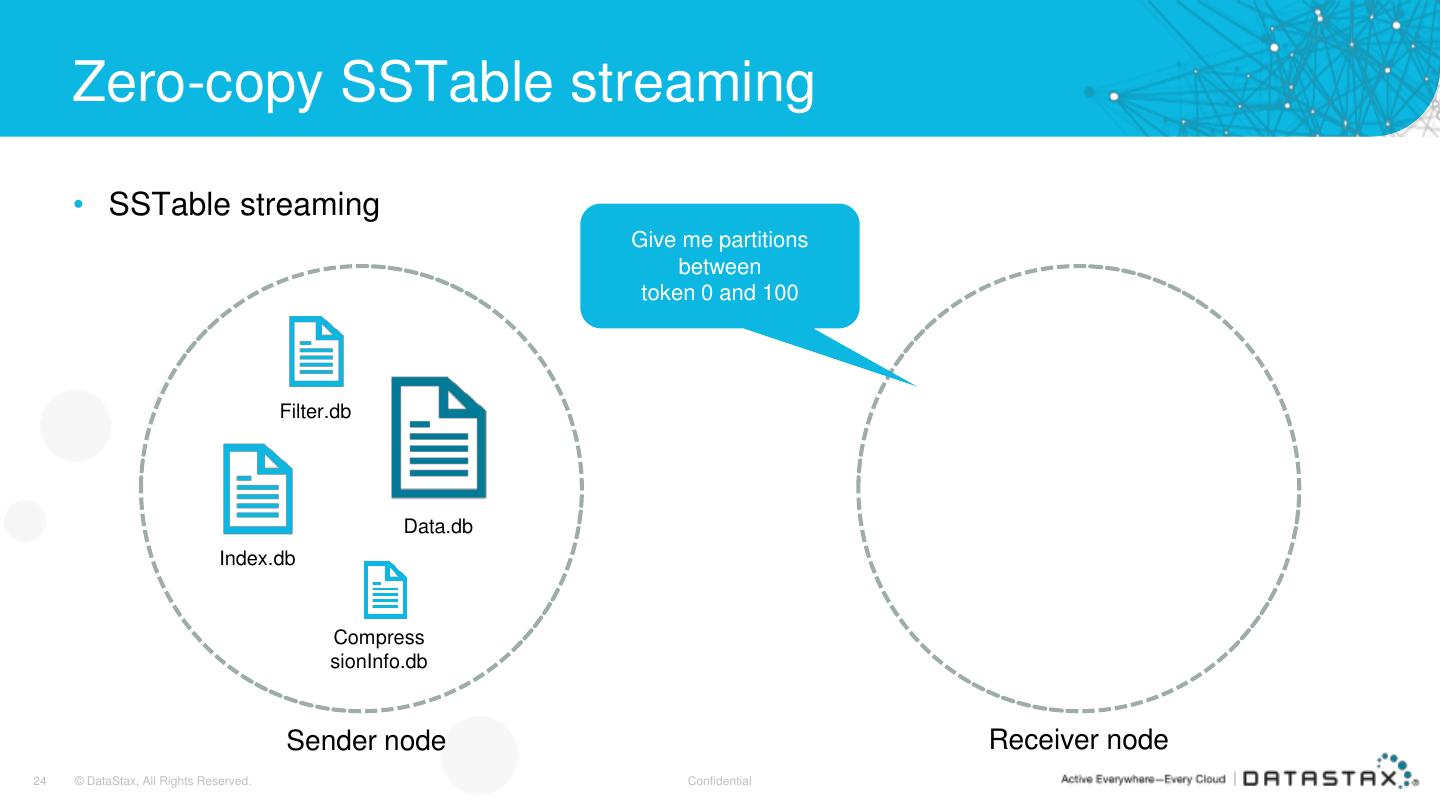

24 . Zero-copy SSTable streaming • SSTable streaming Give me partitions between token 0 and 100 Filter.db Data.db Index.db Compress sionInfo.db Sender node Receiver node 24 © DataStax, All Rights Reserved. Confidential 

25 . Zero-copy SSTable streaming • SSTable streaming Here are partitions between token 0 and 100 in this SSTable Filter.db Data.db Index.db Compress sionInfo.db Sender node Receiver node 25 © DataStax, All Rights Reserved. Confidential 

26 . Zero-copy SSTable streaming • SSTable streaming Here are partitions between token 0 and 100 in this SSTable Filter.db Data.db Index.db Compress sionInfo.db Sender node Receiver node 26 © DataStax, All Rights Reserved. Confidential 

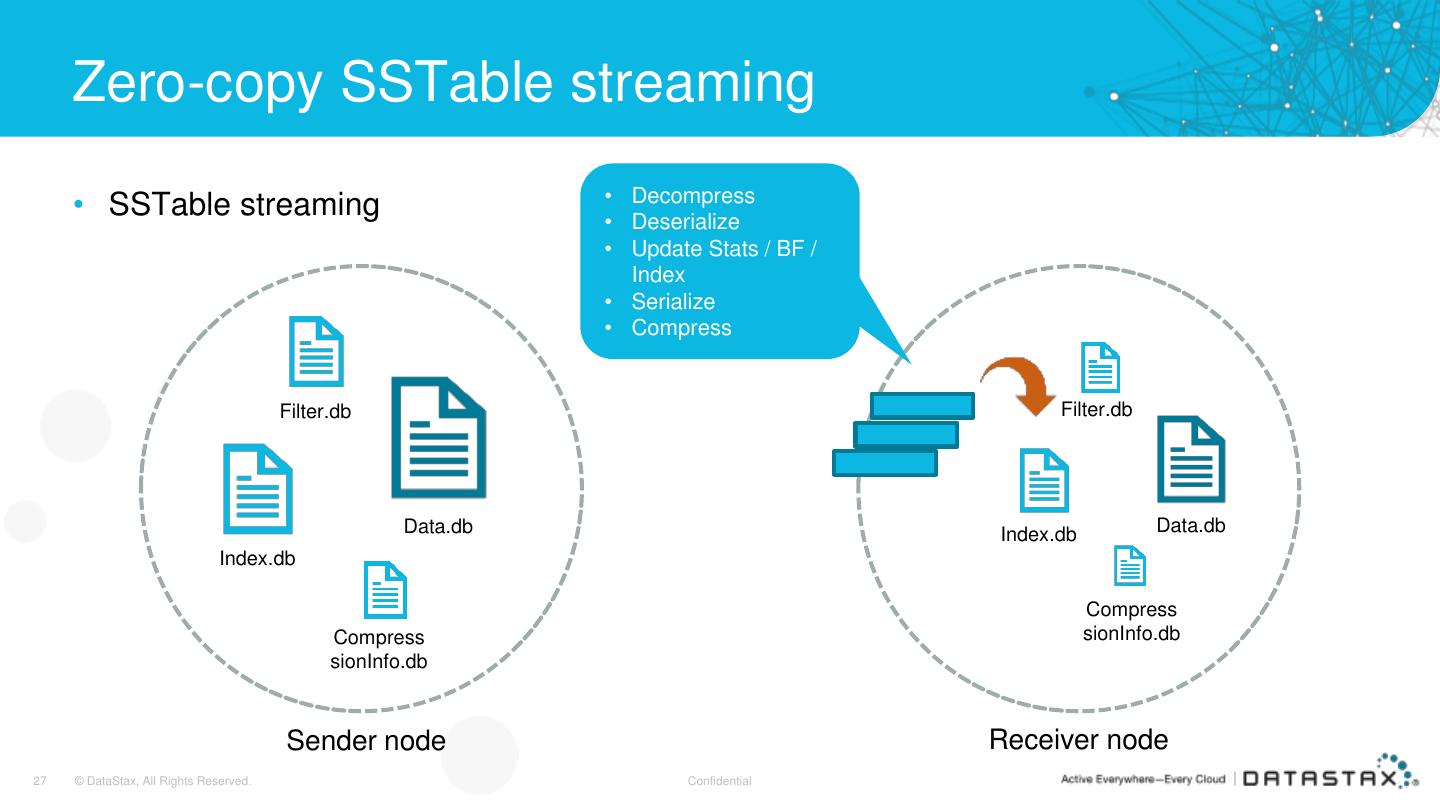

27 . Zero-copy SSTable streaming • Decompress • SSTable streaming • Deserialize • Update Stats / BF / Index • Serialize • Compress Filter.db Filter.db Data.db Index.db Data.db Index.db Compress Compress sionInfo.db sionInfo.db Sender node Receiver node 27 © DataStax, All Rights Reserved. Confidential 

28 . Zero-copy SSTable streaming • Zero-copy SSTable streaming Give me partitions between token 0 and 100 Filter.db Data.db Index.db Compress sionInfo.db Sender node Receiver node 28 © DataStax, All Rights Reserved. Confidential 

29 . Zero-copy SSTable streaming • Zero-copy SSTable streaming This SSTable contains partitions in token 0 and 100! Filter.db Data.db Index.db Compress sionInfo.db Sender node Receiver node 29 © DataStax, All Rights Reserved. Confidential
