1.Background This document explains the TPCH report of CarbonData(1.5.1 version) and Parquet on Spark 2.2.0 execution engine. Hardware CPU : Intel(R) Xeon(R) CPU E5-2690 v3 @ 2.60GHz - 48 CPU Memory : 378 GB DDR4 RAM HardDisk : 12 x 4 TB SATA 7200 RPM HDD Configurations Carbon Properties # Number of cores used while loading per executor, Used 12 cores while loading the data. carbon.number.of.cores.while.loading = 12 # Unsafe working memory per executor used during data loading. carbon.unsafe.working.memory.in.mb=5120

2.Spark Conf # Yarn overhead memory to facilitate offheap memory used by Spark and Carbon spark.yarn.executor.memoryOverhead=20480 Data Loading Spark Configurations # Number of cores used per executor executor-cores 20 # Number of executors used in cluster num-executors 3 # Total executor memory used per executor executor-memory 140G # Driver memory driver-memory 25G Query Spark Configurations # Number of cores used per executor executor-cores 5 # Number of executors used in cluster num-executors 18 # Total executor memory used per executor executor-memory 25G # Driver memory driver-memory 15G Compression Ratio The following chart depicts the compression ratio between Carbon and Parquet. Formula Compression Ratio = ((O - S)/S) * 100 O = Raw Data Size S = Store size (Parquet or Carbon)

3.Loading Performance The following chart depicts the loading performance between carbon and parquet. It is shown in MB per second per each node Query Performance The following chart depicts the performance of Carbon and Parquet. To have a fair comparison we have loaded Carbon with no sort option and Parquet loaded directly.

4.How it is tested Executed each query three times and taken best out of it in both Parquet and Carbon. Queries Parquet CarbonData Q1 15.483 16.5 Q2 19.093 18.2 Q3 46.572 45.7 Q4 281.816 200 Q5 80.961 83 Q6 4.057 4.9 Q7 87.079 87.1 Q8 82.554 82 Q9 115.4 115 Q10 33.414 29 Q11 20.449 15.6 Q12 19.364 21 Q13 43.458 36 Q14 10.469 8.1 Q15 18.668 15 Q16 479.648 460

5.Q17 117.525 120 Q18 627.828 707 Q19 17.046 18 Q20 93.473 82 Q21 1421.368 1316 Q22 75.739 63 Q23(Full Scan Query) 30.892 24.8 Scripts and data Data​​ ​Size​​ ​:​ ​500​​ ​GB​​ ​(Generated using ​https://github.com/electrum/tpch-dbgen​) Parquet Create Table Script CREATE TABLE LINEITEM (L_ORDERKEY BIGINT,L_PARTKEY BIGINT,L_SUPPKEY BIGINT, L_LINENUMBER INTEGER,L_QUANTITY double,L_EXTENDEDPRICE double,L_DISCOUNT double,L_TAX double,L_RETURNFLAG string,L_LINESTATUS string,L_SHIPDATE DATE,L_COMMITDATE DATE,L_RECEIPTDATE DATE,L_SHIPINSTRUCT string,L_SHIPMODE string,L_COMMENT string) using parquet options('parquet.compression'='snappy'); CREATE TABLE IF NOT EXISTS customer ( c_custkey BIGINT, c_name STRING, c_address STRING, c_nationkey INT, c_phone STRING, c_acctbal double, c_mktsegment STRING, c_comment STRING) using parquet options('parquet.compression'='snappy'); CREATE TABLE IF NOT EXISTS nation ( n_nationkey INT, n_name STRING, n_regionkey INT, n_comment STRING) using parquet options('parquet.compression'='snappy'); CREATE TABLE IF NOT EXISTS orders ( o_orderkey BIGINT, o_custkey BIGINT, o_orderstatus STRING, o_totalprice double, o_orderdate date, o_orderpriority STRING, o_clerk STRING, o_shippriority INT, o_comment STRING) using parquet options('parquet.compression'='snappy'); CREATE TABLE IF NOT EXISTS part ( p_partkey BIGINT, p_name STRING, p_mfgr STRING, p_brand STRING, p_type STRING, p_size INT, p_container STRING, p_retailprice double, p_comment STRING ) using parquet options('parquet.compression'='snappy'); CREATE TABLE IF NOT EXISTS partsupp ( ps_partkey BIGINT, ps_suppkey BIGINT, ps_availqty INT, ps_supplycost double, ps_comment STRING ) using parquet options('parquet.compression'='snappy');

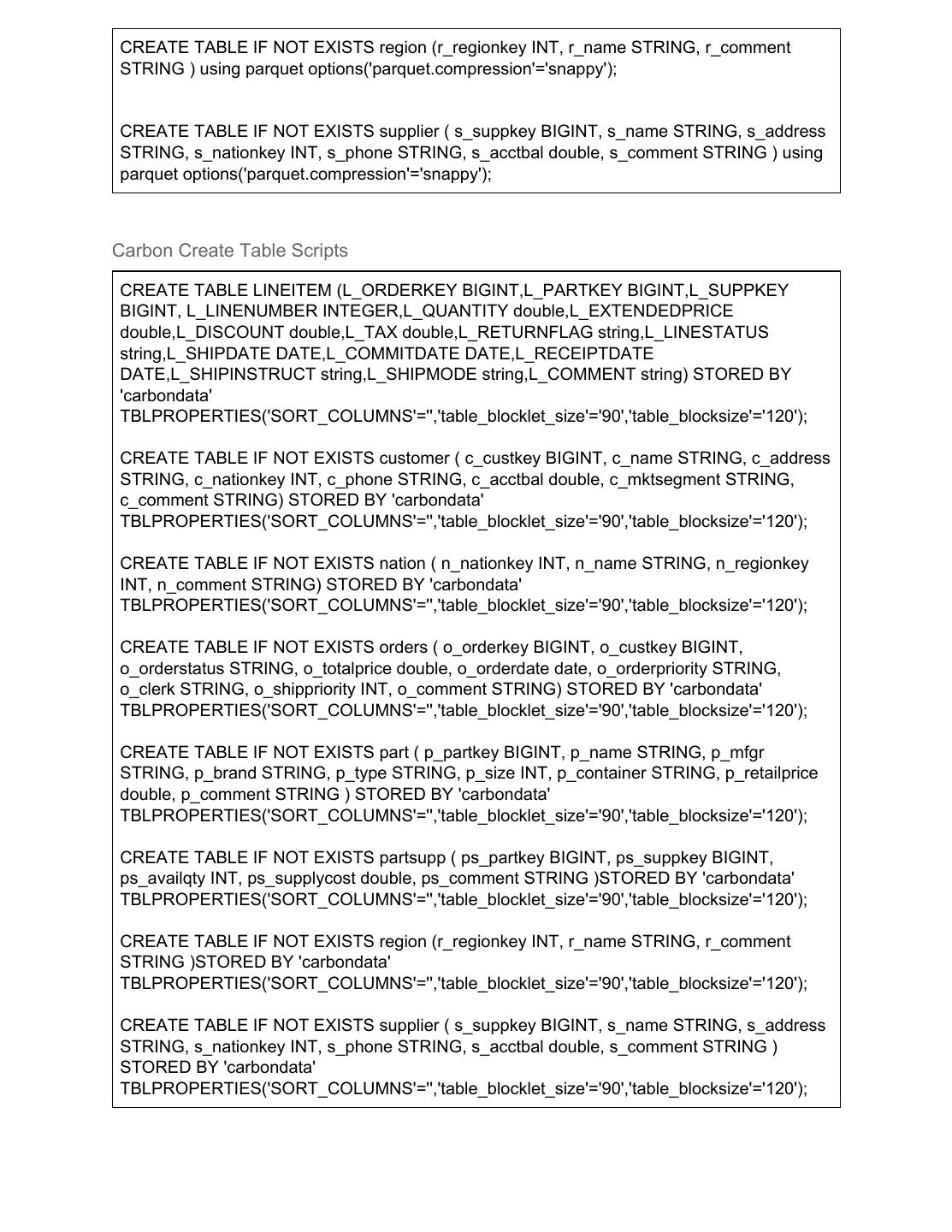

6.CREATE TABLE IF NOT EXISTS region (r_regionkey INT, r_name STRING, r_comment STRING ) using parquet options('parquet.compression'='snappy'); CREATE TABLE IF NOT EXISTS supplier ( s_suppkey BIGINT, s_name STRING, s_address STRING, s_nationkey INT, s_phone STRING, s_acctbal double, s_comment STRING ) using parquet options('parquet.compression'='snappy'); Carbon Create Table Scripts CREATE TABLE LINEITEM (L_ORDERKEY BIGINT,L_PARTKEY BIGINT,L_SUPPKEY BIGINT, L_LINENUMBER INTEGER,L_QUANTITY double,L_EXTENDEDPRICE double,L_DISCOUNT double,L_TAX double,L_RETURNFLAG string,L_LINESTATUS string,L_SHIPDATE DATE,L_COMMITDATE DATE,L_RECEIPTDATE DATE,L_SHIPINSTRUCT string,L_SHIPMODE string,L_COMMENT string) STORED BY 'carbondata' TBLPROPERTIES('SORT_COLUMNS'='','table_blocklet_size'='90','table_blocksize'='120'); CREATE TABLE IF NOT EXISTS customer ( c_custkey BIGINT, c_name STRING, c_address STRING, c_nationkey INT, c_phone STRING, c_acctbal double, c_mktsegment STRING, c_comment STRING) STORED BY 'carbondata' TBLPROPERTIES('SORT_COLUMNS'='','table_blocklet_size'='90','table_blocksize'='120'); CREATE TABLE IF NOT EXISTS nation ( n_nationkey INT, n_name STRING, n_regionkey INT, n_comment STRING) STORED BY 'carbondata' TBLPROPERTIES('SORT_COLUMNS'='','table_blocklet_size'='90','table_blocksize'='120'); CREATE TABLE IF NOT EXISTS orders ( o_orderkey BIGINT, o_custkey BIGINT, o_orderstatus STRING, o_totalprice double, o_orderdate date, o_orderpriority STRING, o_clerk STRING, o_shippriority INT, o_comment STRING) STORED BY 'carbondata' TBLPROPERTIES('SORT_COLUMNS'='','table_blocklet_size'='90','table_blocksize'='120'); CREATE TABLE IF NOT EXISTS part ( p_partkey BIGINT, p_name STRING, p_mfgr STRING, p_brand STRING, p_type STRING, p_size INT, p_container STRING, p_retailprice double, p_comment STRING ) STORED BY 'carbondata' TBLPROPERTIES('SORT_COLUMNS'='','table_blocklet_size'='90','table_blocksize'='120'); CREATE TABLE IF NOT EXISTS partsupp ( ps_partkey BIGINT, ps_suppkey BIGINT, ps_availqty INT, ps_supplycost double, ps_comment STRING )STORED BY 'carbondata' TBLPROPERTIES('SORT_COLUMNS'='','table_blocklet_size'='90','table_blocksize'='120'); CREATE TABLE IF NOT EXISTS region (r_regionkey INT, r_name STRING, r_comment STRING )STORED BY 'carbondata' TBLPROPERTIES('SORT_COLUMNS'='','table_blocklet_size'='90','table_blocksize'='120'); CREATE TABLE IF NOT EXISTS supplier ( s_suppkey BIGINT, s_name STRING, s_address STRING, s_nationkey INT, s_phone STRING, s_acctbal double, s_comment STRING ) STORED BY 'carbondata' TBLPROPERTIES('SORT_COLUMNS'='','table_blocklet_size'='90','table_blocksize'='120');

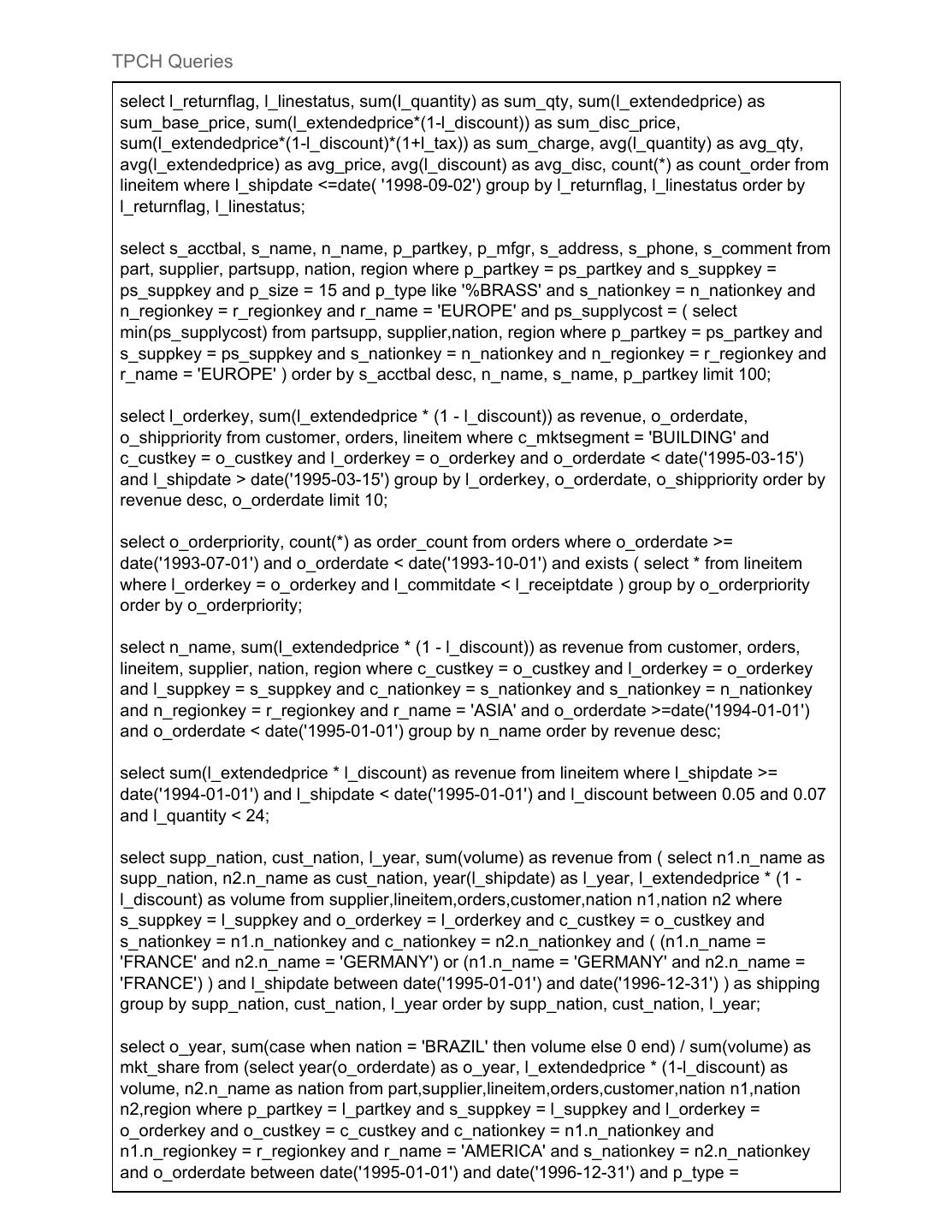

7.TPCH Queries select l_returnflag, l_linestatus, sum(l_quantity) as sum_qty, sum(l_extendedprice) as sum_base_price, sum(l_extendedprice*(1-l_discount)) as sum_disc_price, sum(l_extendedprice*(1-l_discount)*(1+l_tax)) as sum_charge, avg(l_quantity) as avg_qty, avg(l_extendedprice) as avg_price, avg(l_discount) as avg_disc, count(*) as count_order from lineitem where l_shipdate <=date( '1998-09-02') group by l_returnflag, l_linestatus order by l_returnflag, l_linestatus; select s_acctbal, s_name, n_name, p_partkey, p_mfgr, s_address, s_phone, s_comment from part, supplier, partsupp, nation, region where p_partkey = ps_partkey and s_suppkey = ps_suppkey and p_size = 15 and p_type like '%BRASS' and s_nationkey = n_nationkey and n_regionkey = r_regionkey and r_name = 'EUROPE' and ps_supplycost = ( select min(ps_supplycost) from partsupp, supplier,nation, region where p_partkey = ps_partkey and s_suppkey = ps_suppkey and s_nationkey = n_nationkey and n_regionkey = r_regionkey and r_name = 'EUROPE' ) order by s_acctbal desc, n_name, s_name, p_partkey limit 100; select l_orderkey, sum(l_extendedprice * (1 - l_discount)) as revenue, o_orderdate, o_shippriority from customer, orders, lineitem where c_mktsegment = 'BUILDING' and c_custkey = o_custkey and l_orderkey = o_orderkey and o_orderdate < date('1995-03-15') and l_shipdate > date('1995-03-15') group by l_orderkey, o_orderdate, o_shippriority order by revenue desc, o_orderdate limit 10; select o_orderpriority, count(*) as order_count from orders where o_orderdate >= date('1993-07-01') and o_orderdate < date('1993-10-01') and exists ( select * from lineitem where l_orderkey = o_orderkey and l_commitdate < l_receiptdate ) group by o_orderpriority order by o_orderpriority; select n_name, sum(l_extendedprice * (1 - l_discount)) as revenue from customer, orders, lineitem, supplier, nation, region where c_custkey = o_custkey and l_orderkey = o_orderkey and l_suppkey = s_suppkey and c_nationkey = s_nationkey and s_nationkey = n_nationkey and n_regionkey = r_regionkey and r_name = 'ASIA' and o_orderdate >=date('1994-01-01') and o_orderdate < date('1995-01-01') group by n_name order by revenue desc; select sum(l_extendedprice * l_discount) as revenue from lineitem where l_shipdate >= date('1994-01-01') and l_shipdate < date('1995-01-01') and l_discount between 0.05 and 0.07 and l_quantity < 24; select supp_nation, cust_nation, l_year, sum(volume) as revenue from ( select n1.n_name as supp_nation, n2.n_name as cust_nation, year(l_shipdate) as l_year, l_extendedprice * (1 - l_discount) as volume from supplier,lineitem,orders,customer,nation n1,nation n2 where s_suppkey = l_suppkey and o_orderkey = l_orderkey and c_custkey = o_custkey and s_nationkey = n1.n_nationkey and c_nationkey = n2.n_nationkey and ( (n1.n_name = 'FRANCE' and n2.n_name = 'GERMANY') or (n1.n_name = 'GERMANY' and n2.n_name = 'FRANCE') ) and l_shipdate between date('1995-01-01') and date('1996-12-31') ) as shipping group by supp_nation, cust_nation, l_year order by supp_nation, cust_nation, l_year; select o_year, sum(case when nation = 'BRAZIL' then volume else 0 end) / sum(volume) as mkt_share from (select year(o_orderdate) as o_year, l_extendedprice * (1-l_discount) as volume, n2.n_name as nation from part,supplier,lineitem,orders,customer,nation n1,nation n2,region where p_partkey = l_partkey and s_suppkey = l_suppkey and l_orderkey = o_orderkey and o_custkey = c_custkey and c_nationkey = n1.n_nationkey and n1.n_regionkey = r_regionkey and r_name = 'AMERICA' and s_nationkey = n2.n_nationkey and o_orderdate between date('1995-01-01') and date('1996-12-31') and p_type =

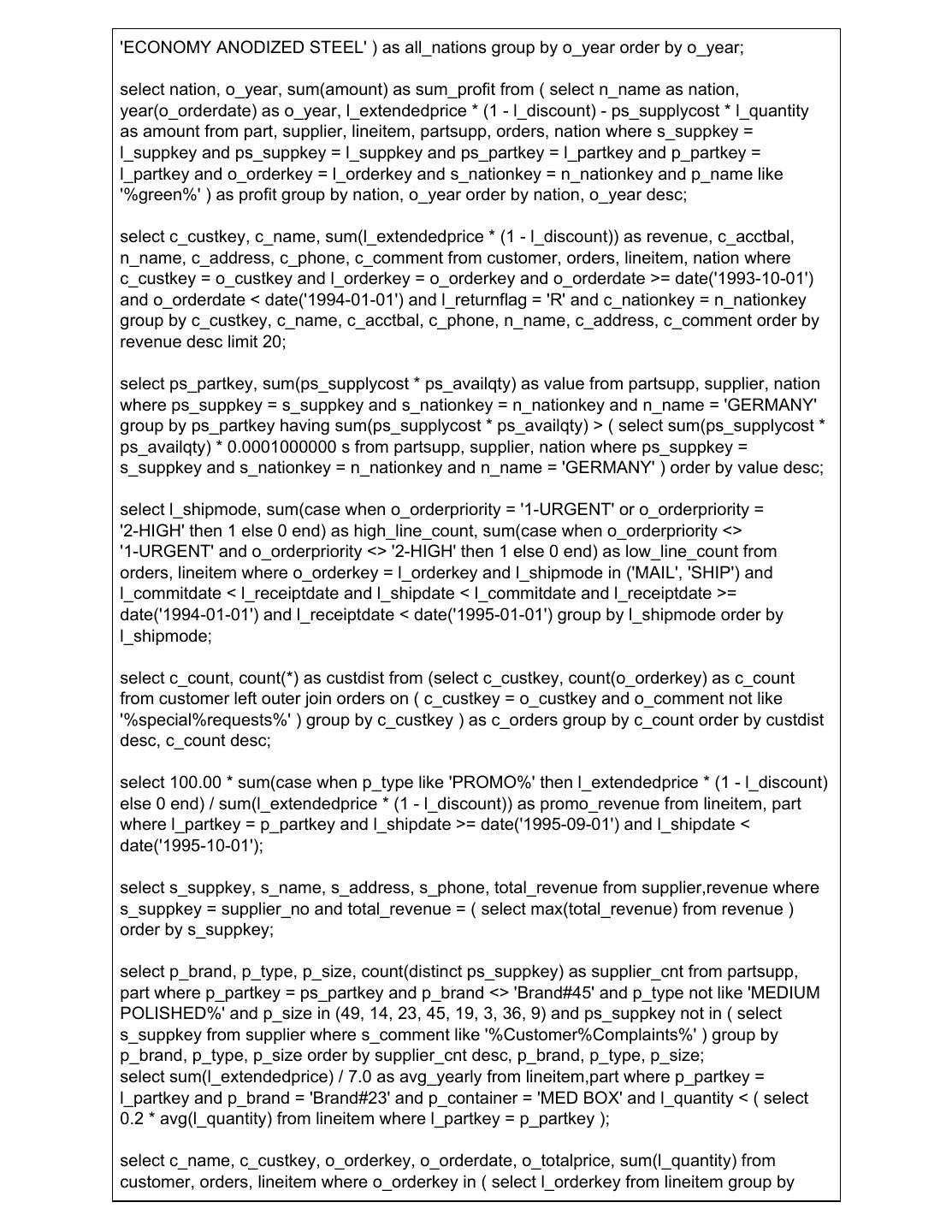

8.'ECONOMY ANODIZED STEEL' ) as all_nations group by o_year order by o_year; select nation, o_year, sum(amount) as sum_profit from ( select n_name as nation, year(o_orderdate) as o_year, l_extendedprice * (1 - l_discount) - ps_supplycost * l_quantity as amount from part, supplier, lineitem, partsupp, orders, nation where s_suppkey = l_suppkey and ps_suppkey = l_suppkey and ps_partkey = l_partkey and p_partkey = l_partkey and o_orderkey = l_orderkey and s_nationkey = n_nationkey and p_name like '%green%' ) as profit group by nation, o_year order by nation, o_year desc; select c_custkey, c_name, sum(l_extendedprice * (1 - l_discount)) as revenue, c_acctbal, n_name, c_address, c_phone, c_comment from customer, orders, lineitem, nation where c_custkey = o_custkey and l_orderkey = o_orderkey and o_orderdate >= date('1993-10-01') and o_orderdate < date('1994-01-01') and l_returnflag = 'R' and c_nationkey = n_nationkey group by c_custkey, c_name, c_acctbal, c_phone, n_name, c_address, c_comment order by revenue desc limit 20; select ps_partkey, sum(ps_supplycost * ps_availqty) as value from partsupp, supplier, nation where ps_suppkey = s_suppkey and s_nationkey = n_nationkey and n_name = 'GERMANY' group by ps_partkey having sum(ps_supplycost * ps_availqty) > ( select sum(ps_supplycost * ps_availqty) * 0.0001000000 s from partsupp, supplier, nation where ps_suppkey = s_suppkey and s_nationkey = n_nationkey and n_name = 'GERMANY' ) order by value desc; select l_shipmode, sum(case when o_orderpriority = '1-URGENT' or o_orderpriority = '2-HIGH' then 1 else 0 end) as high_line_count, sum(case when o_orderpriority <> '1-URGENT' and o_orderpriority <> '2-HIGH' then 1 else 0 end) as low_line_count from orders, lineitem where o_orderkey = l_orderkey and l_shipmode in ('MAIL', 'SHIP') and l_commitdate < l_receiptdate and l_shipdate < l_commitdate and l_receiptdate >= date('1994-01-01') and l_receiptdate < date('1995-01-01') group by l_shipmode order by l_shipmode; select c_count, count(*) as custdist from (select c_custkey, count(o_orderkey) as c_count from customer left outer join orders on ( c_custkey = o_custkey and o_comment not like '%special%requests%' ) group by c_custkey ) as c_orders group by c_count order by custdist desc, c_count desc; select 100.00 * sum(case when p_type like 'PROMO%' then l_extendedprice * (1 - l_discount) else 0 end) / sum(l_extendedprice * (1 - l_discount)) as promo_revenue from lineitem, part where l_partkey = p_partkey and l_shipdate >= date('1995-09-01') and l_shipdate < date('1995-10-01'); select s_suppkey, s_name, s_address, s_phone, total_revenue from supplier,revenue where s_suppkey = supplier_no and total_revenue = ( select max(total_revenue) from revenue ) order by s_suppkey; select p_brand, p_type, p_size, count(distinct ps_suppkey) as supplier_cnt from partsupp, part where p_partkey = ps_partkey and p_brand <> 'Brand#45' and p_type not like 'MEDIUM POLISHED%' and p_size in (49, 14, 23, 45, 19, 3, 36, 9) and ps_suppkey not in ( select s_suppkey from supplier where s_comment like '%Customer%Complaints%' ) group by p_brand, p_type, p_size order by supplier_cnt desc, p_brand, p_type, p_size; select sum(l_extendedprice) / 7.0 as avg_yearly from lineitem,part where p_partkey = l_partkey and p_brand = 'Brand#23' and p_container = 'MED BOX' and l_quantity < ( select 0.2 * avg(l_quantity) from lineitem where l_partkey = p_partkey ); select c_name, c_custkey, o_orderkey, o_orderdate, o_totalprice, sum(l_quantity) from customer, orders, lineitem where o_orderkey in ( select l_orderkey from lineitem group by

9.l_orderkey having sum(l_quantity) > 300 ) and c_custkey = o_custkey and o_orderkey = l_orderkey group by c_name, c_custkey, o_orderkey, o_orderdate, o_totalprice order by o_totalprice desc, o_orderdate; select sum(l_extendedprice* (1 - l_discount)) as revenue from lineitem, part where ( p_partkey = l_partkey and p_brand = 'Brand#12' and p_container in ('SM CASE', 'SM BOX', 'SM PACK', 'SM PKG') and l_quantity >= 1 and l_quantity <= 1 + 10 and p_size between 1 and 5 and l_shipmode in ('AIR', 'AIR REG') and l_shipinstruct = 'DELIVER IN PERSON' ) or ( p_partkey = l_partkey and p_brand = 'Brand#23' and p_container in ('MED BAG', 'MED BOX', 'MED PKG', 'MED PACK') and l_quantity >= 10 and l_quantity <= 10 + 10 and p_size between 1 and 10 and l_shipmode in ('AIR', 'AIR REG') and l_shipinstruct = 'DELIVER IN PERSON' ) or ( p_partkey = l_partkey and p_brand = 'Brand#34' and p_container in ('LG CASE', 'LG BOX', 'LG PACK', 'LG PKG') and l_quantity >= 20 and l_quantity <= 20 + 10 and p_size between 1 and 15 and l_shipmode in ('AIR', 'AIR REG') and l_shipinstruct = 'DELIVER IN PERSON' ); select s_name, s_address from supplier, nation where s_suppkey in ( select ps_suppkey from partsupp where ps_partkey in ( select p_partkey from part where p_name like 'forest%' ) and ps_availqty > ( select 0.5 * sum(l_quantity) from lineitem where l_partkey = ps_partkey and l_suppkey = ps_suppkey and l_shipdate >= date('1994-01-01') and l_shipdate < date('1995-01-01') ) ) and s_nationkey = n_nationkey and n_name = 'CANADA' order by s_name; select s_name, count(*) as numwait from supplier, lineitem l1, orders, nation where s_suppkey = l1.l_suppkey and o_orderkey = l1.l_orderkey and o_orderstatus = 'F' and l1.l_receiptdate > l1.l_commitdate and exists ( select * from lineitem l2 where l2.l_orderkey = l1.l_orderkey and l2.l_suppkey <> l1.l_suppkey ) and not exists ( select * from lineitem l3 where l3.l_orderkey = l1.l_orderkey and l3.l_suppkey <> l1.l_suppkey and l3.l_receiptdate > l3.l_commitdate ) and s_nationkey = n_nationkey and n_name = 'SAUDI ARABIA' group by s_name order by numwait desc, s_name; select cntrycode, count(*) as numcust, sum(c_acctbal) as totacctbal from ( select substring(c_phone,1 ,2) as cntrycode, c_acctbal from customer where substring(c_phone ,1,2) in ('13','31','23','29','30','18','17') and c_acctbal > ( select avg(c_acctbal) from customer where c_acctbal > 0.00 and substring(c_phone,1,2) in ('13', '31', '23', '29', '30', '18', '17') ) and not exists ( select * from orders where o_custkey = c_custkey ) ) as custsale group by cntrycode order by cntrycode; select count(l_shipdate), count(l_shipinstruct), count(l_orderkey), count(l_suppkey), count(l_quantity), count(l_partkey), count(l_receiptdate), count(l_commitdate), count(l_comment), count(l_discount), count(l_linenumber), count(L_RETURNFLAG), count(L_LINESTATUS), count(l_shipmode) from lineitem;
