1 . Elastic Data Processing with Apache Pulsar and Apache Flink Kaixing Zhao, Apache Flink Committer Sijie Guo, Apache Pulsar Committer 2019-03-23 Hangzhou 

2 . Agenda • What is Apache Flink? • Flink use cases and ecosystem • Pulsar - Segmented Stream Architecture • Pulsar - Tiered Storage • Pulsar + Flink Integration 

3 .Pulsar == Segmented Streams 

4 .Batch - HDFS 

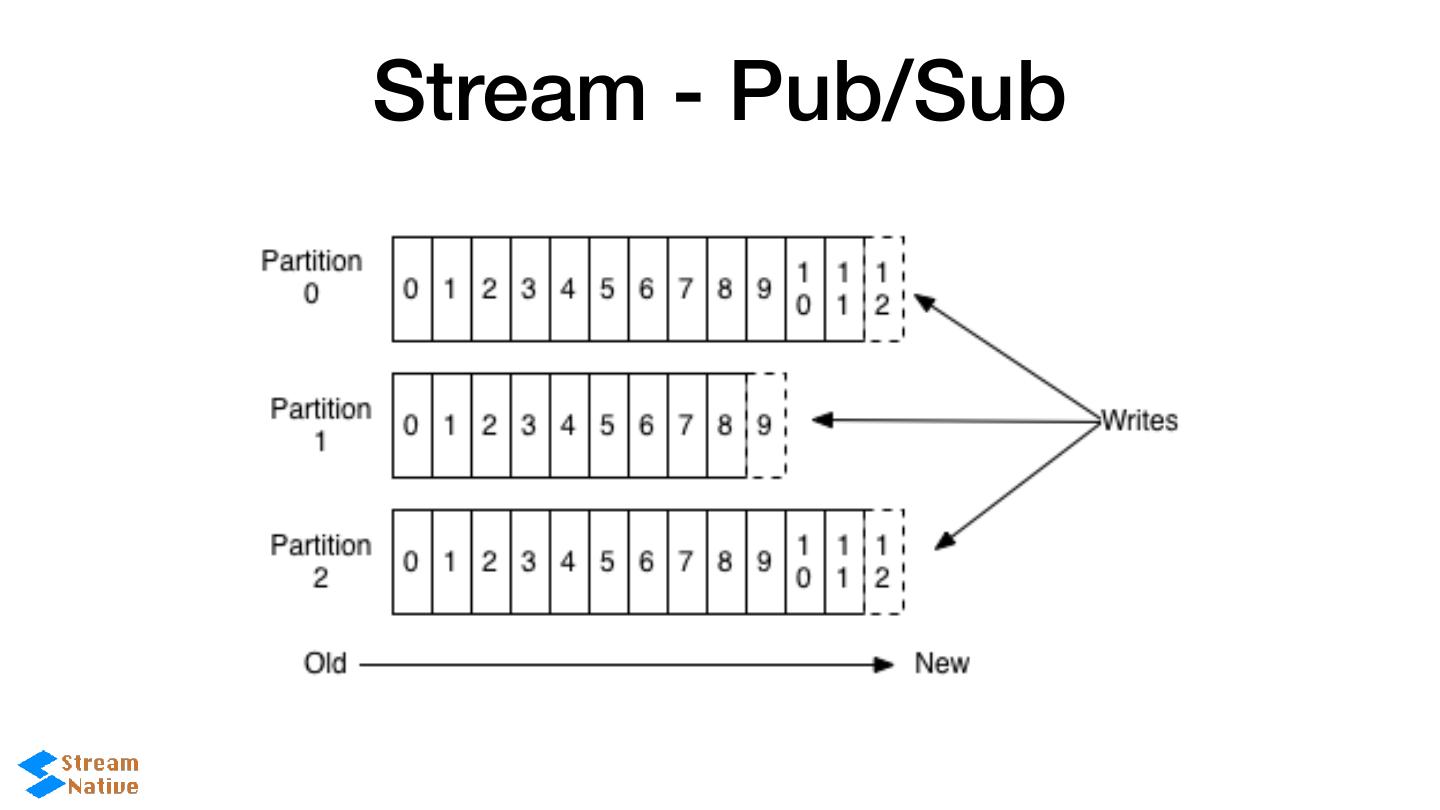

5 .Stream - Pub/Sub 

6 .A Flink View on Computing “Batch processing is a special case of Stream processing” 

7 .A Pulsar View on Data 

8 . Topic Producers Topic Consumers Time 

9 .Partitions P0 Producers P1 P2 Consumers P3 Time 

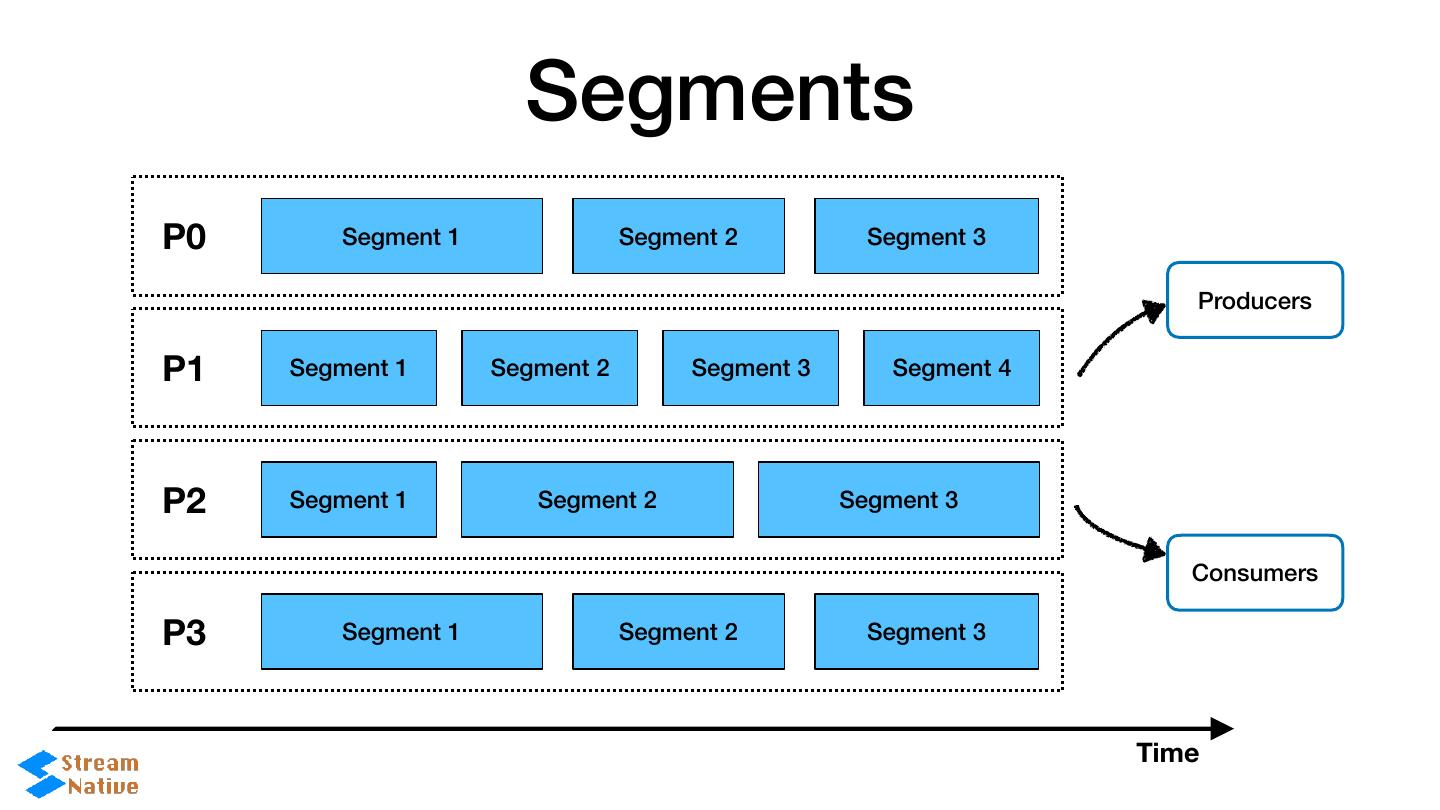

10 . Segments P0 Segment 1 Segment 2 Segment 3 Producers P1 Segment 1 Segment 2 Segment 3 Segment 4 P2 Segment 1 Segment 2 Segment 3 Consumers P3 Segment 1 Segment 2 Segment 3 Time 

11 . Stream P0 Segment 1 Segment 2 Segment 3 Producers P1 Segment 1 Segment 2 Segment 3 Segment 4 P2 Segment 1 Segment 2 Segment 3 Consumers P3 Segment 1 Segment 2 Segment 3 Time 

12 . Stream Producers Stream Segment 1 Segment 2 Segment 3 Segment 4 Consumers Time 

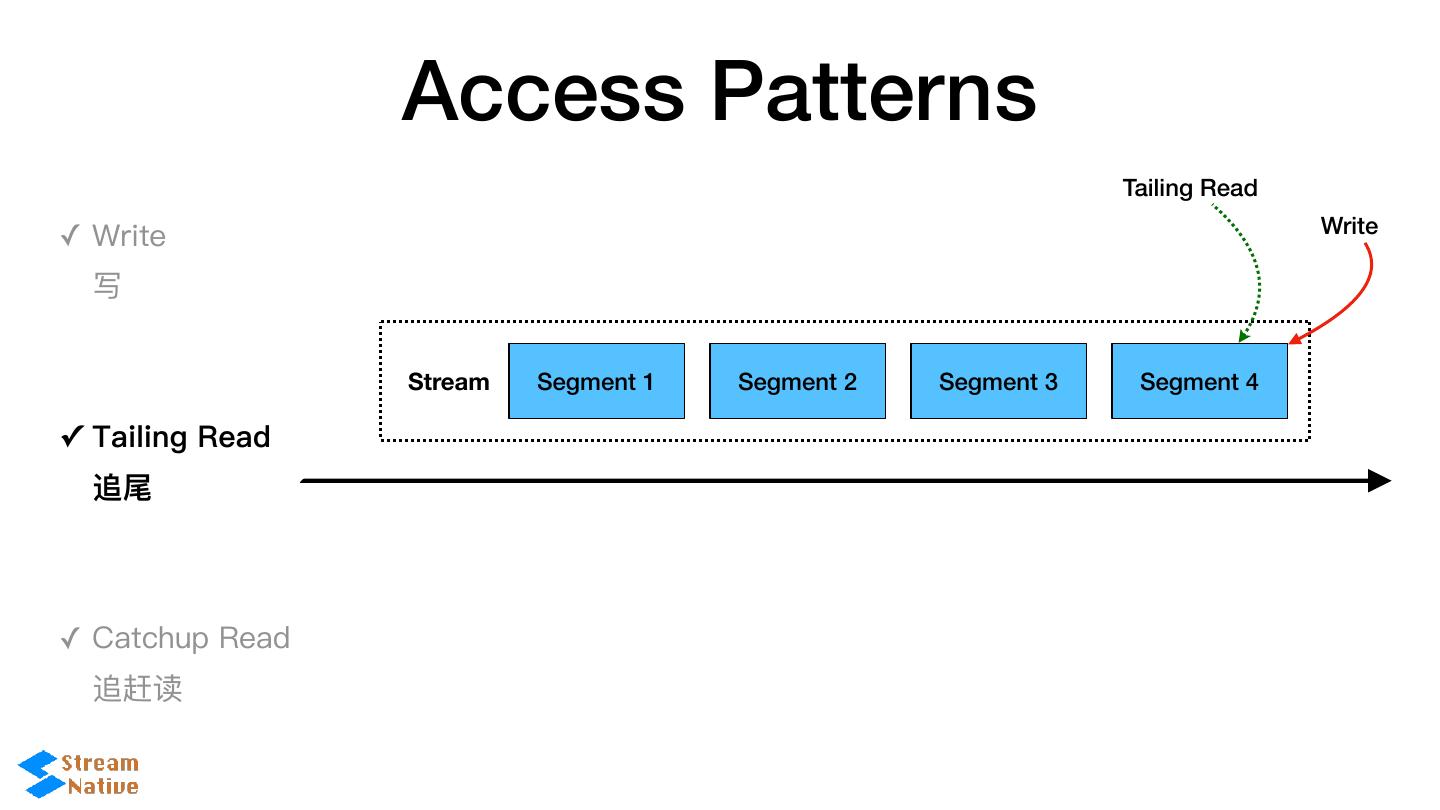

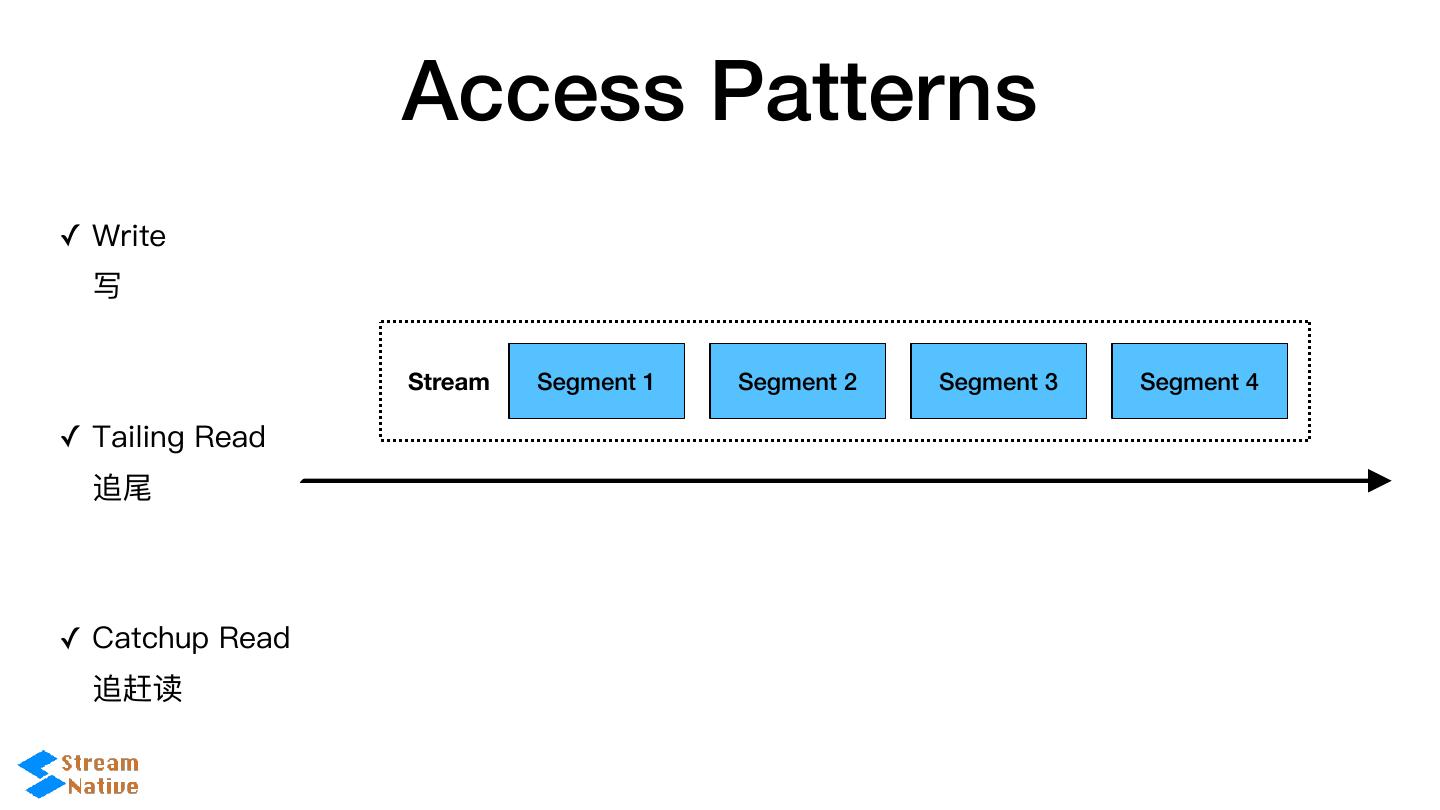

13 . Access Patterns ✓ Write
 写 Stream Segment 1 Segment 2 Segment 3 Segment 4 ✓ Tailing Read
 追尾 Time ✓ Catchup Read
 追赶读 

14 . Access Patterns ✓ Write
 Write 写 Stream Segment 1 Segment 2 Segment 3 Segment 4 ✓ Tailing Read
 追尾 Time ✓ Catchup Read
 追赶读 

15 . Access Patterns Tailing Read ✓ Write
 Write 写 Stream Segment 1 Segment 2 Segment 3 Segment 4 ✓ Tailing Read
 追尾 Time ✓ Catchup Read
 追赶读 

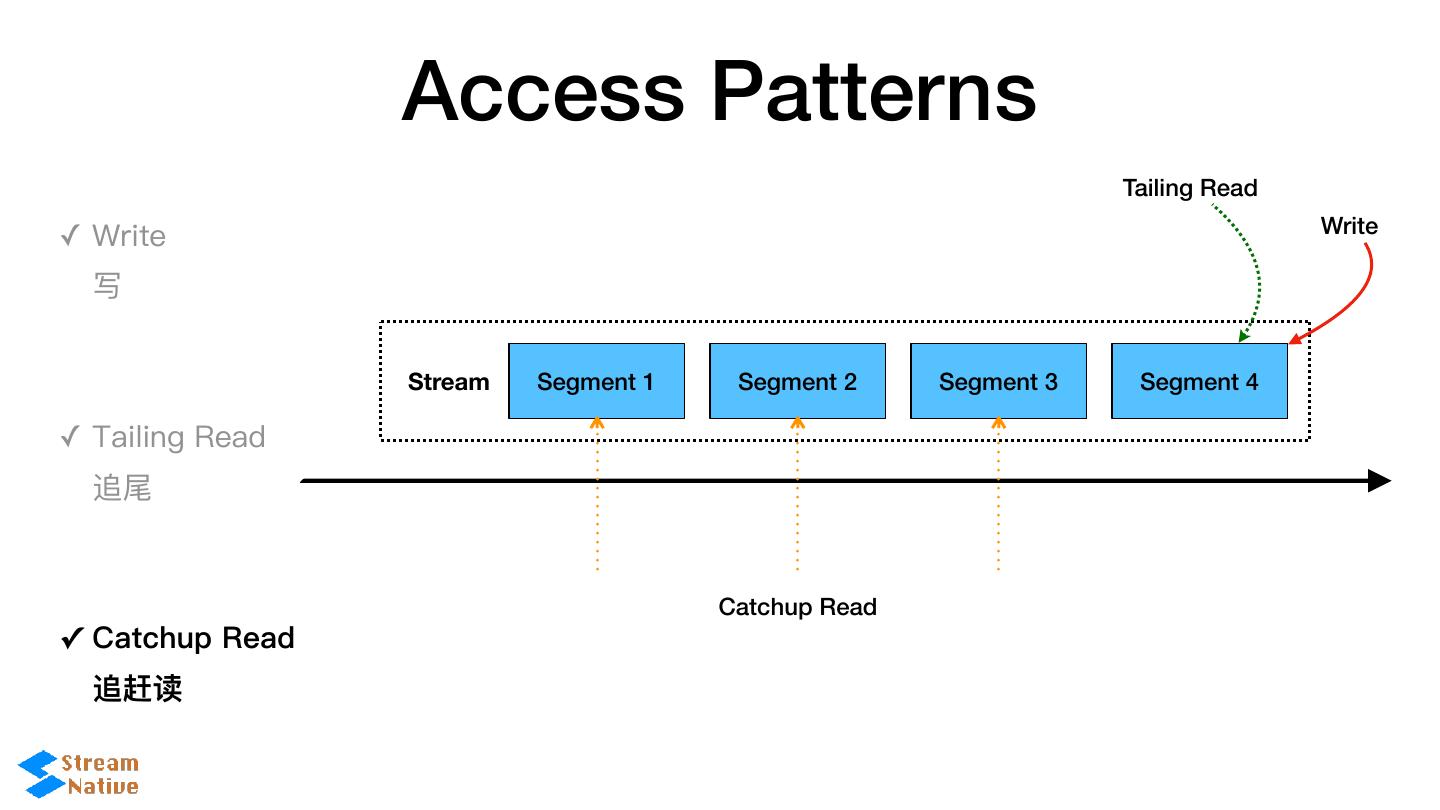

16 . Access Patterns Tailing Read ✓ Write
 Write 写 Stream Segment 1 Segment 2 Segment 3 Segment 4 ✓ Tailing Read
 追尾 Time Catchup Read ✓ Catchup Read
 追赶读 

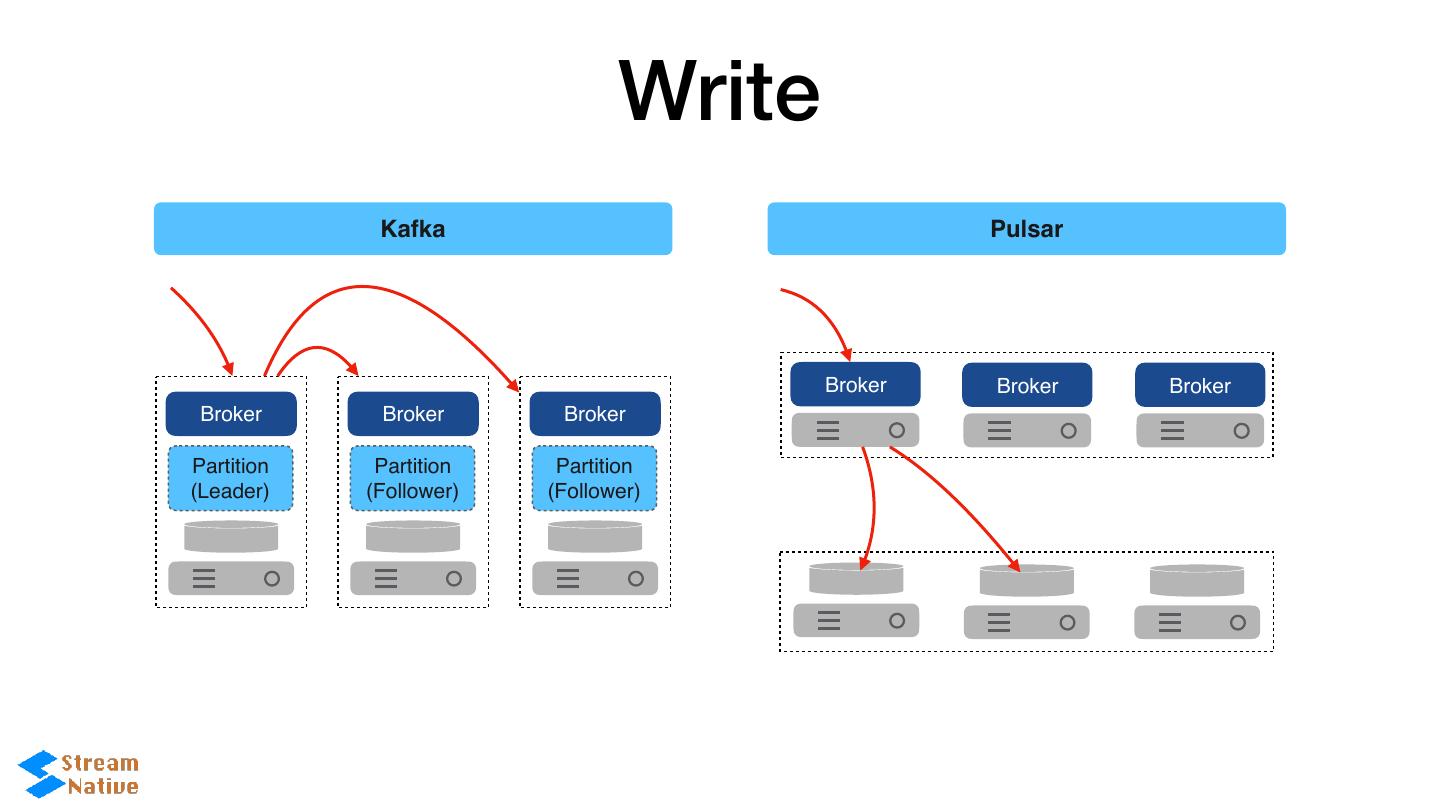

17 . Write Kafka Pulsar Broker Broker Broker Broker Broker Broker Partition Partition Partition (Leader) (Follower) (Follower) 

18 . Tailing Read Kafka Pulsar Broker Broker Broker Broker Broker Broker Partition Partition Partition (Leader) (Follower) (Follower) 

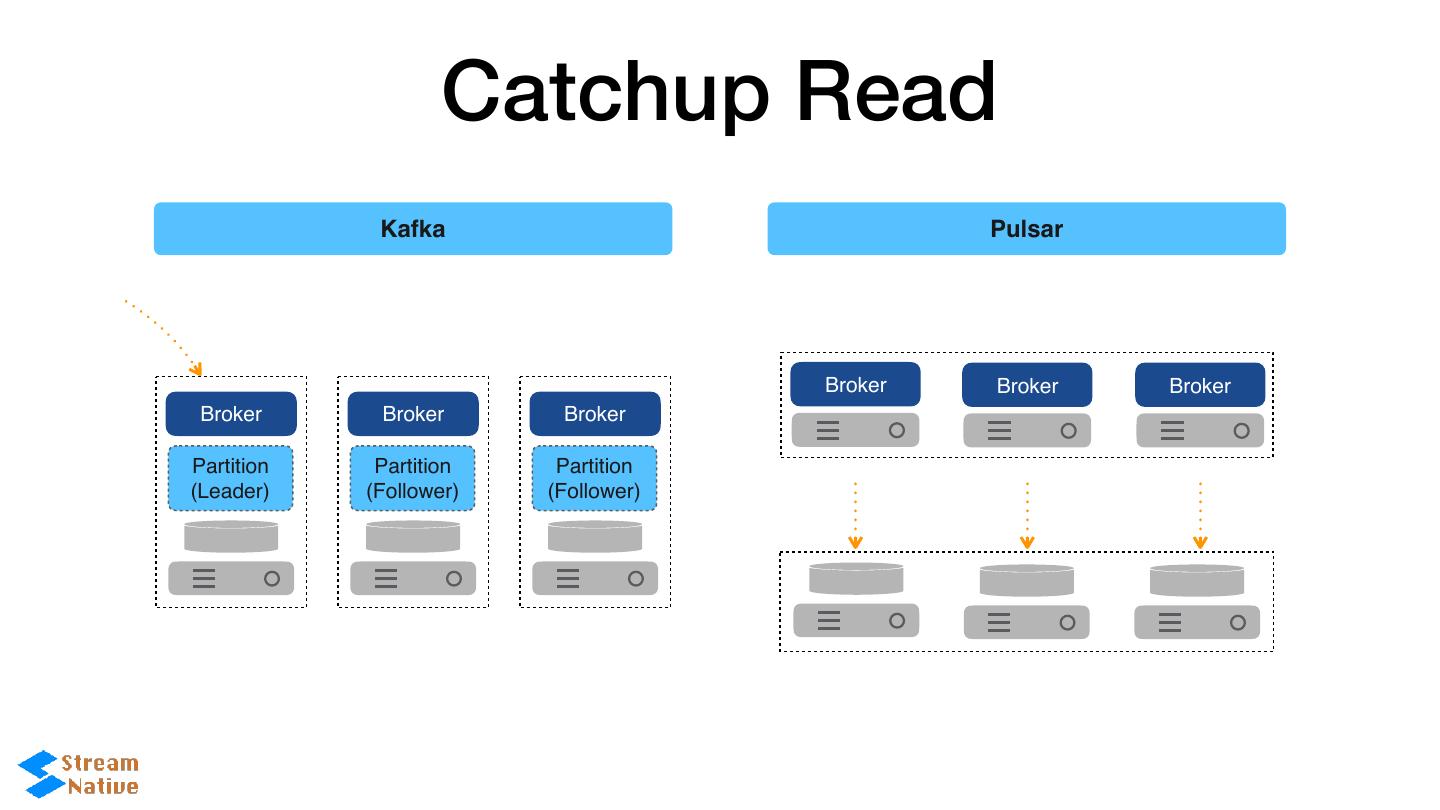

19 . Catchup Read Kafka Pulsar Broker Broker Broker Broker Broker Broker Partition Partition Partition (Leader) (Follower) (Follower) 

20 . Infinite Stream ✓ Write
 写 Bookies Brokers Stream Segment 1 Segment 2 Segment 3 Segment 4 ✓ Tailing Read
 追尾 Time ✓ Catchup Read
 追赶读 

21 . Infinite Stream ✓ Write
 写 Tiered Storage Bookies Brokers Stream Segment 1 Segment 2 Segment 3 Segment 4 ✓ Tailing Read
 追尾 Time ✓ Catchup Read
 追赶读 

22 . Tiered Storage • Offloader • When: size-based, time-based, or triggered by pulsar-admin • How: copy a segment to tiered storage, and delete it from bookkeeper • Access: broker knows how to read the data back, or bypass read
 the offloaded segments directly • Available Offloaders • Cloud Offloder : AWS, GCS, Azure, … • HDFS, Ceph, … 

23 . Stream as a Unified View on Data Segment Readers Producers Stream Segment 1 Segment 2 Segment 3 Segment 4 Segment 5 Segment 6 Consumers Time 

24 . Data Processing on Pulsar Bounded Stream Bounded Stream Stream Segment 1 Segment 2 Segment 3 Segment 4 Segment 5 Segment 6 Time Unbounded Stream Unbounded Stream 

25 .Pulsar + Flink 

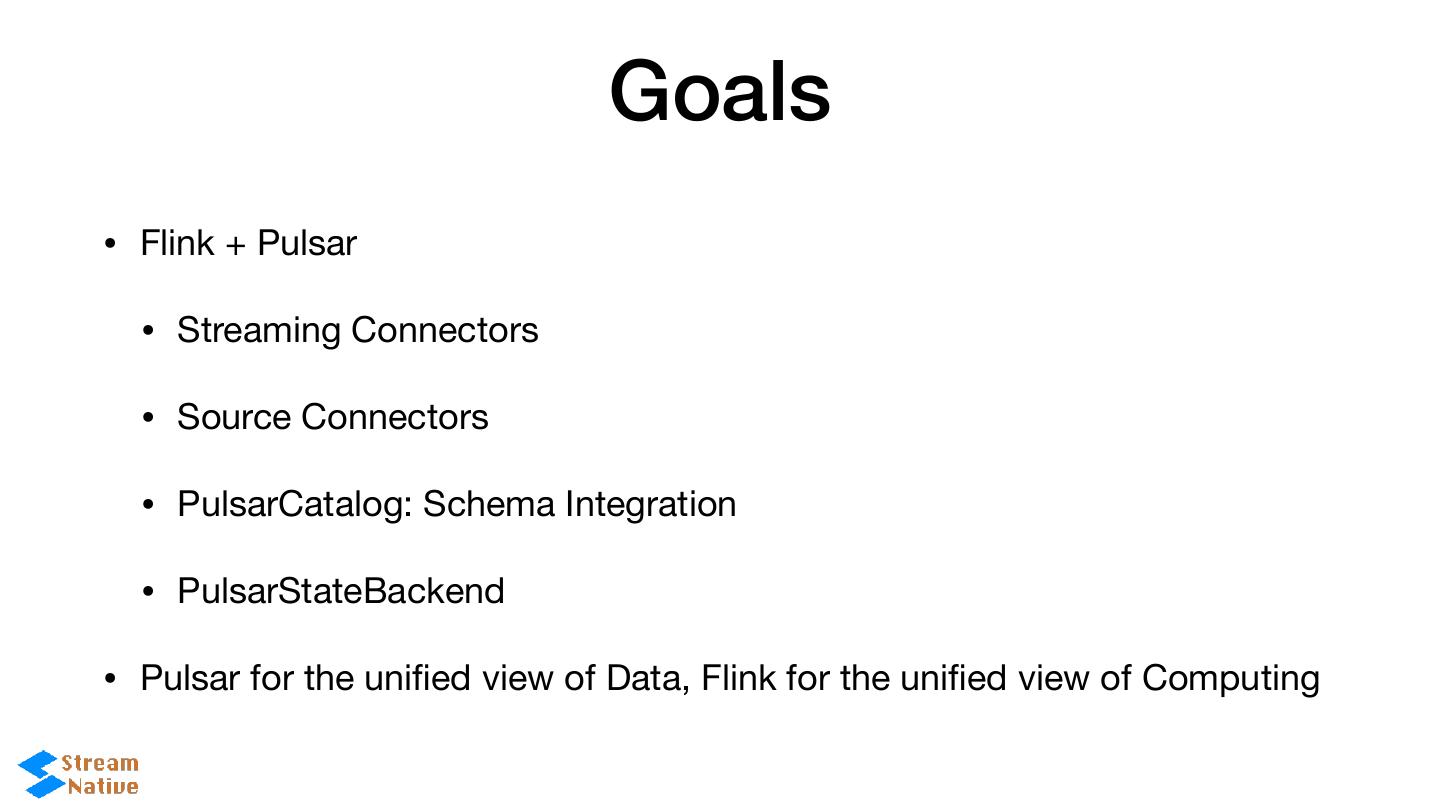

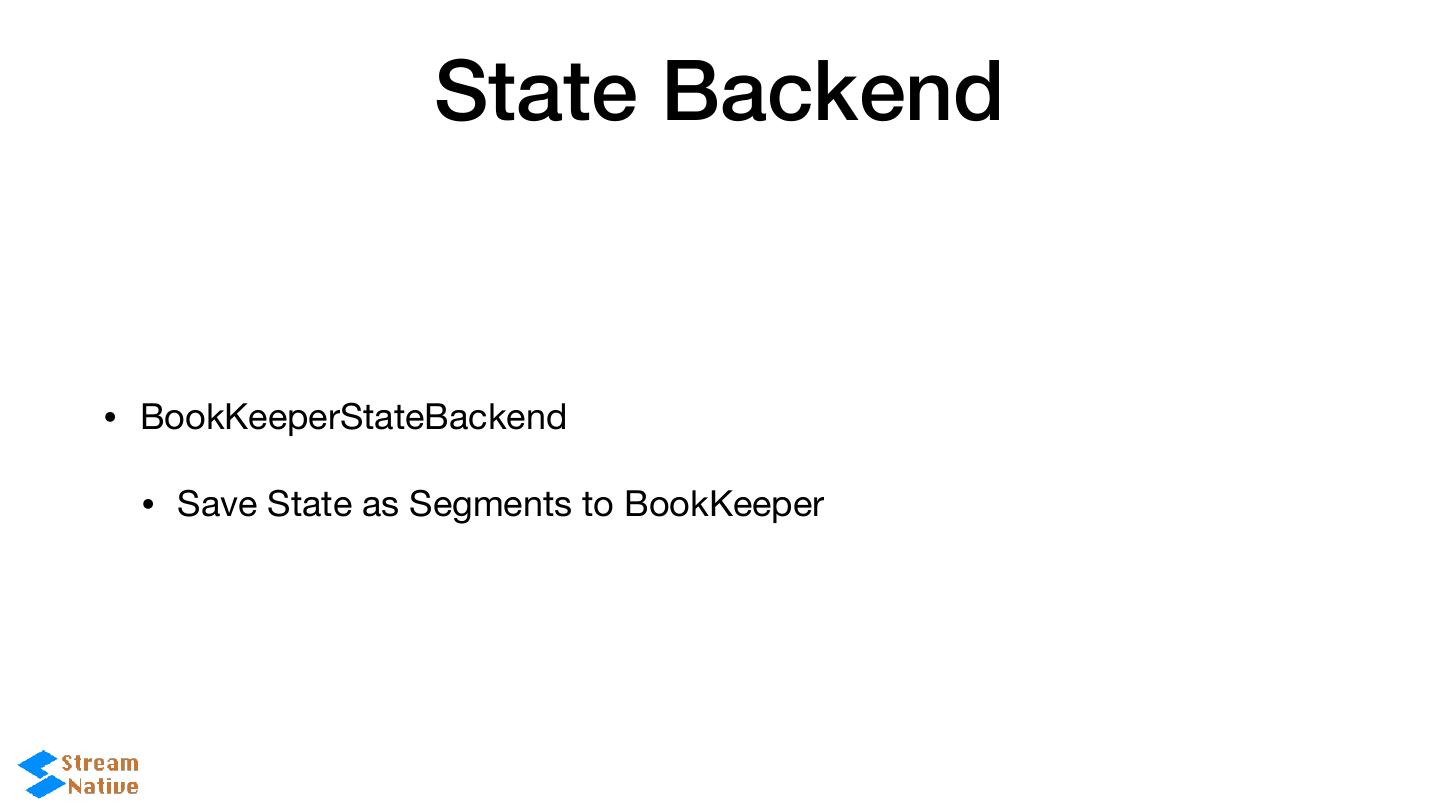

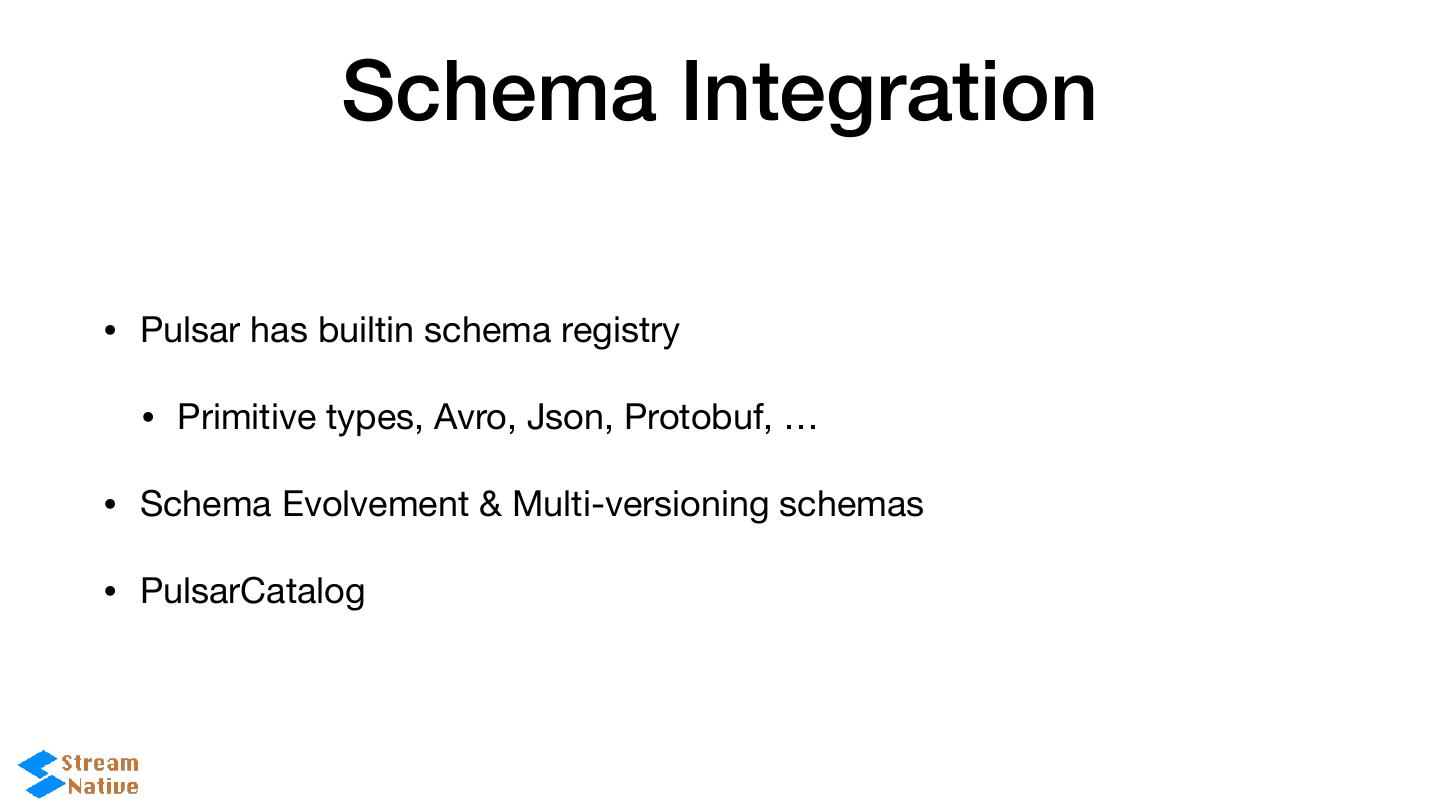

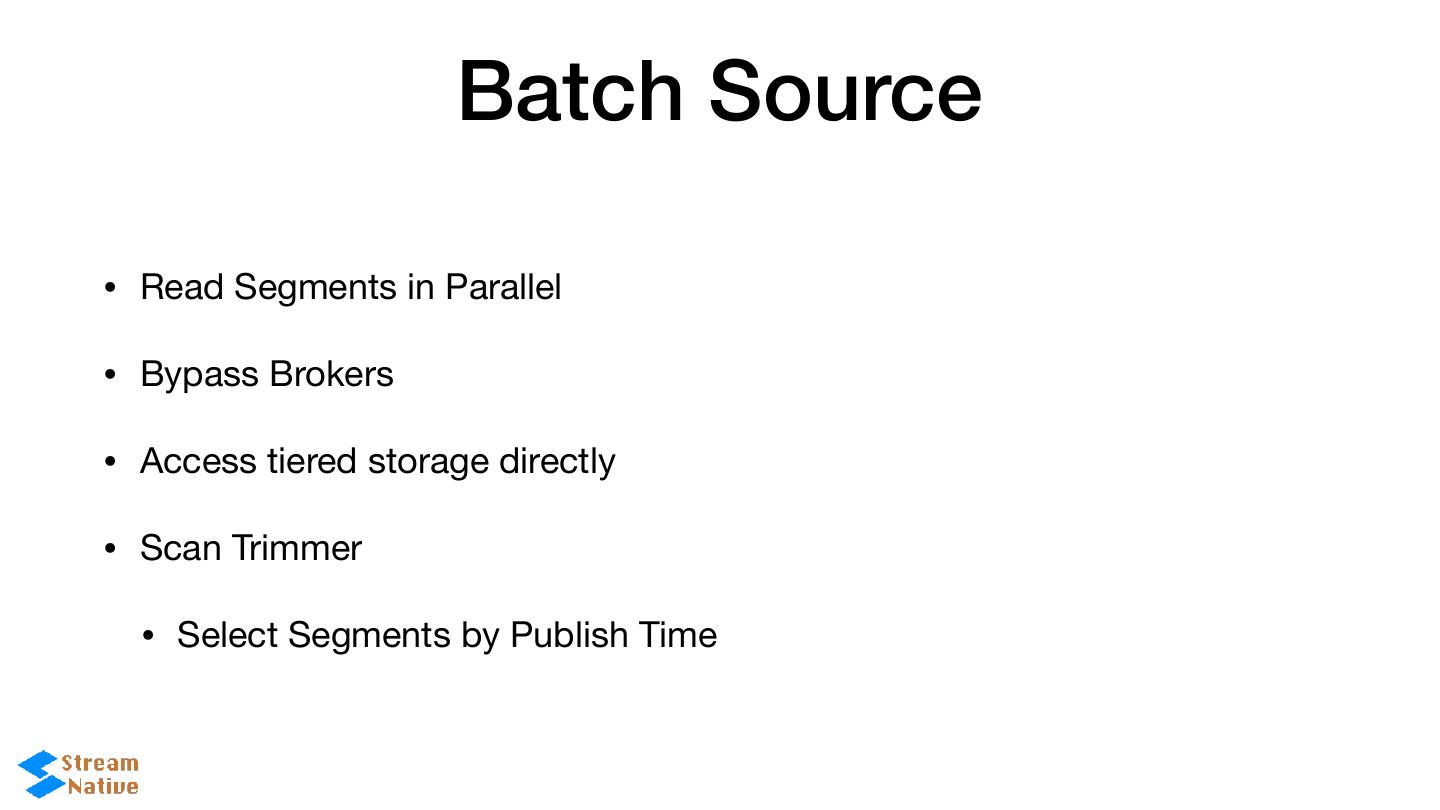

26 . Goals • Flink + Pulsar • Streaming Connectors • Source Connectors • PulsarCatalog: Schema Integration • PulsarStateBackend • Pulsar for the unified view of Data, Flink for the unified view of Computing 

27 .Done 

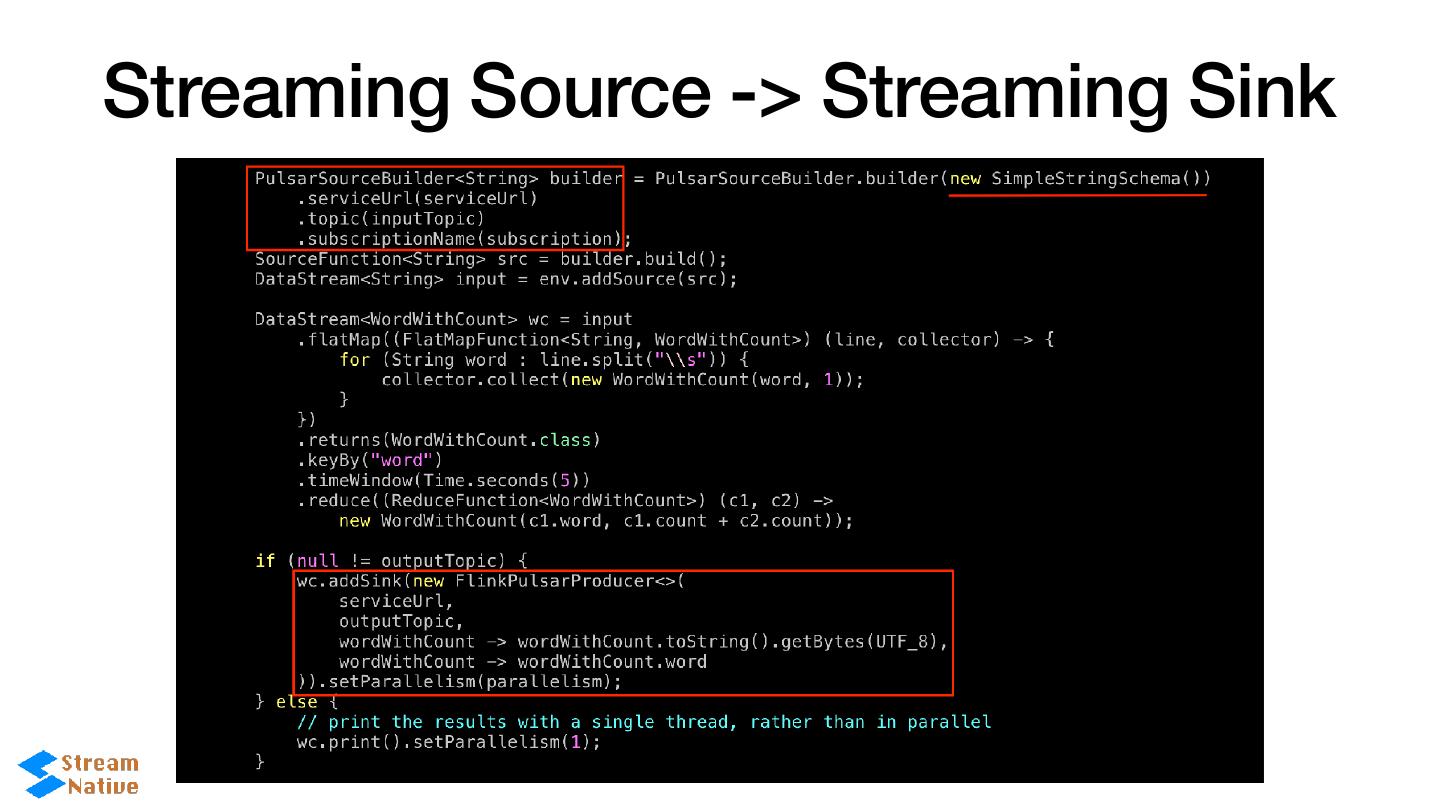

28 .Streaming Source -> Streaming Sink 

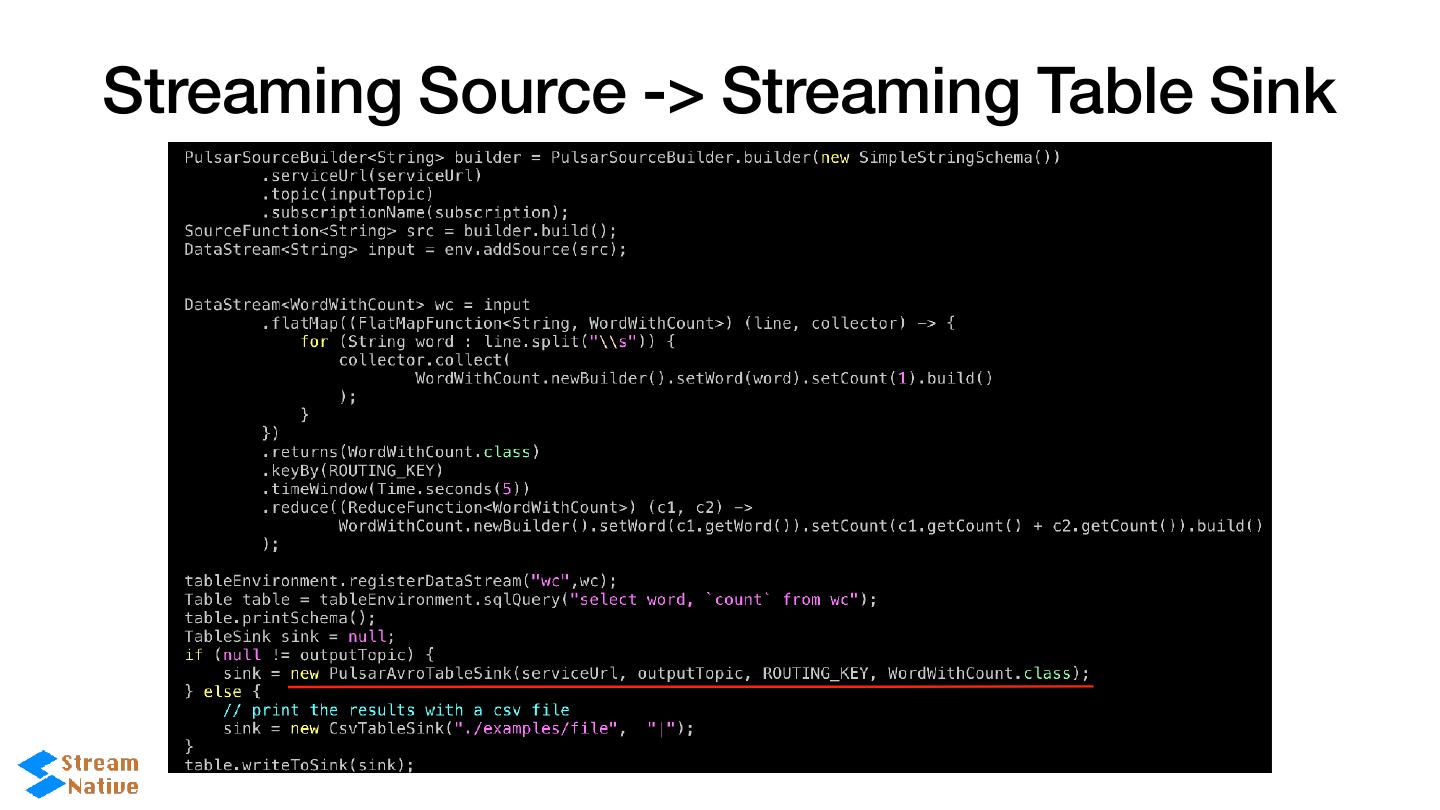

29 .Streaming Source -> Streaming Table Sink
