1 .Stream Processing with Apache Flink Stream Processing Stream Processing with Apache Flink Get started with Apache Flink, the open source framework with Apache Flink that powers some of the world’s largest stream processing “Stream Processing with applications. With this practical book, you’ll explore the Apache Flink is a great book fundamental concepts of parallel stream processing and for everyone from old-timers discover how this technology differs from traditional batch in the streaming world to data processing. Fundamentals, Implementation, and Operation beginner software and data Longtime Apache Flink committers Fabian Hueske and Vasia engineers writing their first Kalavri show you how to implement scalable streaming of Streaming Applications stream processing jobs. As applications with Flink’s DataStream API and continuously run the book reviews Flink, it also and maintain these applications in operational environments. teaches core streaming Stream processing is ideal for many use cases, including low- fundamentals that will latency ETL, streaming analytics, and real-time dashboards help readers level up their as well as fraud detection, anomaly detection, and alerting. technical thought process. You can process continuous data of any kind, including user Total recommended read.” interactions, financial transactions, and IoT data, as soon as ­­—Ted Malaska you generate them. Director of Enterprise Architecture at Capital One • Learn concepts and challenges of distributed stateful stream processing Fabian Hueske is a PMC member of • Explore Flink’s system architecture, including its event-time the Apache Flink project and has been processing mode and fault-tolerance model contributing to Flink since day one. ay s c a le E di ti o Gr n Fabian is cofounder of data Artisans (now • Understand the fundamentals and building blocks of the Ververica) and holds a PhD in computer DataStream API, including its time-based and stateful science from TU Berlin. For Sale in operators Vasiliki (Vasia) Kalavri is a postdoctoral the Indian • Read data from and write data to external systems with fellow in the Systems Group at ETH Zurich. Vasia is a PMC member of the Subcontinent & Hueske & exactly-once consistency Apache Flink project. An early contribu- Select Countries Kalavri • Deploy and configure Flink clusters tor to Flink, she has worked on its graph processing library, Gelly, and on early ver- Only* • Operate continuously running streaming applications sions of the Table API and streaming SQL. *Refer Back Cover DATA SCIENCE For sale in the Indian Subcontinent (India, Pakistan, Bangladesh, Nepal, Sri Lanka, ISBN : 978-93-5213-828-9 Bhutan, Maldives) and African Continent (excluding Morocco, Algeria, Tunisia, Libya, Egypt, and the Republic of South Africa) only. Illegal for sale outside of these countries. MRP: ` 1,050 .00 Twitter: @oreillymedia facebook.com/oreilly SHROFF PUBLISHERS & Fabian Hueske & DISTRIBUTORS PVT. LTD. First Edition/2019/Paperback/English Vasiliki Kalavri 

2 . Stream Processing with Apache Flink Fundamentals, Implementation, and Operation of Streaming Applications Fabian Hueske and Vasiliki Kalavri Beijing Boston Farnham Sebastopol Tokyo SHROFF PUBLISHERS & DISTRIBUTORS PVT. LTD. Mumbai Bangalore Kolkata New Delhi 

3 .Stream Processing with Apache Flink by Fabian Hueske and Vasiliki Kalavri Copyright © 2019 Fabian Hueske, Vasiliki Kalavri. All rights reserved. ISBN: 978-1-491-97429-2 Originally printed in the United States of America. Published by O’Reilly Media, Inc., 1005 Gravenstein Highway North, Sebastopol, CA 95472. O’Reilly books may be purchased for educational, business, or sales promotional use. Online editions are also available for most titles (http://my.safaribooksonline.com). For more information, contact our corporate/institutional sales department: (800) 998-9938 or corporate@oreilly.com. Acquisitions Editor: Rachel Roumeliotis Indexer: Judith McConville Development Editor: Alicia Young Interior Designer: David Futato Production Editor: Katherine Tozer Cover Designer: Karen Montgomery Copyeditor: Christina Edwards Illustrator: Rebecca Demarest Proofreader: Charles Roumeliotis April 2019: First Edition Revision History for the First Edition: 2019-04-03: First Release See http://oreilly.com/catalog/errata.csp?isbn=9781491974292 for release details. First Indian Reprint: April 2019 ISBN: 978-93-5213-828-9 The O’Reilly logo is a registered trademark of O’Reilly Media, Inc. Stream Processing with Apache Flink, the cover image, and related trade dress are trademarks of O’Reilly Media, Inc. The views expressed in this work are those of the authors, and do not represent the publisher’s views. While the publisher and the authors have used good faith efforts to ensure that the information and instructions contained in this work are accurate, the publisher and the authors disclaim all responsibility for errors or omissions, including without limitation responsibility for damages resulting from the use of or reliance on this work. Use of the information and instructions contained in this work is at your own risk. If any code samples or other technology this work contains or describes is subject to open source licenses or the intellectual property rights of others, it is your responsibility to ensure that your use thereof complies with such licenses and/or rights. For sale in the Indian Subcontinent (India, Pakistan, Bangladesh, Sri Lanka, Nepal, Bhutan, Maldives) and African Continent (excluding Morocco, Algeria, Tunisia, Libya, Egypt, and the Republic of South Africa) only. Illegal for sale outside of these countries. Authorized reprint of the original work published by O’Reilly Media, Inc. All rights reserved. No part of the material protected by this copyright notice may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying, recording, or by any information storage and retrieval system, nor exported to any countries other than ones mentioned above without the written permission of the copyright owner. Published by Shroff Publishers and Distributors Pvt. Ltd. B-103, Railway Commercial Complex, Sector 3, Sanpada (E), Navi Mumbai 400705 • TEL: (91 22) 4158 4158 • FAX: (91 22) 4158 4141• E-mail : spdorders@shroffpublishers.com Web : www.shroffpublishers.com Printed at Jasmine Art Printers Pvt. Ltd., Mumbai 

4 . Table of Contents Preface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix 1. Introduction to Stateful Stream Processing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Traditional Data Infrastructures 1 Transactional Processing 2 Analytical Processing 3 Stateful Stream Processing 4 Event-Driven Applications 6 Data Pipelines 8 Streaming Analytics 8 The Evolution of Open Source Stream Processing 9 A Bit of History 10 A Quick Look at Flink 12 Running Your First Flink Application 13 Summary 15 2. Stream Processing Fundamentals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Introduction to Dataflow Programming 17 Dataflow Graphs 17 Data Parallelism and Task Parallelism 18 Data Exchange Strategies 19 Processing Streams in Parallel 20 Latency and Throughput 20 Operations on Data Streams 22 Time Semantics 27 What Does One Minute Mean in Stream Processing? 27 Processing Time 29 Event Time 29 iii 

5 . Watermarks 30 Processing Time Versus Event Time 31 State and Consistency Models 32 Task Failures 33 Result Guarantees 34 Summary 36 3. The Architecture of Apache Flink. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 System Architecture 37 Components of a Flink Setup 38 Application Deployment 39 Task Execution 40 Highly Available Setup 42 Data Transfer in Flink 44 Credit-Based Flow Control 45 Task Chaining 46 Event-Time Processing 47 Timestamps 47 Watermarks 48 Watermark Propagation and Event Time 49 Timestamp Assignment and Watermark Generation 52 State Management 53 Operator State 54 Keyed State 54 State Backends 55 Scaling Stateful Operators 56 Checkpoints, Savepoints, and State Recovery 58 Consistent Checkpoints 59 Recovery from a Consistent Checkpoint 60 Flink’s Checkpointing Algorithm 61 Performace Implications of Checkpointing 65 Savepoints 66 Summary 69 4. Setting Up a Development Environment for Apache Flink. . . . . . . . . . . . . . . . . . . . . . . . 71 Required Software 71 Run and Debug Flink Applications in an IDE 72 Import the Book’s Examples in an IDE 72 Run Flink Applications in an IDE 75 Debug Flink Applications in an IDE 76 Bootstrap a Flink Maven Project 76 Summary 77 iv | Table of Contents 

6 .5. The DataStream API (v1.7). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 Hello, Flink! 79 Set Up the Execution Environment 81 Read an Input Stream 81 Apply Transformations 82 Output the Result 82 Execute 83 Transformations 83 Basic Transformations 84 KeyedStream Transformations 87 Multistream Transformations 90 Distribution Transformations 94 Setting the Parallelism 96 Types 97 Supported Data Types 98 Creating Type Information for Data Types 100 Explicitly Providing Type Information 102 Defining Keys and Referencing Fields 102 Field Positions 103 Field Expressions 103 Key Selectors 104 Implementing Functions 105 Function Classes 105 Lambda Functions 106 Rich Functions 106 Including External and Flink Dependencies 107 Summary 108 6. Time-Based and Window Operators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109 Configuring Time Characteristics 109 Assigning Timestamps and Generating Watermarks 111 Watermarks, Latency, and Completeness 115 Process Functions 116 TimerService and Timers 117 Emitting to Side Outputs 119 CoProcessFunction 120 Window Operators 122 Defining Window Operators 122 Built-in Window Assigners 123 Applying Functions on Windows 127 Customizing Window Operators 134 Joining Streams on Time 145 Table of Contents | v 

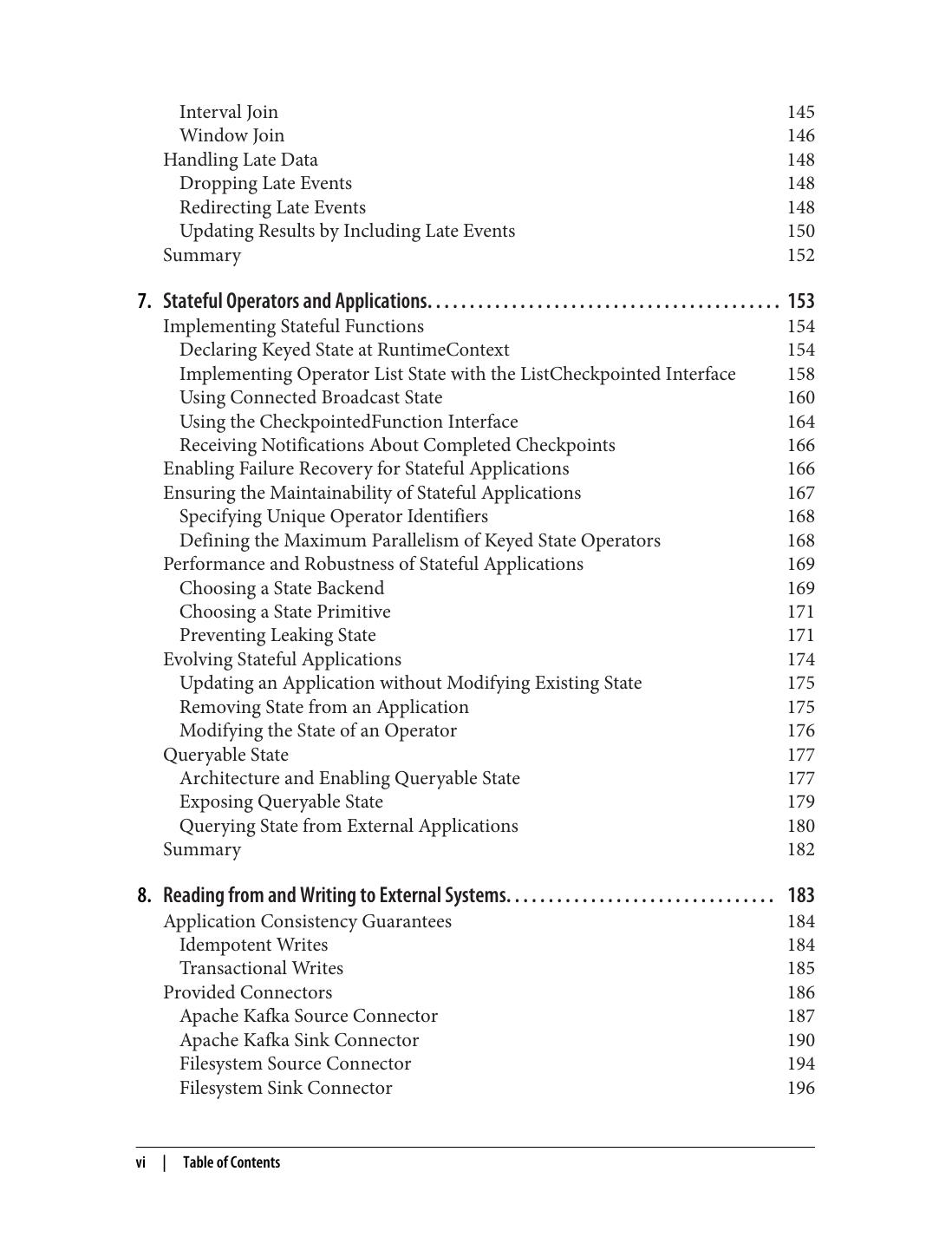

7 . Interval Join 145 Window Join 146 Handling Late Data 148 Dropping Late Events 148 Redirecting Late Events 148 Updating Results by Including Late Events 150 Summary 152 7. Stateful Operators and Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153 Implementing Stateful Functions 154 Declaring Keyed State at RuntimeContext 154 Implementing Operator List State with the ListCheckpointed Interface 158 Using Connected Broadcast State 160 Using the CheckpointedFunction Interface 164 Receiving Notifications About Completed Checkpoints 166 Enabling Failure Recovery for Stateful Applications 166 Ensuring the Maintainability of Stateful Applications 167 Specifying Unique Operator Identifiers 168 Defining the Maximum Parallelism of Keyed State Operators 168 Performance and Robustness of Stateful Applications 169 Choosing a State Backend 169 Choosing a State Primitive 171 Preventing Leaking State 171 Evolving Stateful Applications 174 Updating an Application without Modifying Existing State 175 Removing State from an Application 175 Modifying the State of an Operator 176 Queryable State 177 Architecture and Enabling Queryable State 177 Exposing Queryable State 179 Querying State from External Applications 180 Summary 182 8. Reading from and Writing to External Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183 Application Consistency Guarantees 184 Idempotent Writes 184 Transactional Writes 185 Provided Connectors 186 Apache Kafka Source Connector 187 Apache Kafka Sink Connector 190 Filesystem Source Connector 194 Filesystem Sink Connector 196 vi | Table of Contents 

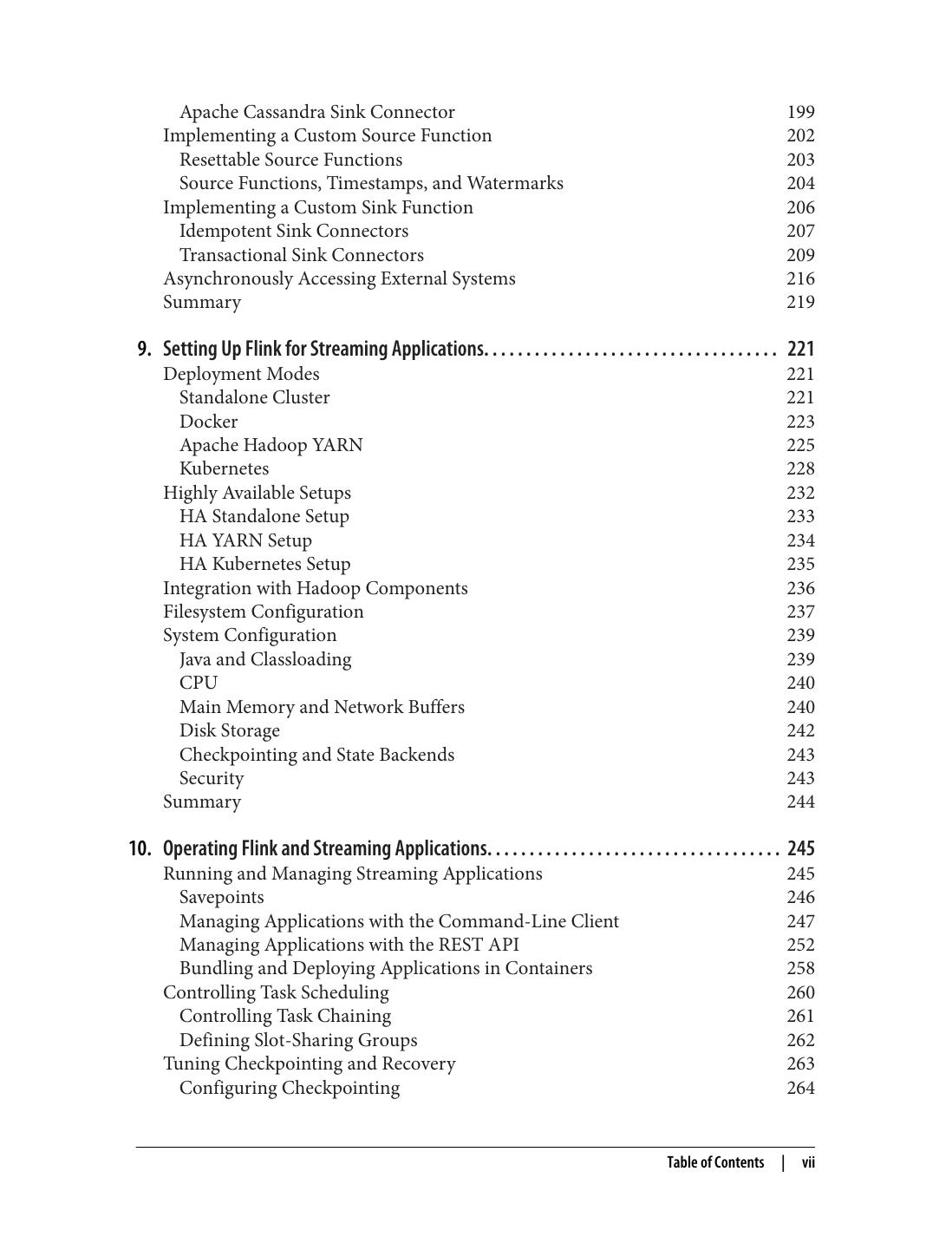

8 . Apache Cassandra Sink Connector 199 Implementing a Custom Source Function 202 Resettable Source Functions 203 Source Functions, Timestamps, and Watermarks 204 Implementing a Custom Sink Function 206 Idempotent Sink Connectors 207 Transactional Sink Connectors 209 Asynchronously Accessing External Systems 216 Summary 219 9. Setting Up Flink for Streaming Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221 Deployment Modes 221 Standalone Cluster 221 Docker 223 Apache Hadoop YARN 225 Kubernetes 228 Highly Available Setups 232 HA Standalone Setup 233 HA YARN Setup 234 HA Kubernetes Setup 235 Integration with Hadoop Components 236 Filesystem Configuration 237 System Configuration 239 Java and Classloading 239 CPU 240 Main Memory and Network Buffers 240 Disk Storage 242 Checkpointing and State Backends 243 Security 243 Summary 244 10. Operating Flink and Streaming Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245 Running and Managing Streaming Applications 245 Savepoints 246 Managing Applications with the Command-Line Client 247 Managing Applications with the REST API 252 Bundling and Deploying Applications in Containers 258 Controlling Task Scheduling 260 Controlling Task Chaining 261 Defining Slot-Sharing Groups 262 Tuning Checkpointing and Recovery 263 Configuring Checkpointing 264 Table of Contents | vii 

9 . Configuring State Backends 266 Configuring Recovery 268 Monitoring Flink Clusters and Applications 270 Flink Web UI 270 Metric System 273 Monitoring Latency 278 Configuring the Logging Behavior 279 Summary 280 11. Where to Go from Here?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281 The Rest of the Flink Ecosystem 281 The DataSet API for Batch Processing 281 Table API and SQL for Relational Analysis 282 FlinkCEP for Complex Event Processing and Pattern Matching 282 Gelly for Graph Processing 282 A Welcoming Community 283 Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285 viii | Table of Contents 

10 . Preface What You Will Learn in This Book This book will teach you everything you need to know about stream processing with Apache Flink. It consists of 11 chapters that hopefully tell a coherent story. While some chapters are descriptive and aim to introduce high-level design concepts, others are more hands-on and contain many code examples. While we intended for the book to be read in chapter order when we were writing it, readers familiar with a chapter’s content might want to skip it. Others more interested in writing Flink code right away might want to read the practical chapters first. In the following, we briefly describe the contents of each chapter, so you can directly jump to those chapters that interest you most. • Chapter 1 gives an overview of stateful stream processing, data processing appli‐ cation architectures, application designs, and the benefits of stream processing over traditional approaches. It also gives you a brief look at what it is like to run your first streaming application on a local Flink instance. • Chapter 2 discusses the fundamental concepts and challenges of stream process‐ ing, independent of Flink. • Chapter 3 describes Flink’s system architecture and internals. It discusses dis‐ tributed architecture, time and state handling in streaming applications, and Flink’s fault-tolerance mechanisms. • Chapter 4 explains how to set up an environment to develop and debug Flink applications. • Chapter 5 introduces you to the basics of the Flink’s DataStream API. You will learn how to implement a DataStream application and which stream transforma‐ tions, functions, and data types are supported. ix 

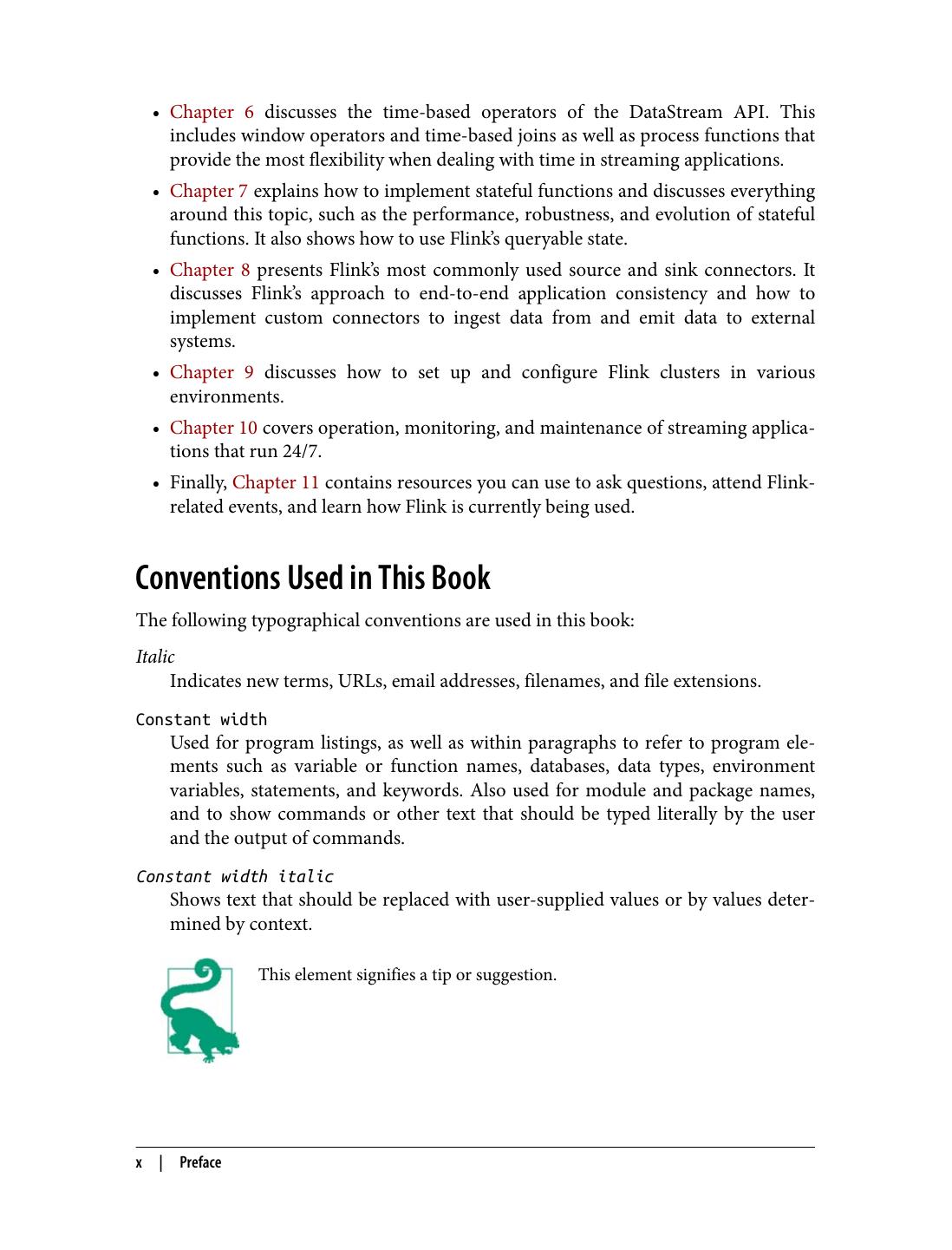

11 . • Chapter 6 discusses the time-based operators of the DataStream API. This includes window operators and time-based joins as well as process functions that provide the most flexibility when dealing with time in streaming applications. • Chapter 7 explains how to implement stateful functions and discusses everything around this topic, such as the performance, robustness, and evolution of stateful functions. It also shows how to use Flink’s queryable state. • Chapter 8 presents Flink’s most commonly used source and sink connectors. It discusses Flink’s approach to end-to-end application consistency and how to implement custom connectors to ingest data from and emit data to external systems. • Chapter 9 discusses how to set up and configure Flink clusters in various environments. • Chapter 10 covers operation, monitoring, and maintenance of streaming applica‐ tions that run 24/7. • Finally, Chapter 11 contains resources you can use to ask questions, attend Flink- related events, and learn how Flink is currently being used. Conventions Used in This Book The following typographical conventions are used in this book: Italic Indicates new terms, URLs, email addresses, filenames, and file extensions. Constant width Used for program listings, as well as within paragraphs to refer to program ele‐ ments such as variable or function names, databases, data types, environment variables, statements, and keywords. Also used for module and package names, and to show commands or other text that should be typed literally by the user and the output of commands. Constant width italic Shows text that should be replaced with user-supplied values or by values deter‐ mined by context. This element signifies a tip or suggestion. x | Preface 

12 . This element signifies a general note. This element signifies a warning or caution. Using Code Examples Supplemental material (code examples in Java and Scala) is available for download at https://github.com/streaming-with-flink. This book is here to help you get your job done. In general, if example code is offered with this book, you may use it in your programs and documentation. You do not need to contact us for permission unless you’re reproducing a significant portion of the code. For example, writing a program that uses several chunks of code from this book does not require permission. Selling or distributing a CD-ROM of examples from O’Reilly books does require permission. Answering a question by citing this book and quoting example code does not require permission. Incorporating a signifi‐ cant amount of example code from this book into your product’s documentation does require permission. We appreciate, but do not require, attribution. An attribution usually includes the title, author, publisher, and ISBN. For example: “Stream Processing with Apache Flink by Fabian Hueske and Vasiliki Kalavri (O’Reilly). Copyright 2019 Fabian Hueske and Vasiliki Kalavri, 978-1-491-97429-2.” If you feel your use of code examples falls outside fair use or the permission given above, feel free to contact us at permissions@oreilly.com. O’Reilly Online Learning For almost 40 years, O’Reilly has provided technology and business training, knowledge, and insight to help companies succeed. Our unique network of experts and innovators share their knowledge and expertise through books, articles, conferences, and our online learning platform. O’Reilly’s online learning platform gives you on-demand access to live training courses, in- depth learning paths, interactive coding environments, and a vast collection of text Preface | xi 

13 .and video from O’Reilly and 200+ other publishers. For more information, please visit http://oreilly.com. How to Contact Us Please address comments and questions concerning this book to the publisher: O’Reilly Media, Inc. 1005 Gravenstein Highway North Sebastopol, CA 95472 800-998-9938 (in the United States or Canada) 707-829-0515 (international or local) 707-829-0104 (fax) We have a web page for this book, where we list errata, examples, and any additional information. You can access this page at http://bit.ly/stream-proc. To comment or ask technical questions about this book, send email to bookques‐ tions@oreilly.com. For more information about our books, courses, conferences, and news, see our web‐ site at http://www.oreilly.com. Find us on Facebook: http://facebook.com/oreilly Follow us on Twitter: http://twitter.com/oreillymedia Watch us on YouTube: http://www.youtube.com/oreillymedia Follow the authors on Twitter: @fhueske and @vkalavri Acknowledgments This book couldn’t have been possible without the help and support of several amaz‐ ing people. We would like to thank and acknowledge some of them here. This book summarizes knowledge obtained through years of design, development, and testing performed by the Apache Flink community at large. We are grateful to everyone who has contributed to Flink through code, documentation, reviews, bug reports, feature requests, mailing list discussions, trainings, conference talks, meetup organization, and other activities. Special thanks go to our fellow Flink committers: Alan Gates, Aljoscha Krettek, Andra Lungu, ChengXiang Li, Chesnay Schepler, Chiwan Park, Daniel Warneke, Dawid Wysakowicz, Gary Yao, Greg Hogan, Gyula Fóra, Henry Saputra, Jamie Grier, Jark Wu, Jincheng Sun, Konstantinos Kloudas, Kostas Tzoumas, Kurt Young, Márton Balassi, Matthias J. Sax, Maximilian Michels, Nico Kruber, Paris Carbone, Robert xii | Preface 

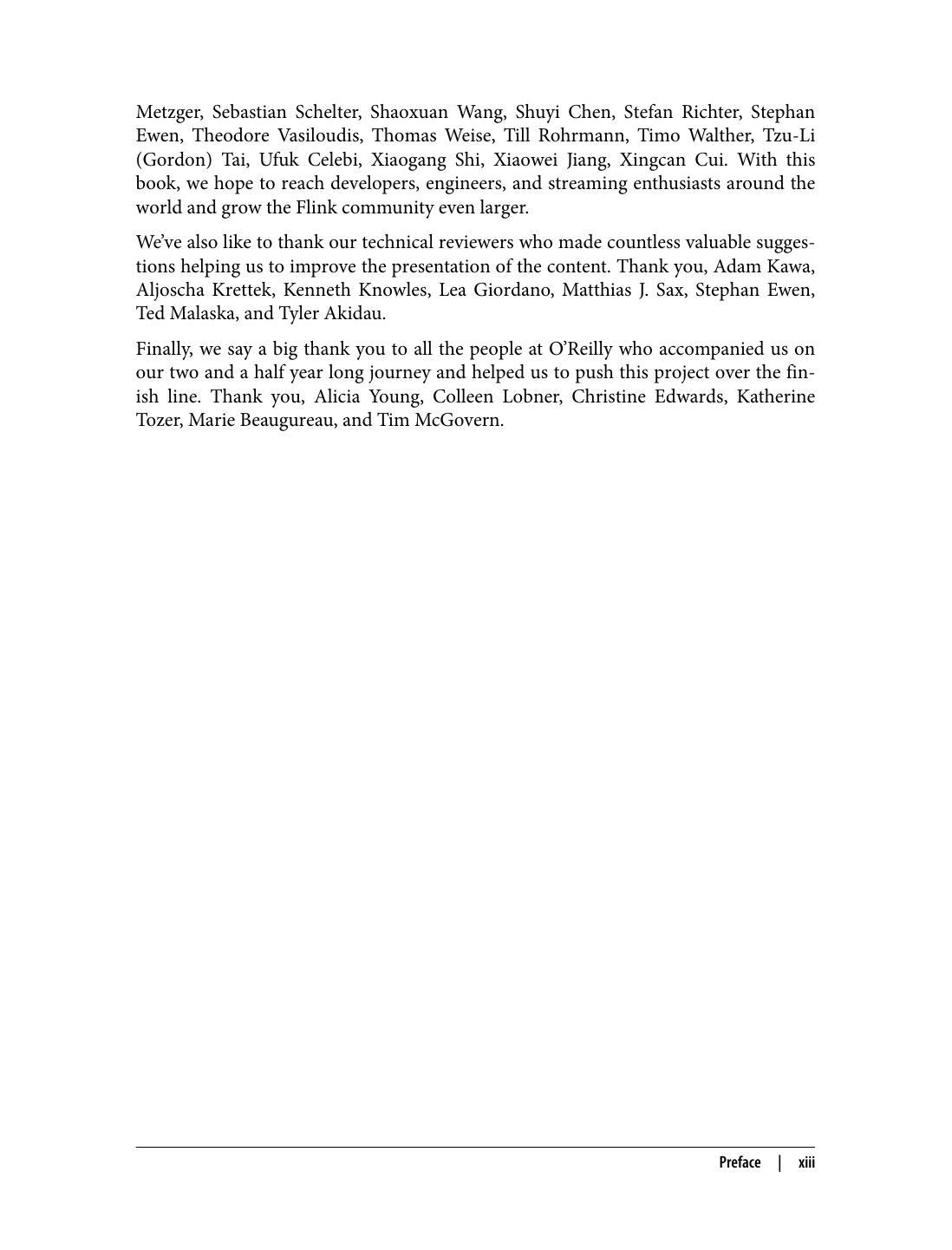

14 .Metzger, Sebastian Schelter, Shaoxuan Wang, Shuyi Chen, Stefan Richter, Stephan Ewen, Theodore Vasiloudis, Thomas Weise, Till Rohrmann, Timo Walther, Tzu-Li (Gordon) Tai, Ufuk Celebi, Xiaogang Shi, Xiaowei Jiang, Xingcan Cui. With this book, we hope to reach developers, engineers, and streaming enthusiasts around the world and grow the Flink community even larger. We’ve also like to thank our technical reviewers who made countless valuable sugges‐ tions helping us to improve the presentation of the content. Thank you, Adam Kawa, Aljoscha Krettek, Kenneth Knowles, Lea Giordano, Matthias J. Sax, Stephan Ewen, Ted Malaska, and Tyler Akidau. Finally, we say a big thank you to all the people at O’Reilly who accompanied us on our two and a half year long journey and helped us to push this project over the fin‐ ish line. Thank you, Alicia Young, Colleen Lobner, Christine Edwards, Katherine Tozer, Marie Beaugureau, and Tim McGovern. Preface | xiii 

15 .

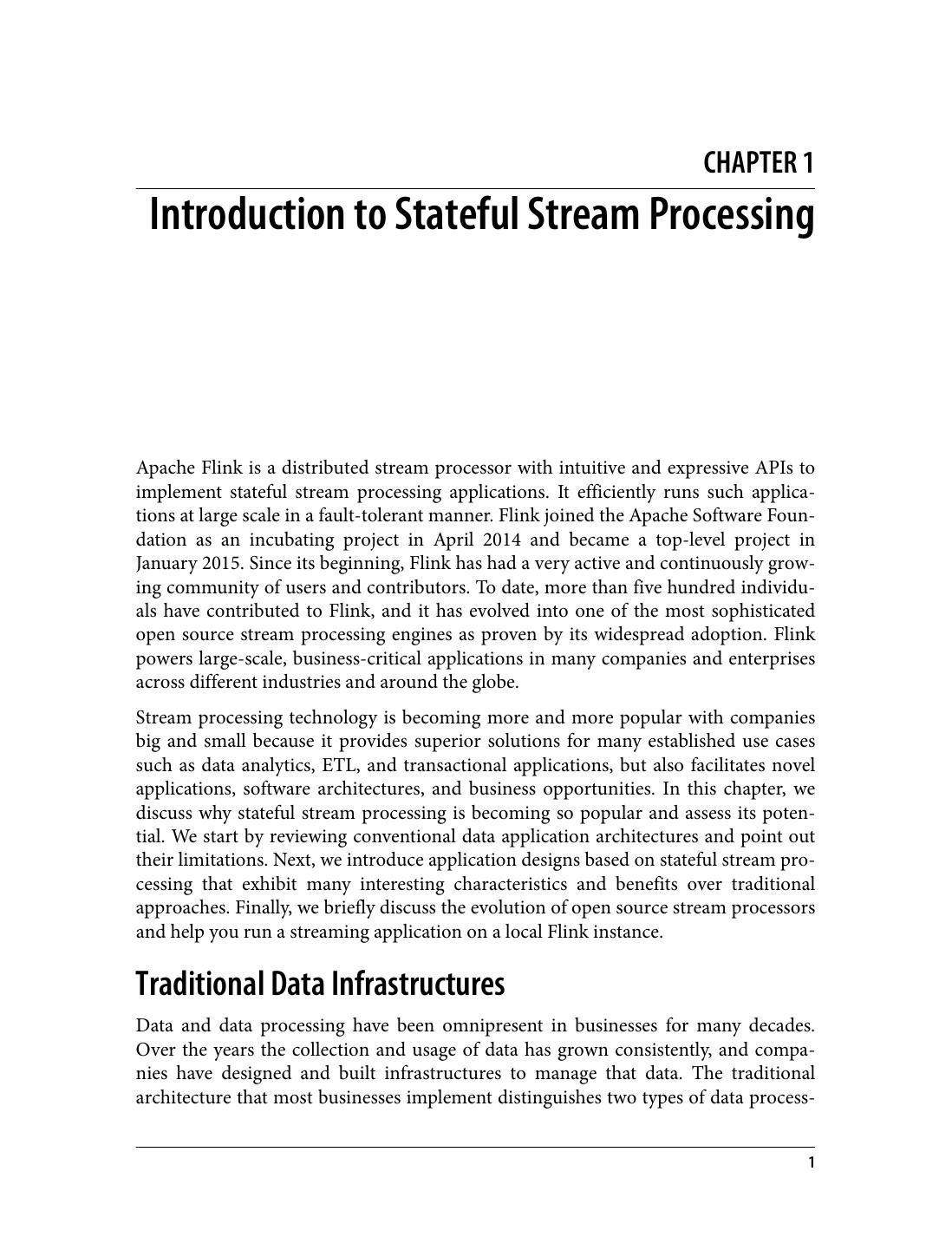

16 . CHAPTER 1 Introduction to Stateful Stream Processing Apache Flink is a distributed stream processor with intuitive and expressive APIs to implement stateful stream processing applications. It efficiently runs such applica‐ tions at large scale in a fault-tolerant manner. Flink joined the Apache Software Foun‐ dation as an incubating project in April 2014 and became a top-level project in January 2015. Since its beginning, Flink has had a very active and continuously grow‐ ing community of users and contributors. To date, more than five hundred individu‐ als have contributed to Flink, and it has evolved into one of the most sophisticated open source stream processing engines as proven by its widespread adoption. Flink powers large-scale, business-critical applications in many companies and enterprises across different industries and around the globe. Stream processing technology is becoming more and more popular with companies big and small because it provides superior solutions for many established use cases such as data analytics, ETL, and transactional applications, but also facilitates novel applications, software architectures, and business opportunities. In this chapter, we discuss why stateful stream processing is becoming so popular and assess its poten‐ tial. We start by reviewing conventional data application architectures and point out their limitations. Next, we introduce application designs based on stateful stream pro‐ cessing that exhibit many interesting characteristics and benefits over traditional approaches. Finally, we briefly discuss the evolution of open source stream processors and help you run a streaming application on a local Flink instance. Traditional Data Infrastructures Data and data processing have been omnipresent in businesses for many decades. Over the years the collection and usage of data has grown consistently, and compa‐ nies have designed and built infrastructures to manage that data. The traditional architecture that most businesses implement distinguishes two types of data process‐ 1 

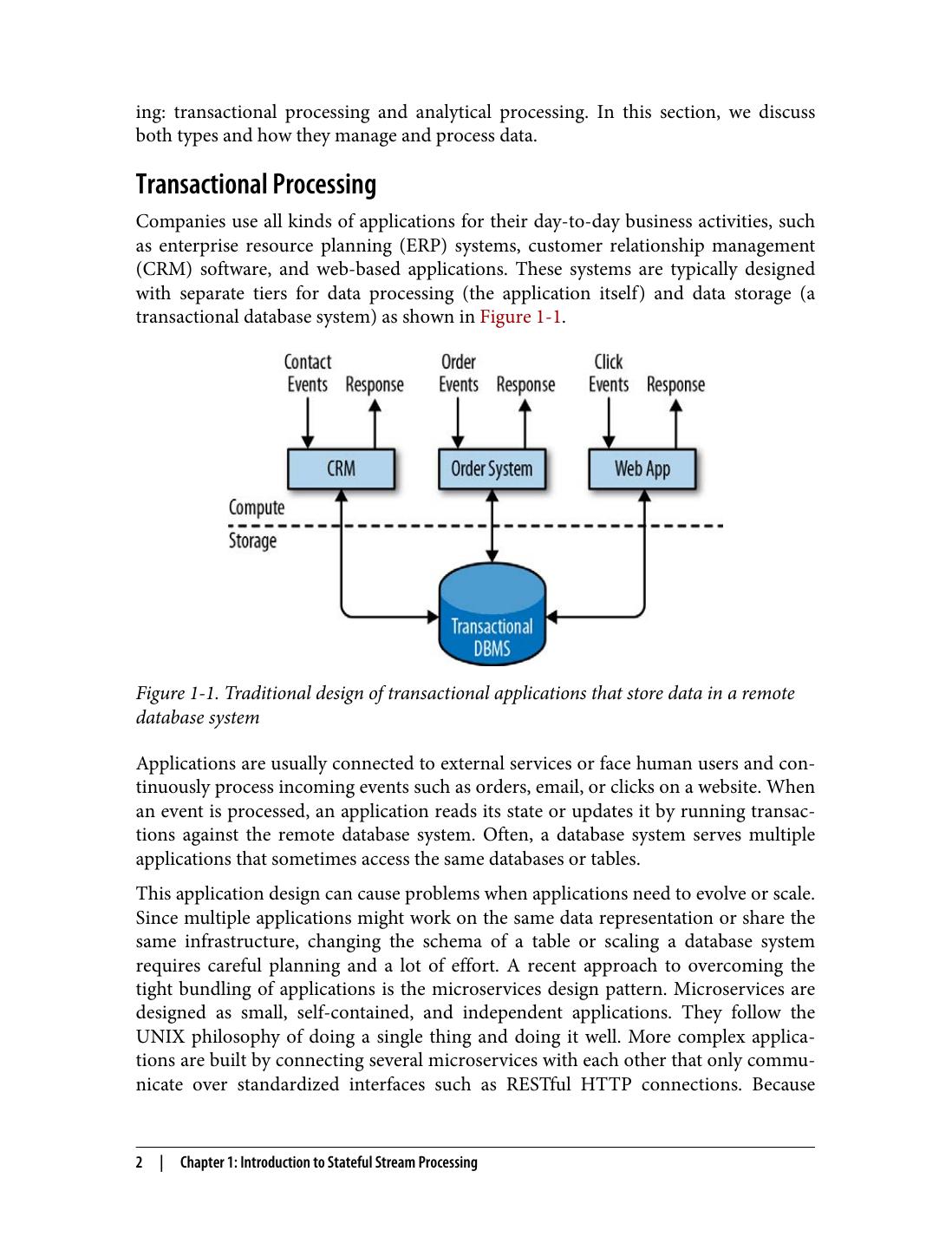

17 .ing: transactional processing and analytical processing. In this section, we discuss both types and how they manage and process data. Transactional Processing Companies use all kinds of applications for their day-to-day business activities, such as enterprise resource planning (ERP) systems, customer relationship management (CRM) software, and web-based applications. These systems are typically designed with separate tiers for data processing (the application itself) and data storage (a transactional database system) as shown in Figure 1-1. Figure 1-1. Traditional design of transactional applications that store data in a remote database system Applications are usually connected to external services or face human users and con‐ tinuously process incoming events such as orders, email, or clicks on a website. When an event is processed, an application reads its state or updates it by running transac‐ tions against the remote database system. Often, a database system serves multiple applications that sometimes access the same databases or tables. This application design can cause problems when applications need to evolve or scale. Since multiple applications might work on the same data representation or share the same infrastructure, changing the schema of a table or scaling a database system requires careful planning and a lot of effort. A recent approach to overcoming the tight bundling of applications is the microservices design pattern. Microservices are designed as small, self-contained, and independent applications. They follow the UNIX philosophy of doing a single thing and doing it well. More complex applica‐ tions are built by connecting several microservices with each other that only commu‐ nicate over standardized interfaces such as RESTful HTTP connections. Because 2 | Chapter 1: Introduction to Stateful Stream Processing 

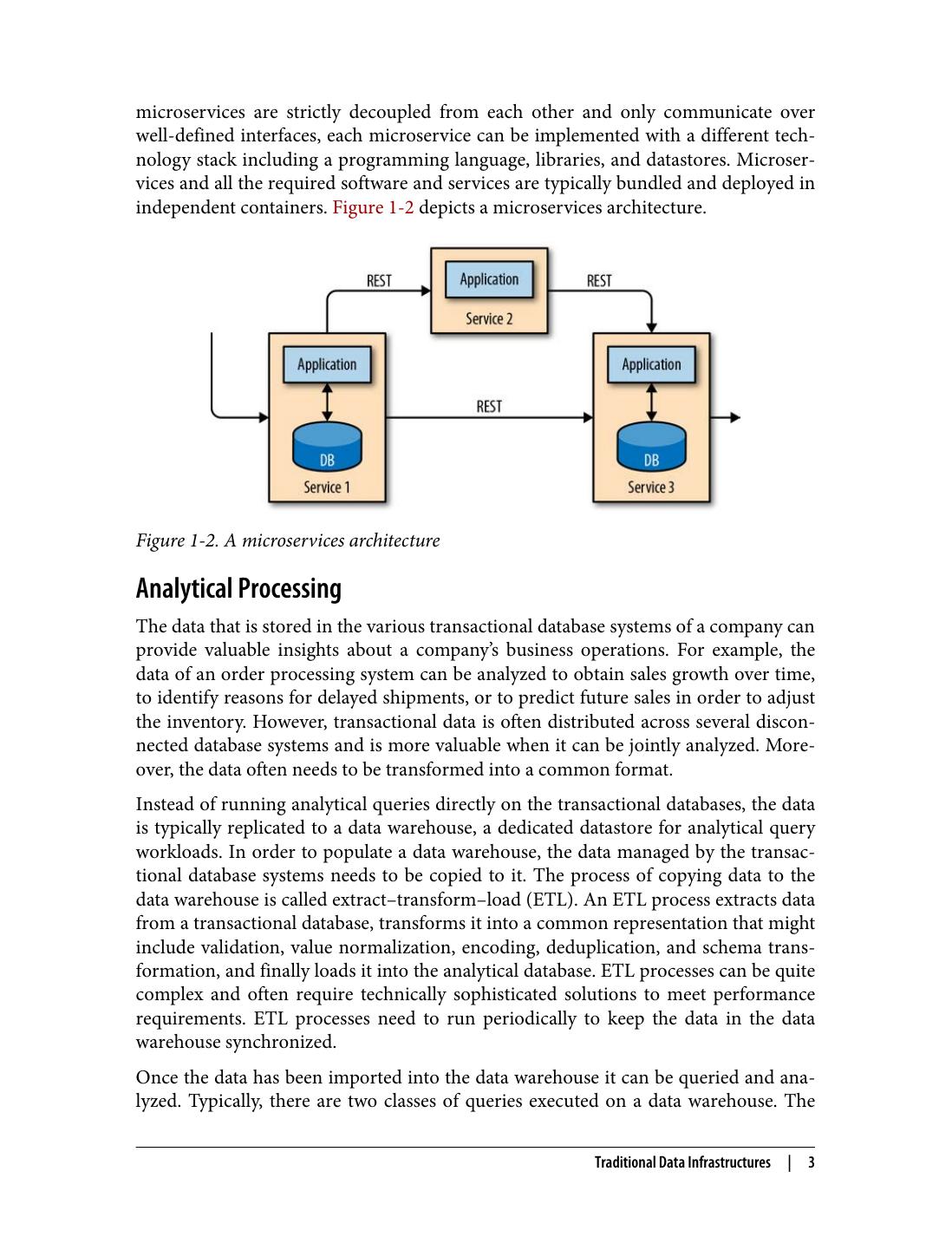

18 .microservices are strictly decoupled from each other and only communicate over well-defined interfaces, each microservice can be implemented with a different tech‐ nology stack including a programming language, libraries, and datastores. Microser‐ vices and all the required software and services are typically bundled and deployed in independent containers. Figure 1-2 depicts a microservices architecture. Figure 1-2. A microservices architecture Analytical Processing The data that is stored in the various transactional database systems of a company can provide valuable insights about a company’s business operations. For example, the data of an order processing system can be analyzed to obtain sales growth over time, to identify reasons for delayed shipments, or to predict future sales in order to adjust the inventory. However, transactional data is often distributed across several discon‐ nected database systems and is more valuable when it can be jointly analyzed. More‐ over, the data often needs to be transformed into a common format. Instead of running analytical queries directly on the transactional databases, the data is typically replicated to a data warehouse, a dedicated datastore for analytical query workloads. In order to populate a data warehouse, the data managed by the transac‐ tional database systems needs to be copied to it. The process of copying data to the data warehouse is called extract–transform–load (ETL). An ETL process extracts data from a transactional database, transforms it into a common representation that might include validation, value normalization, encoding, deduplication, and schema trans‐ formation, and finally loads it into the analytical database. ETL processes can be quite complex and often require technically sophisticated solutions to meet performance requirements. ETL processes need to run periodically to keep the data in the data warehouse synchronized. Once the data has been imported into the data warehouse it can be queried and ana‐ lyzed. Typically, there are two classes of queries executed on a data warehouse. The Traditional Data Infrastructures | 3 

19 .first type are periodic report queries that compute business-relevant statistics such as revenue, user growth, or production output. These metrics are assembled into reports that help the management to assess the business’s overall health. The second type are ad-hoc queries that aim to provide answers to specific questions and support business-critical decisions, for example a query to collect revenue numbers and spending on radio commercials to evaluate the effectiveness of a marketing cam‐ paign. Both kinds of queries are executed by a data warehouse in a batch processing fashion, as shown in Figure 1-3. Figure 1-3. A traditional data warehouse architecture for data analytics Today, components of the Apache Hadoop ecosystem are integral parts in the IT infrastructures of many enterprises. Instead of inserting all data into a relational data‐ base system, significant amounts of data, such as log files, social media, or web click logs, are written into Hadoop’s distributed filesystem (HDFS), S3, or other bulk data‐ stores, like Apache HBase, which provide massive storage capacity at a small cost. Data that resides in such storage systems can be queried with and processed by a SQL-on-Hadoop engine, for example Apache Hive, Apache Drill, or Apache Impala. However, the infrastructure remains basically the same as a traditional data ware‐ house architecture. Stateful Stream Processing Virtually all data is created as continuous streams of events. Think of user interac‐ tions on websites or in mobile apps, placements of orders, server logs, or sensor measurements; all of these are streams of events. In fact, it is difficult to find examples of finite, complete datasets that are generated all at once. Stateful stream processing is an application design pattern for processing unbounded streams of events and is applicable to many different use cases in the IT infrastructure of a company. Before we discuss its use cases, we briefly explain how stateful stream processing works. Any application that processes a stream of events and does not just perform trivial record-at-a-time transformations needs to be stateful, with the ability to store and 4 | Chapter 1: Introduction to Stateful Stream Processing 

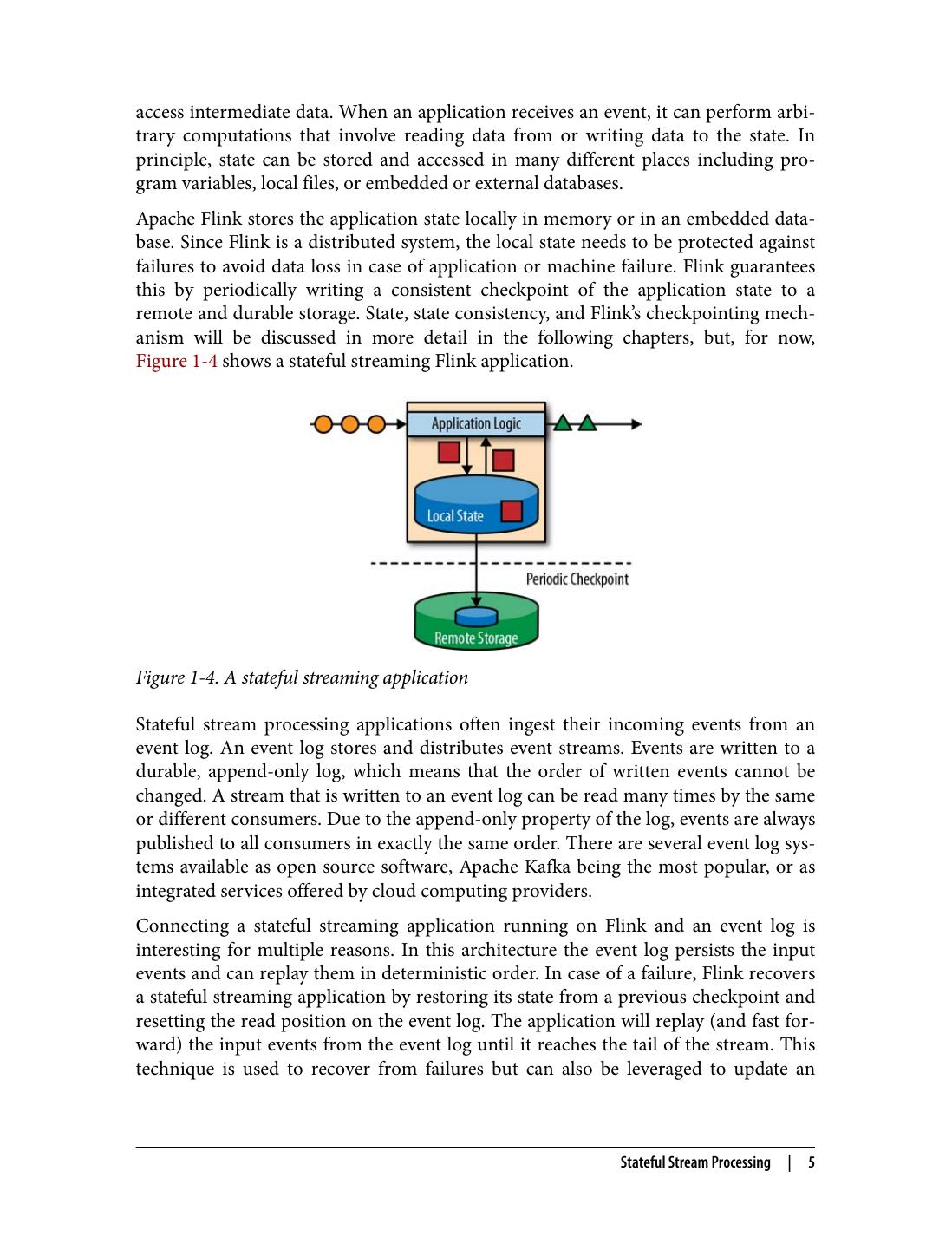

20 .access intermediate data. When an application receives an event, it can perform arbi‐ trary computations that involve reading data from or writing data to the state. In principle, state can be stored and accessed in many different places including pro‐ gram variables, local files, or embedded or external databases. Apache Flink stores the application state locally in memory or in an embedded data‐ base. Since Flink is a distributed system, the local state needs to be protected against failures to avoid data loss in case of application or machine failure. Flink guarantees this by periodically writing a consistent checkpoint of the application state to a remote and durable storage. State, state consistency, and Flink’s checkpointing mech‐ anism will be discussed in more detail in the following chapters, but, for now, Figure 1-4 shows a stateful streaming Flink application. Figure 1-4. A stateful streaming application Stateful stream processing applications often ingest their incoming events from an event log. An event log stores and distributes event streams. Events are written to a durable, append-only log, which means that the order of written events cannot be changed. A stream that is written to an event log can be read many times by the same or different consumers. Due to the append-only property of the log, events are always published to all consumers in exactly the same order. There are several event log sys‐ tems available as open source software, Apache Kafka being the most popular, or as integrated services offered by cloud computing providers. Connecting a stateful streaming application running on Flink and an event log is interesting for multiple reasons. In this architecture the event log persists the input events and can replay them in deterministic order. In case of a failure, Flink recovers a stateful streaming application by restoring its state from a previous checkpoint and resetting the read position on the event log. The application will replay (and fast for‐ ward) the input events from the event log until it reaches the tail of the stream. This technique is used to recover from failures but can also be leveraged to update an Stateful Stream Processing | 5 

21 .application, fix bugs and repair previously emitted results, migrate an application to a different cluster, or perform A/B tests with different application versions. As previously stated, stateful stream processing is a versatile and flexible design archi‐ tecture that can be used for many different use cases. In the following, we present three classes of applications that are commonly implemented using stateful stream processing: (1) event-driven applications, (2) data pipeline applications, and (3) data analytics applications. Real-World Streaming Use-Cases and Deployments If you are interested in learning more about real-world use cases and deployments, check out Apache Flink’s Powered By page and the talk recordings and slide decks of Flink Forward presentations. We describe the classes of applications as distinct patterns to emphasize the versatility of stateful stream processing, but most real-world applications share the properties of more than one class. Event-Driven Applications Event-driven applications are stateful streaming applications that ingest event streams and process the events with application-specific business logic. Depending on the business logic, an event-driven application can trigger actions such as sending an alert or an email or write events to an outgoing event stream to be consumed by another event-driven application. Typical use cases for event-driven applications include: • Real-time recommendations (e.g., for recommending products while customers browse a retailer’s website) • Pattern detection or complex event processing (e.g., for fraud detection in credit card transactions) • Anomaly detection (e.g., to detect attempts to intrude a computer network) Event-driven applications are an evolution of microservices. They communicate via event logs instead of REST calls and hold application data as local state instead of writing it to and reading it from an external datastore, such as a relational database or key-value store. Figure 1-5 shows a service architecture composed of event-driven streaming applications. 6 | Chapter 1: Introduction to Stateful Stream Processing 

22 .Figure 1-5. An event-driven application architecture The applications in Figure 1-5 are connected by event logs. One application emits its output to an event log and another application consumes the events the other appli‐ cation emitted. The event log decouples senders and receivers and provides asynchro‐ nous, nonblocking event transfer. Each application can be stateful and can locally manage its own state without accessing external datastores. Applications can also be individually operated and scaled. Event-driven applications offer several benefits compared to transactional applica‐ tions or microservices. Local state access provides very good performance compared to reading and writing queries against remote datastores. Scaling and fault tolerance are handled by the stream processor, and by leveraging an event log as the input source the complete input of an application is reliably stored and can be deterministi‐ cally replayed. Furthermore, Flink can reset the state of an application to a previous savepoint, making it possible to evolve or rescale an application without losing its state. Event-driven applications have quite high requirements on the stream processor that runs them. Not all stream processors are equally well-suited to run event-driven applications. The expressiveness of the API and the quality of state handling and event-time support determine the business logic that can be implemented and exe‐ cuted. This aspect depends on the APIs of the stream processor, what kinds of state primitives it provides, and the quality of its support for event-time processing. More‐ over, exactly-once state consistency and the ability to scale an application are funda‐ mental requirements for event-driven applications. Apache Flink checks all these boxes and is a very good choice to run this class of applications. Stateful Stream Processing | 7 

23 .Data Pipelines Today’s IT architectures include many different datastores, such as relational and special-purpose database systems, event logs, distributed filesystems, in-memory caches, and search indexes. All of these systems store data in different formats and data structures that provide the best performance for their specific access pattern. It is common that companies store the same data in multiple different systems to improve the performance of data accesses. For example, information for a product that is offered in a webshop can be stored in a transactional database, a web cache, and a search index. Due to this replication of data, the data stores must be kept in sync. A traditional approach to synchronize data in different storage systems is periodic ETL jobs. However, they do not meet the latency requirements for many of today’s use cases. An alternative is to use an event log to distribute updates. The updates are written to and distributed by the event log. Consumers of the log incorporate the updates into the affected data stores. Depending on the use case, the transferred data may need to be normalized, enriched with external data, or aggregated before it is ingested by the target data store. Ingesting, transforming, and inserting data with low latency is another common use case for stateful stream processing applications. This type of application is called a data pipeline. Data pipelines must be able to process large amounts of data in a short time. A stream processor that operates a data pipeline should also feature many source and sink connectors to read data from and write data to various storage sys‐ tems. Again, Flink does all of this. Streaming Analytics ETL jobs periodically import data into a datastore and the data is processed by ad-hoc or scheduled queries. This is batch processing regardless of whether the architecture is based on a data warehouse or components of the Hadoop ecosystem. While period‐ ically loading data into a data analysis system has been the state of the art for many years, it adds considerable latency to the analytics pipeline. Depending on the scheduling intervals it may take hours or days until a data point is included in a report. To some extent, the latency can be reduced by importing data into the datastore with a data pipeline application. However, even with continuous ETL there will always be a delay until an event is processed by a query. While this kind of delay may have been acceptable in the past, applications today must be able to collect data in real-time and immediately act on it (e.g., by adjusting to changing con‐ ditions in a mobile game or by personalizing user experiences for an online retailer). Instead of waiting to be periodically triggered, a streaming analytics application con‐ tinuously ingests streams of events and updates its result by incorporating the latest events with low latency. This is similar to the maintenance techniques database sys‐ 8 | Chapter 1: Introduction to Stateful Stream Processing 

24 .tems use to update materialized views. Typically, streaming applications store their result in an external data store that supports efficient updates, such as a database or key-value store. The live updated results of a streaming analytics application can be used to power dashboard applications as shown in Figure 1-6. Figure 1-6. A streaming analytics application Besides the much shorter time needed for an event to be incorporated into an analyt‐ ics result, there is another, less obvious, advantage of streaming analytics applications. Traditional analytics pipelines consist of several individual components such as an ETL process, a storage system, and in the case of a Hadoop-based environment, a data processor and scheduler to trigger jobs or queries. In contrast, a stream pro‐ cessor that runs a stateful streaming application takes care of all these processing steps, including event ingestion, continuous computation including state mainte‐ nance, and updating the results. Moreover, the stream processor can recover from failures with exactly-once state consistency guarantees and can adjust the compute resources of an application. Stream processors like Flink also support event-time pro‐ cessing to produce correct and deterministic results and the ability to process large amounts of data in little time. Streaming analytics applications are commonly used for: • Monitoring the quality of cellphone networks • Analyzing user behavior in mobile applications • Ad-hoc analysis of live data in consumer technology Although we don’t cover it here, Flink also provides support for analytical SQL quer‐ ies over streams. The Evolution of Open Source Stream Processing Data stream processing is not a novel technology. Some of the first research proto‐ types and commercial products date back to the late 1990s. However, the growing adoption of stream processing technology in the recent past has been driven to a large extent by the availability of mature open source stream processors. Today, dis‐ tributed open source stream processors power business-critical applications in many The Evolution of Open Source Stream Processing | 9 

25 .enterprises across different industries such as (online) retail, social media, telecom‐ munication, gaming, and banking. Open source software is a major driver of this trend, mainly due to two reasons: 1. Open source stream processing software is a commodity that everybody can eval‐ uate and use. 2. Scalable stream processing technology is rapidly maturing and evolving due to the efforts of many open source communities. The Apache Software Foundation alone is the home of more than a dozen projects related to stream processing. New distributed stream processing projects are continu‐ ously entering the open source stage and are challenging the state of the art with new features and capabilities. Open source communities are constantly improving the capabilities of their projects and are pushing the technical boundaries of stream pro‐ cessing. We will take a brief look into the past to see where open source stream pro‐ cessing came from and where it is today. A Bit of History The first generation of distributed open source stream processors (2011) focused on event processing with millisecond latencies and provided guarantees against loss of events in the case of failures. These systems had rather low-level APIs and did not provide built-in support for accurate and consistent results of streaming applications because the results depended on the timing and order of arriving events. Moreover, even though events were not lost, they could be processed more than once. In con‐ trast to batch processors, the first open source stream processors traded result accu‐ racy for better latency. The observation that data processing systems (at this point in time) could either provide fast or accurate results led to the design of the so-called lambda architecture, which is depicted in Figure 1-7. Figure 1-7. The lambda architecture The lambda architecture augments the traditional periodic batch processing architec‐ ture with a speed layer that is powered by a low-latency stream processor. Data arriv‐ ing at the lambda architecture is ingested by the stream processor and also written to 10 | Chapter 1: Introduction to Stateful Stream Processing 

26 .batch storage. The stream processor computes approximated results in near real time and writes them into a speed table. The batch processor periodically processes the data in batch storage, writes the exact results into a batch table, and drops the corre‐ sponding inaccurate results from the speed table. Applications consume the results by merging approximated results from the speed table and the accurate results from the batch table. The lambda architecture is no longer state of the art, but is still used in many places. The original goals of this architecture were to improve the high result latency of the original batch analytics architecture. However, it has a few notable drawbacks. First of all, it requires two semantically equivalent implementations of the application logic for two separate processing systems with different APIs. Second, the results compu‐ ted by the stream processor are only approximate. Third, the lambda architecture is hard to set up and maintain. Improving on the first generation, the next generation of distributed open source stream processors (2013) provided better failure guarantees and ensured that in case of a failure each input record affects the result exactly once. In addition, program‐ ming APIs evolved from rather low-level operator interfaces to high-level APIs with more built-in primitives. However, some improvements such as higher throughput and better failure guarantees came at the cost of increasing processing latencies from milliseconds to seconds. Moreover, results were still dependent on timing and order of arriving events. The third generation of distributed open source stream processors (2015) addressed the dependency of results on the timing and order of arriving events. In combination with exactly-once failure semantics, systems of this generation are the first open source stream processors capable of computing consistent and accurate results. By only computing results based on actual data, these systems are also able to process historical data in the same way as “live” data. Another improvement was the dissolu‐ tion of the latency/throughput tradeoff. While previous stream processors only pro‐ vide either high throughput or low latency, systems of the third generation are able to serve both ends of the spectrum. Stream processors of this generation made the lambda architecture obsolete. In addition to the system properties discussed so far, such as failure tolerance, perfor‐ mance, and result accuracy, stream processors have also continuously added new operational features such as highly available setups, tight integration with resource managers, such as YARN or Kubernetes, and the ability to dynamically scale stream‐ ing applications. Other features include support to upgrade application code or migrate a job to a different cluster or a new version of the stream processor without losing the current state. The Evolution of Open Source Stream Processing | 11 

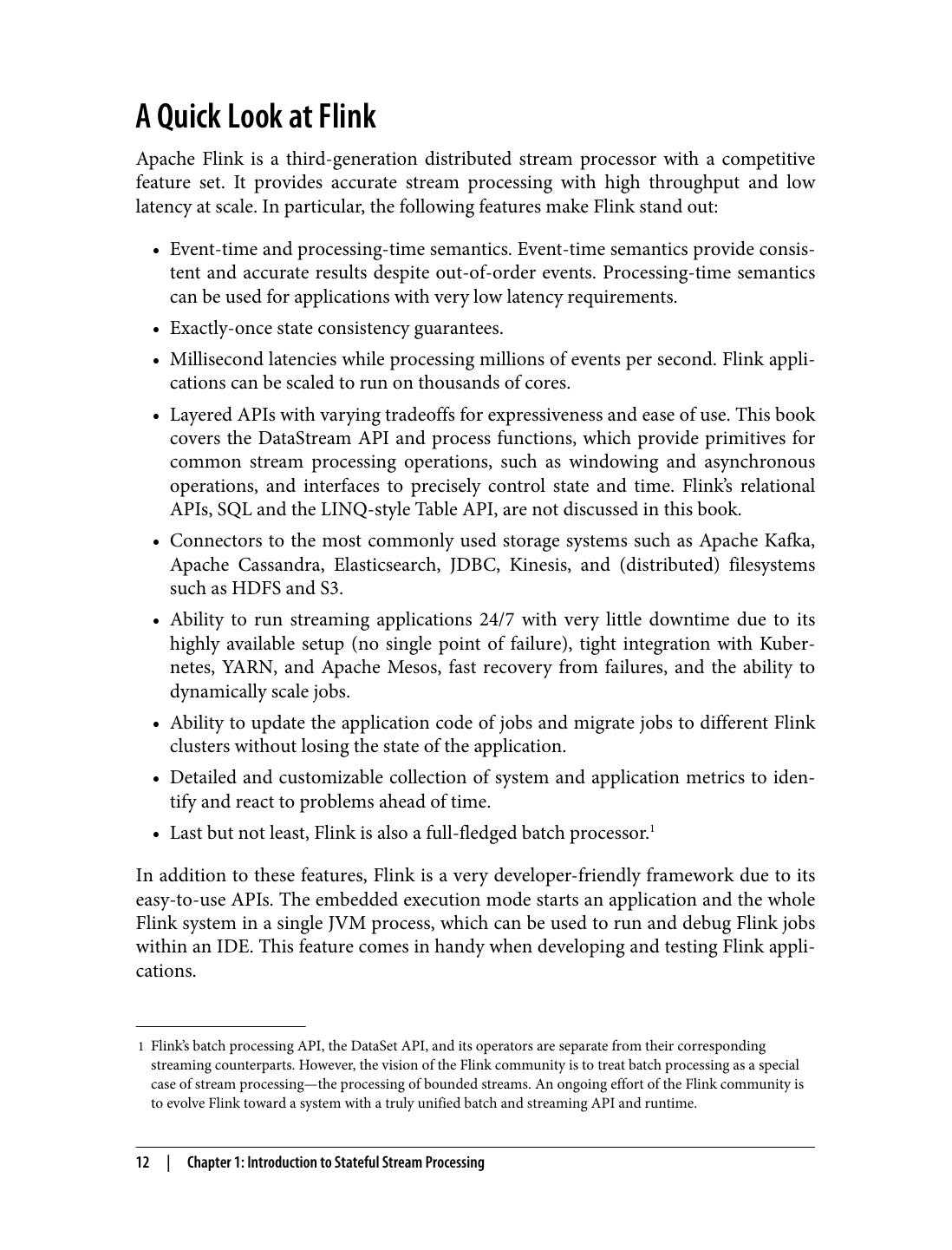

27 .A Quick Look at Flink Apache Flink is a third-generation distributed stream processor with a competitive feature set. It provides accurate stream processing with high throughput and low latency at scale. In particular, the following features make Flink stand out: • Event-time and processing-time semantics. Event-time semantics provide consis‐ tent and accurate results despite out-of-order events. Processing-time semantics can be used for applications with very low latency requirements. • Exactly-once state consistency guarantees. • Millisecond latencies while processing millions of events per second. Flink appli‐ cations can be scaled to run on thousands of cores. • Layered APIs with varying tradeoffs for expressiveness and ease of use. This book covers the DataStream API and process functions, which provide primitives for common stream processing operations, such as windowing and asynchronous operations, and interfaces to precisely control state and time. Flink’s relational APIs, SQL and the LINQ-style Table API, are not discussed in this book. • Connectors to the most commonly used storage systems such as Apache Kafka, Apache Cassandra, Elasticsearch, JDBC, Kinesis, and (distributed) filesystems such as HDFS and S3. • Ability to run streaming applications 24/7 with very little downtime due to its highly available setup (no single point of failure), tight integration with Kuber‐ netes, YARN, and Apache Mesos, fast recovery from failures, and the ability to dynamically scale jobs. • Ability to update the application code of jobs and migrate jobs to different Flink clusters without losing the state of the application. • Detailed and customizable collection of system and application metrics to iden‐ tify and react to problems ahead of time. • Last but not least, Flink is also a full-fledged batch processor.1 In addition to these features, Flink is a very developer-friendly framework due to its easy-to-use APIs. The embedded execution mode starts an application and the whole Flink system in a single JVM process, which can be used to run and debug Flink jobs within an IDE. This feature comes in handy when developing and testing Flink appli‐ cations. 1 Flink’s batch processing API, the DataSet API, and its operators are separate from their corresponding streaming counterparts. However, the vision of the Flink community is to treat batch processing as a special case of stream processing—the processing of bounded streams. An ongoing effort of the Flink community is to evolve Flink toward a system with a truly unified batch and streaming API and runtime. 12 | Chapter 1: Introduction to Stateful Stream Processing 

28 .Running Your First Flink Application In the following, we will guide you through the process of starting a local cluster and executing a streaming application to give you a first look at Flink. The application we are going to run converts and aggregates randomly generated temperature sensor readings by time. For this example, your system needs Java 8 installed. We describe the steps for a UNIX environment, but if you are running Windows, we recommend setting up a virtual machine with Linux, Cygwin (a Linux environment for Win‐ dows), or the Windows Subsystem for Linux, introduced with Windows 10. The fol‐ lowing steps show you how to start a local Flink cluster and submit an application for execution. 1. Go to the Apache Flink webpage and download the Hadoop-free binary distribu‐ tion of Apache Flink 1.7.1 for Scala 2.12. 2. Extract the archive file: $ tar xvfz flink-1.7.1-bin-scala_2.12.tgz 3. Start a local Flink cluster: $ cd flink-1.7.1 $ ./bin/start-cluster.sh Starting cluster. Starting standalonesession daemon on host xxx. Starting taskexecutor daemon on host xxx. 4. Open Flink’s Web UI by entering the URL http://localhost:8081 in your browser. As shown in Figure 1-8, you will see some statistics about the local Flink cluster you just started. It will show that a single TaskManager (Flink’s worker processes) is connected and that a single task slot (resource units provided by a TaskManager) is available. Figure 1-8. Screenshot of Apache Flink’s web dashboard showing the overview A Quick Look at Flink | 13 

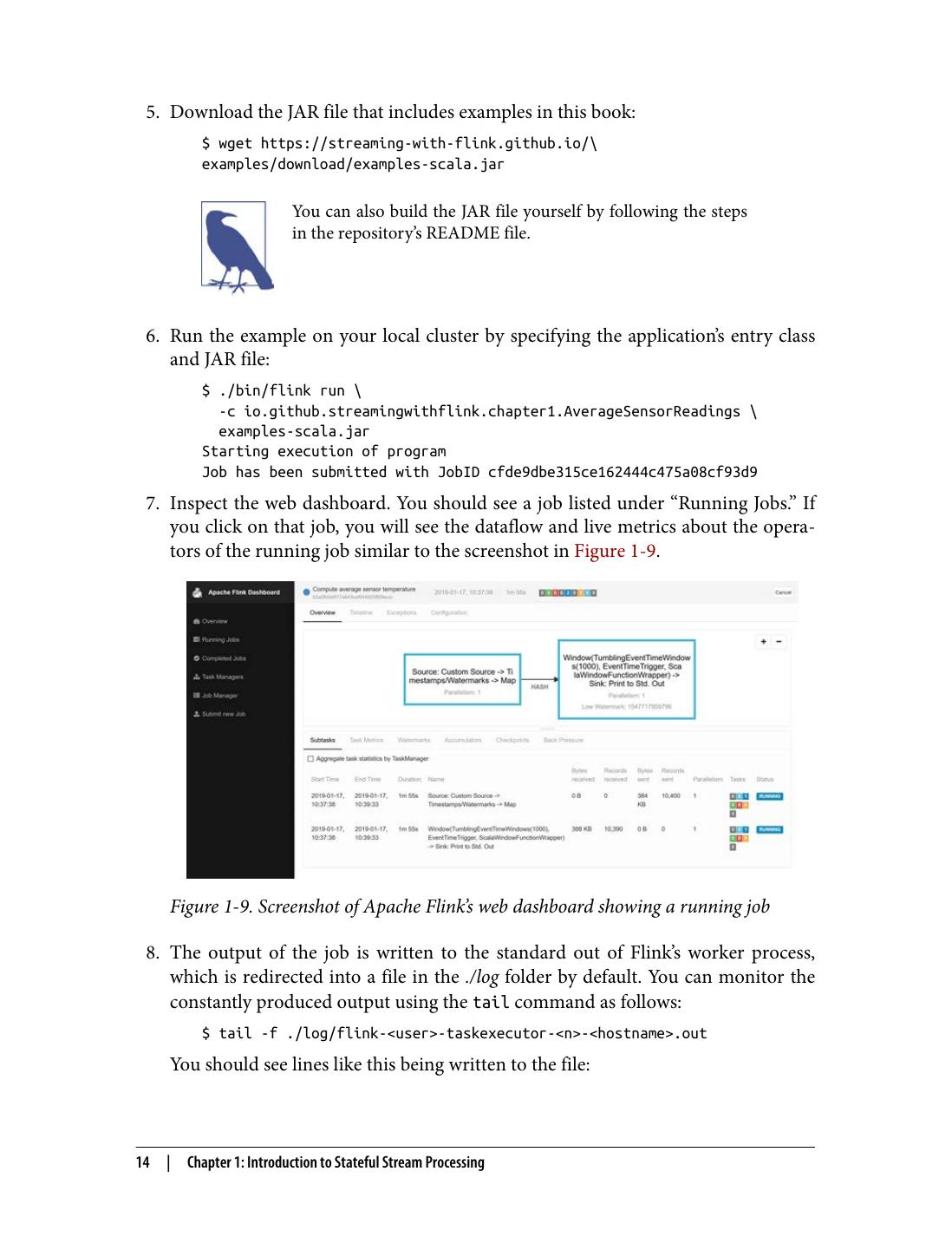

29 . 5. Download the JAR file that includes examples in this book: $ wget https://streaming-with-flink.github.io/\ examples/download/examples-scala.jar You can also build the JAR file yourself by following the steps in the repository’s README file. 6. Run the example on your local cluster by specifying the application’s entry class and JAR file: $ ./bin/flink run \ -c io.github.streamingwithflink.chapter1.AverageSensorReadings \ examples-scala.jar Starting execution of program Job has been submitted with JobID cfde9dbe315ce162444c475a08cf93d9 7. Inspect the web dashboard. You should see a job listed under “Running Jobs.” If you click on that job, you will see the dataflow and live metrics about the opera‐ tors of the running job similar to the screenshot in Figure 1-9. Figure 1-9. Screenshot of Apache Flink’s web dashboard showing a running job 8. The output of the job is written to the standard out of Flink’s worker process, which is redirected into a file in the ./log folder by default. You can monitor the constantly produced output using the tail command as follows: $ tail -f ./log/flink-<user>-taskexecutor-<n>-<hostname>.out You should see lines like this being written to the file: 14 | Chapter 1: Introduction to Stateful Stream Processing
