20190622 Alluxio在京东的最佳实践

毛宝龙(京东技术与数据中台的架构师,Alluxio项目PMC)于6月22日Alluxio 北京meetup上的技术报告,探讨JD在过去两年中生产环境里使用Presto/Alluxio这一软件处理栈的最佳实践。 毛宝龙将介绍京东的数据中台里对Presto on Alluxio这一日趋流行的SQL处理栈的最佳实践,以及对Alluxio最新功能的贡献和探索。

1. The Practice of Alluxio in JD.COM

2.毛 宝龙 ,京东 大数据存储相关负责人,主要 负责 JDHDFS 、 JDAlluxio 、 JDCeph 、 JDJDK 、 JDKernel 等组件。 主导构建京东万台规模大数据分布式文件存储。 热爱开源 ,并积极投入开源社区 。 Alluxio PMC Hadoop contributor 。 About me

3.Contents A short Introduction Alluxio introduction 01 Introduce how to build when you modify your Alluxio or hadoop Build your Alluxio on your hadoop 02 Cache the job container log Using Alluxio accelerate JobHistory 03 10x performance improvement Using Alluxio accelerate JDPresto 04 some of the features contributed by JD JD Contribution 05 Expectation of Alluxio & Future plan Alluxio Future 06

4.Alluxio introduction 1

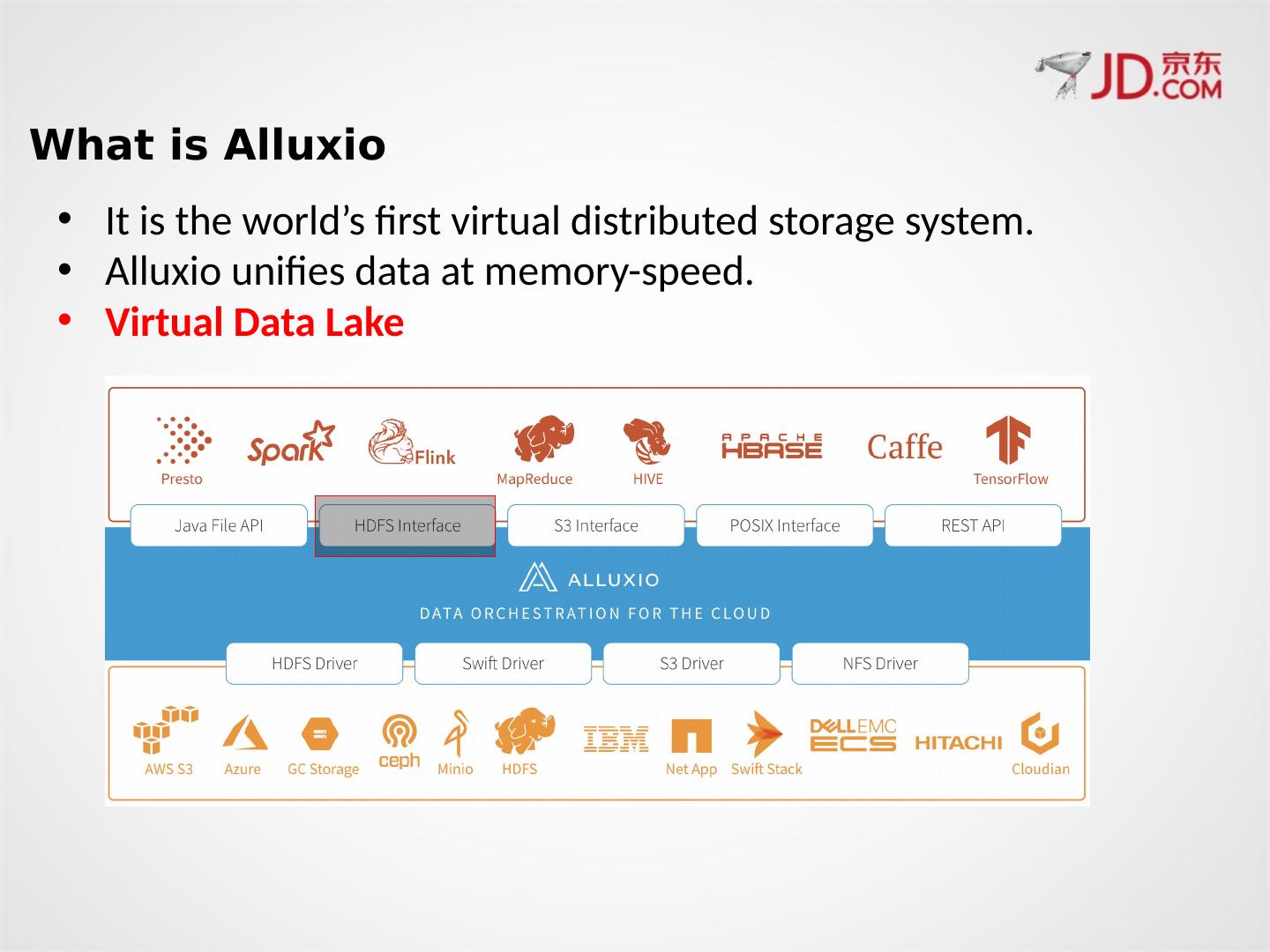

5.It is the world’s first virtual distributed storage system . Alluxio unifies data at memory-speed. Virtual Data Lake Apps only talk to Alluxio Simple Add/Remove No App Changes Highest performance in Memory Apps only talk to Alluxio Simple Add/Remove No App Changes Highest performance in Memory Apps only talk to Alluxio Simple Add/Remove No App Changes Highest performance in Memory Apps only talk to Alluxio Simple Add/Remove No App Changes Highest performance in Memory Apps only talk to Alluxio Simple Add/Remove No App Changes Highest performance in Memory What is Alluxio

6.Application interface  Apache Spark、 Presto 、Tensorflow Apache Hbase Apache Hive or Apache Flink Storage interface Amazon S3 、Google Cloud Storage、OpenStack Swift GlusterFS、 HDFS (Various version ) IBM Cleversafe、EMC ECS Ceph 、NFS 和 Alibaba OSS Alluxio is a bridge

7.Powered by alluxio https ://www.alluxio.io/powered-by-alluxio/ Today, Alluxio is deployed in production by  hundreds of organizations  with the largest deployment exceeding 1,500 nodes.

8.Alluxio is one of the fastest growing open source projects that has attracted more than  1000 contributors  from over 300 institutions including   Alibaba ,  Alluxio ,  Baidu ,  JD.COM , CMU ,  Google ,  IBM ,  Intel ,  NJU ,  Red Hat ,  Tencent ,  UC Berkeley , and  Yahoo . Active Open Source Comunity

9.Build your Alluxio on your hadoop 2

10.Why build? How to build? XX Alluxio or XX Hadoop mvn   install   - Pdist,native - DskipTests =true     - Dmaven.javadoc.skip =true   - Drequire.snappy - Dsnappy.prefix =/data0/snappy/   - Dcontainer-executor.conf.dir =/ etc /yarn-executor/   - Dtar mvn -T 4C clean install -Phadoop-2 - Dhadoop.version =2.7.1 - DskipTests - Dlicense.skip =true - Dfindbugs.skip - Dmaven.javadoc.skip - Dcheckstyle.skip ; dev/scripts/generate- tarballs - ufs -modules=all release

11.Using Alluxio accelerate JobHistory 3

12.Mount job container logs HDFS URL to Alluxio fs $ alluxio fs mount --option alluxio.underfs.hdfs.configuration =/ xxx /servers/alluxio-2.0.0/ hadoop-conf / cluster1 / hadoop / hdfs-site.xml --option alluxio.underfs.version =2.7 / tmp /app-logs/ hdfs ://ns19/ tmp /app-logs/ Put alluxio client package into the jobhistory classpath . cp alluxio-core-client-hdfs-2.0.0-SNAPSHOT.jar hadoop-2.7.1/share/ hadoop / hdfs / How to let JobHistory use Alluxio

13.Config Jobhistory Hdfs-site.xml < property> < name> fs.alluxio.impl </name> <value> alluxio.hadoop.FileSystem </value> </ property> < property> <name> fs.alluxio-ft.impl </name> < value> alluxio.hadoop.FaultTolerantFileSystem </value > </ property> <property> < name> fs.AbstractFileSystem.alluxio.impl </name> <value> alluxio.hadoop.AlluxioFileSystem </value> </ property > How to let JobHistory use Alluxio yarn- site.xml <property> <name> yarn.nodemanager.remote -app-log- dir </name> < value> alluxio :// hostname :19998/ tmp /app-logs </value > </ property>

14.JobHistory using Alluxio show

15.JobHistory using Alluxio show

16.Using Alluxio accelerate JDPresto 4


18.Higher query throughput Consistent low query latency Eliminates network traffic Presto + Alluxio = better together

19.Alluxio led to 10x performance improvement 100+ nodes More than 2.5 year. JDPresto on Alluxio advantage When we use Alluxio for JDPresto , we make some changes and bring some good features P luggable F ault-tolerant Locality Alluxio can be online or updated at any time When Alluxio unable to access , JDPresto can access HDFS directly. Reduce the remote read Presto on Alluxio

20.Locality Isolation l oad once use every time ≈ ç After Before Presto on Alluxio

21.Presto HDFS Alluxio Access Alluxio exception Access HDFS directly Read HDFS Data Cache to Alluxio Read Alluxio Presto on Alluxio

22.Presto on Alluxio

23.Presto on Alluxio

24.Speed C ontrast Presto on Alluxio

25.JD Contribution 5

26.Review Alluxio Architecture

27.Watermark Evict Strategy Sync Evit Strategy Async Evit Strategy

28.Alluxio Cache Consistency(1)

29.Alluxio Cache Consistency(2) Keep Alluxio & HDFS Consistency To ensure that dirty data is not read. There are three ways to trigger file consistency check . RPC API RESTful API Alluxio Master startup Client request metadata by getFileId , getFileInfo , listStatus , etc Alluxio master will check file cache consistency calling reloadMetaData to trigger Alluxio to reload all metadata check file cache consistency while master start up
